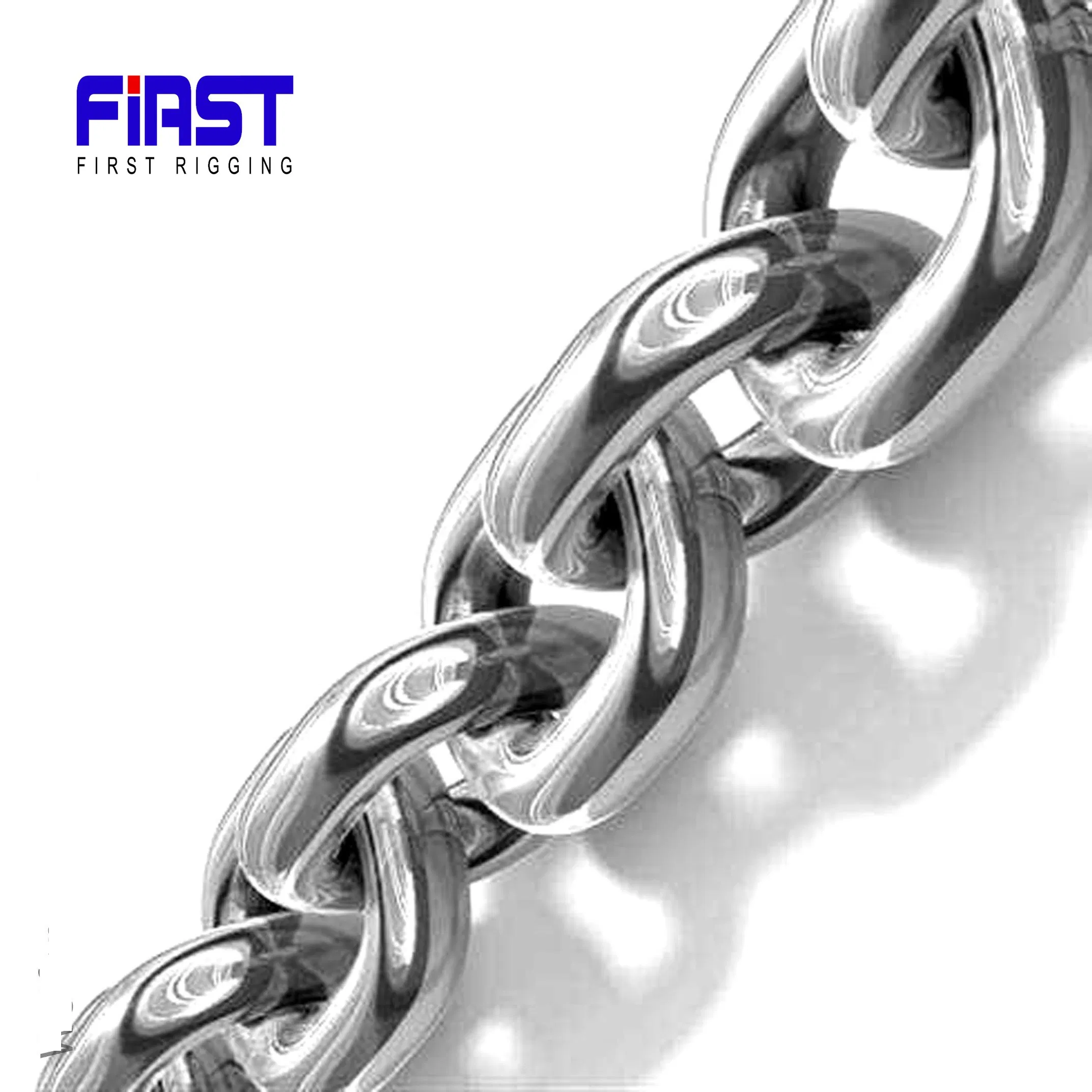

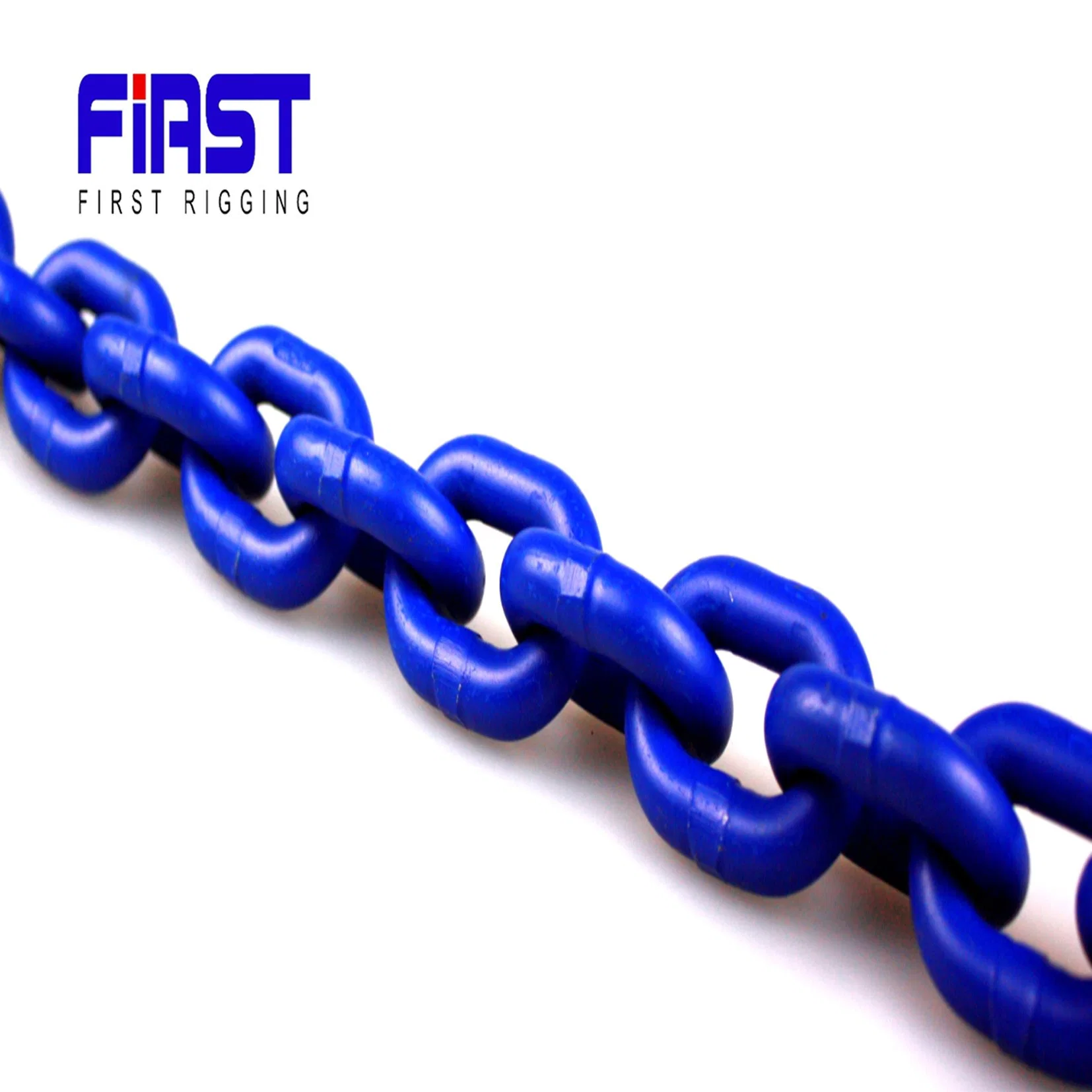

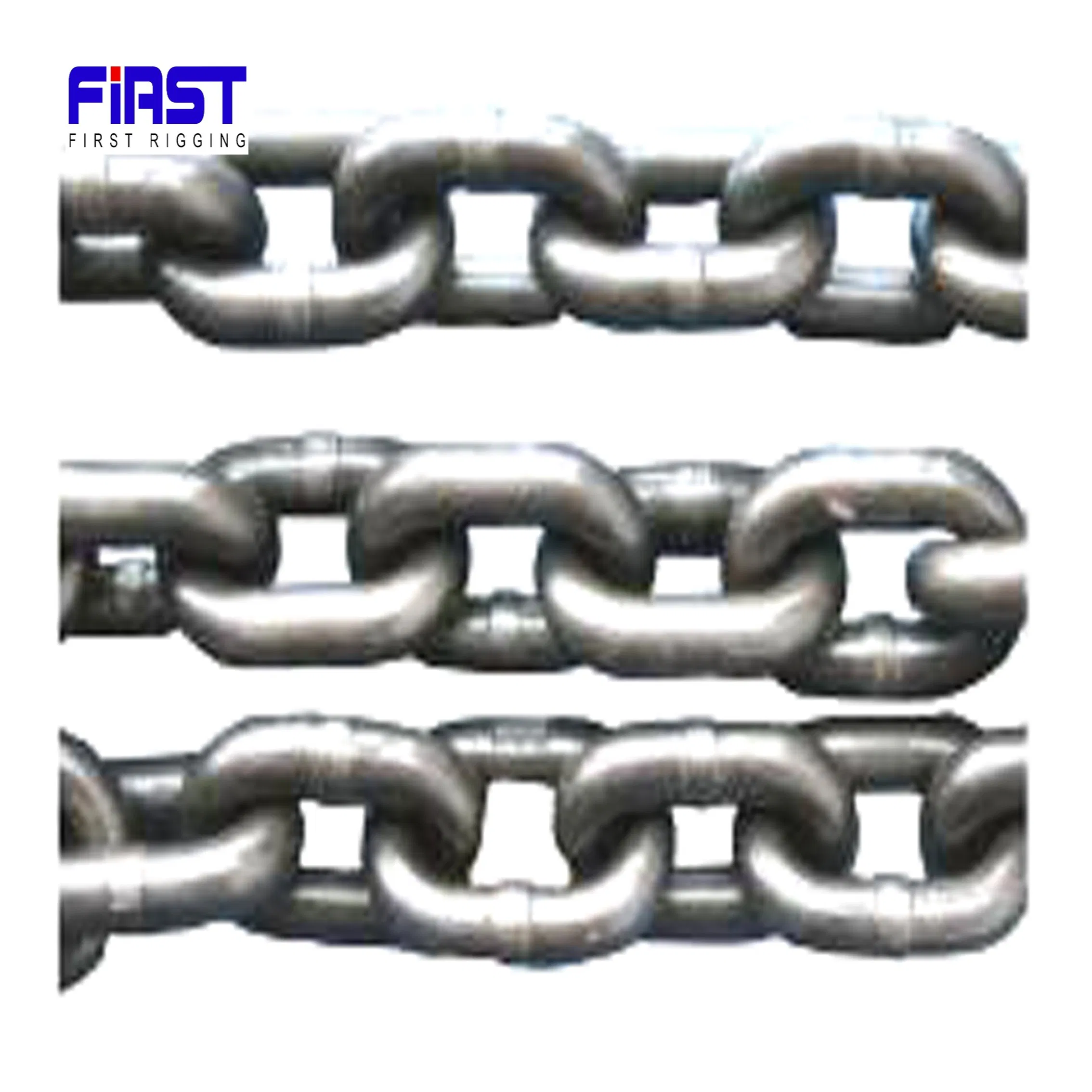

13mm G80 Round Chain for Lifting Equipment
Product ParametersHigh Strength G80 Lifting Chain:NameHigh Strength G80 Lifting Chain:Size6mm-42mmMaterialAlloy steel, high tensile, heat treated.Surface treatmentGalvanized, Black painted, Self color, Polishing, Powder coatedColorSelf color, Red , grey, green, as to your requestStrength levelGrade ......
Send Inquiry
Product Description
High Strength G80 Lifting Chain:
| Name | High Strength G80 Lifting Chain: | |
| Size | 6mm-42mm | |
Material | Alloy steel, high tensile, heat treated. | |

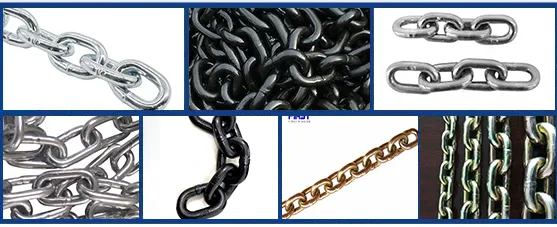

Surface treatment | Galvanized, Black painted, Self color, Polishing, Powder coated | |
| Color | Self color, Red , grey, green, as to your request | |
Strength level | Grade 80 | |
| Application | Ship, iron and steel industry, petroleum chemical industry, coal mine | |
The product has passed the environmental management system certification, and can handle the product certification of well-known classification societies such as CCS, LR, DNV, etc. The product has high strength, light weight, exquisite design, strong versatility, diverse functions, and convenient safety inspection
Scale and Parameters :
| Size (mm) diameter* inseam length | Min inside width(mm) | Max outside width(mm) | Weight(kg/m) | Working load(KN) | Test load(KN) | Broken load(KN) |
| 6*18 | 7.5 | 21 | 0.79 | 11 | 27 | 45.2 |
| 7*21 | 9 | 24.5 | 1.07 | 15 | 37 | 61.6 |
| 8*24 | 10 | 28 | 1.38 | 20 | 48 | 80.4 |
| 9*27 | 11.5 | 30 | 1.9 | 24.5 | 61 | 102 |
| 10*30 | 12.5 | 35 | 2.2 | 32 | 76 | 125 |
| 12*36 | 15.5 | 42.2 | 3.3 | 49 | 117 | 196 |
| 13*39 | 16.3 | 46 | 3.8 | 50 | 128 | 214 |
| 14*42 | 18 | 49 | 4.13 | 63 | 150 | 250 |
| 16*48 | 20 | 56 | 5.63 | 80 | 192 | 320 |
| 18*54 | 23 | 63 | 6.85 | 100 | 246 | 410 |
| 20*60 | 25 | 70 | 8.6 | 125 | 300 | 500 |
| 22*66 | 28 | 77 | 10.5 | 153 | 366 | 610 |
| 24*72 | 32 | 82 | 12.78 | 180 | 432 | 720 |
| 26*78 | 35 | 91 | 14.87 | 213 | 510 | 650 |
| 30*90 | 38 | 105 | 19.6 | 283 | 678 | 1130 |
| 32*96 | 40 | 106 | 22.29 | 322 | 772 | 1289 |
| 34*102 | 46.5 | 121.5 | 25.5 | 363 | 870 | 1450 |
| 36*108 | 49.5 | 128.5 | 31 | 407 | 978 | 1630 |
| 38*114 | 52 | 136 | 32 | 453 | 1086 | 1810 |
| 42*126 | 55.5 | 144.5 | 38.6 | 554 | 1332 | 2200 |
Advantages:
1.Rich experience for international business
2.Prompt delivery
3.Quality control
4.Small orders are acceptable
5.Strong ability for R&D.
"Soliciting clients in earnest, Win reputation by quality."For a long time, we attach great importance to the friendly cooperation with customers, ensure quality and service, cherish the honor, so as to win the trust and support of customers.Extensive cooperation with friends, sharing prosperity, has become our most sincere pursuit.

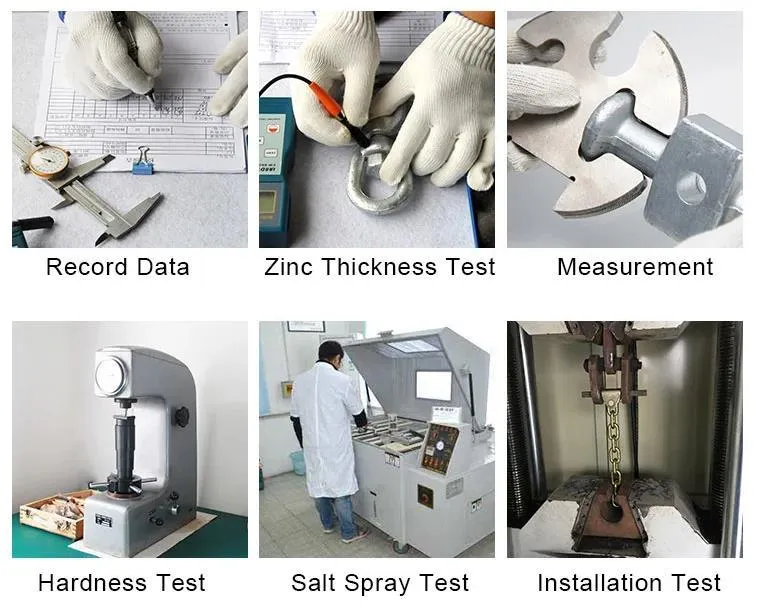

Quality Assurance & Inspection
We guarantee the quality,not just because we have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake, but also we attach much importance to customers' satisfactory of product quality. What's more, Mill Test Certificate can be provided for general products, and most of our products are approved by CCS, ABS, DNV, BV, NKK, KR, LR, GL, RINA etc.
1) What is the MIN order quantity ?
It depends on the product, usually 10 meters.
2)What is the delivery time?
15-20 works days since received the deposit.
3)What is the Payment term?
A. 40% TT deposit, the balance before shipment.
B. Irrevocable L/C at sight.
C. Other payment can be negotiated.
4)Could I get free samples before first cooperation?
Yes, of course! But the buyer need to afford express fee, which is returnable once we build cooperation.

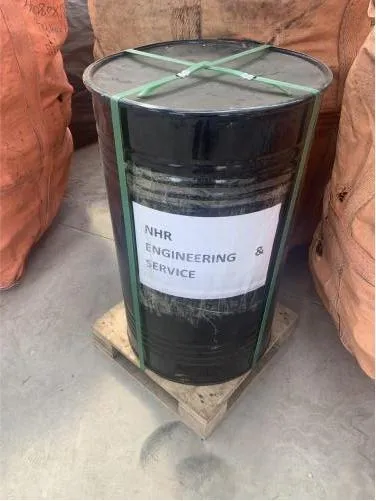

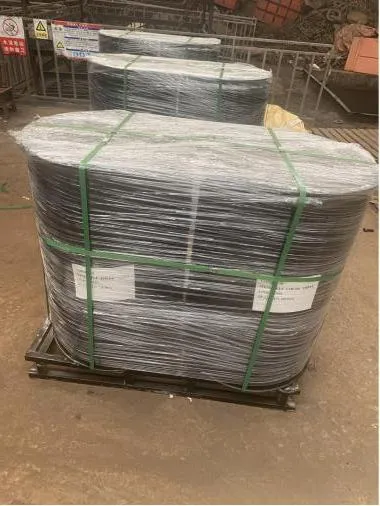

Special packages are available upon customers'need. You can contact us for special or more detailed packages.
