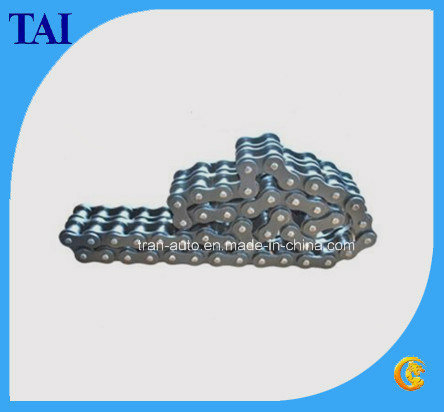

B Series Short Pitch Steel Roller Chain ( 08B , 10B, 12B)
B Series Short Pitch Steel Roller Chain(08B,10B,12B)Pack Detail:Company Detail:TAI is one of a professional exporter with exporting POWER TRANSMISSION PARTS: Roller chains,Conveyor Chains, agricultural chains, Steel detachable chains, Special chains, Sprockets, s. S. Sprockets, HRC couplings, Pulley......
Send Inquiry
Product Description
B Series Short Pitch Steel Roller Chain(08B,10B,12B)
Pack Detail:
Company Detail:
TAI is one of a professional exporter with exporting POWER TRANSMISSION PARTS: Roller chains,Conveyor Chains, agricultural chains, Steel detachable chains, Special chains, Sprockets, s. S. Sprockets, HRC couplings, Pulleys, Bushes etc. All these products have been supplied regularly to World Wide for over 15 years. Welcome contact for more detail.
Ava Gao(Sales)
Tran-Auto Industries Co.,Limited
716 Gold River Center,NO.88 Shishan Rd.,
New District,Suzhou,P.R.China.P.C.:215011
Tel:0086-512-65830037/15862544283
Fax:0086-512-65529992
tran-auto.en.made-in-china.com
Pack Detail:
Company Detail:
TAI is one of a professional exporter with exporting POWER TRANSMISSION PARTS: Roller chains,Conveyor Chains, agricultural chains, Steel detachable chains, Special chains, Sprockets, s. S. Sprockets, HRC couplings, Pulleys, Bushes etc. All these products have been supplied regularly to World Wide for over 15 years.
Ava Gao(Sales)
Tran-Auto Industries Co.,Limited
716 Gold River Center,NO.88 Shishan Rd.,
New District,Suzhou,P.R.China.P.C.:215011
Tel:0086-512-65830037/15862544283
Fax:0086-512-65529992
tran-auto.en.made-in-china.com

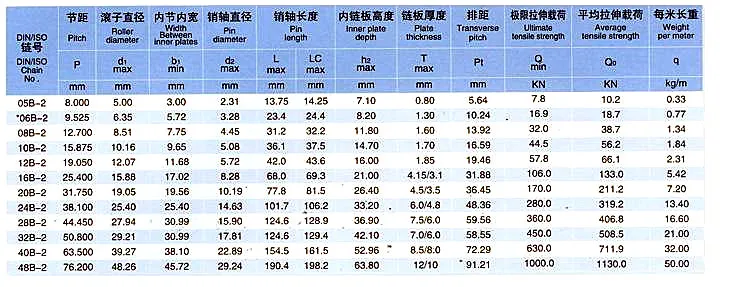

| DIN/ISO DIN/ISO Chain No. | ANSI ANSI Chain No. | Pitch | Roller Diameter | Width Between Inner Plates | Pin Diameter | Pin Length | Inner Plate depth | Plate thick ness | Transverse Pitch | Ultimate Tensile Strength | Average Tensile Strength | Weight Per Meter | ||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Pt | Q min | Q0 | q. | |||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/LB | kN | Kg/m | |||
| *04C-2 | *25-2 | 6.350 | 3.30 | 3.18 | 2.31 | 14.5 | 15.0 | 6.00 | 0.80 | 6.40 | 7.00/1591 | 8.6 | 0.28 | |
| *06C-2 | *35-2 | 9.525 | 5.08 | 4.77 | 3.60 | 22.50 | 23.3 | 9.00 | 1.30 | 10.13 | 15.80/3591 | 19.7 | 0.63 | |
| 085-2 | 41-2 | 12.700 | 7.77 | 6.25 | 3.60 | 25.70 | 26.9 | 9.91 | 1.30 | 11.95 | 13.34/3032 | 16.9 | 0.81 | |
| 08A-2 | 40-2 | 12.700 | 7.92 | 7.85 | 3.98 | 31.0 | 32.2 | 12.0 | 1.50 | 14.38 | 28.20/6409 | 35.9 | 1.12 | |
| 10A-2 | 50-2 | 15.875 | 10.16 | 9.40 | 5.09 | 38.90 | 40.4 | 15.09 | 2.03 | 18.11 | 44.40/10091 | 58.1 | 2.00 | |
| 12A-2 | 60-2 | 19.050 | 11.91 | 12.57 | 5.96 | 48.80 | 50.5 | 18.00 | 2.42 | 22.78 | 63.60/14455 | 82.1 | 2.92 | |
| 16A-2 | 80-2 | 25.400 | 15.88 | 15.75 | 7.94 | 62.70 | 64.3 | 24.00 | 3.25 | 29.29 | 113.40/25773 | 141.8 | 5.15 | |
| 20A-2 | 100-2 | 31.750 | 19.05 | 18.90 | 9.51 | 76.40 | 80.5 | 30.00 | 4.00 | 35.76 | 177.00/40227 | 219.4 | 7.80 | |
| 24A-2 | 120-2 | 38.100 | 22.23 | 25.22 | 11.11 | 95.80 | 99.7 | 35.70 | 4.80 | 45.44 | 254.00/57727 | 314.9 | 11.7 | |
| 28A-2 | 140-2 | 44.450 | 25.40 | 25.22 | 12.71 | 103.3 | 107.9 | 41.00 | 5.60 | 48.87 | 344.80/78364 | 427.5 | 15.14 | |
| 32A-2 | 160-2 | 50.800 | 28.58 | 31.55 | 14.29 | 123.3 | 128.1 | 47.80 | 6.40 | 58.55 | 453.6/103091 | 562.4 | 20.14 | |
| 36A-2 | 180-2 | 57.150 | 35.71 | 35.48 | 17.46 | 138.6 | 144.4 | 53.60 | 7.20 | 65.84 | 560.5/127386 | 695.0 | 29.22 | |
| 40A-2 | 200-2 | 63.500 | 39.68 | 37.85 | 19.85 | 151.9 | 158.8 | 60.00 | 8.00 | 71.55 | 707.60/160818 | 877.4 | 45.23 | |
| 48A-2 | 240-2 | 76.200 | 47.63 | 47.35 | 23.81 | 183.4 | 190.8 | 72.39 | 9.50 | 87.83 | 1020.60/213955 | 1255.3 | ||
*Bushing chain: d1 in the table indicate the external diameter of bushing | ||||||||||||||
