China Bulk 13mm 16mm 19mm Black Hardened Metal Cast Iron G80 Lifting Chain Industrial G I Lashing Chain

Product Description

Specification:

Ordinary mild steel link chain

SHORT LINK CHAIN:

Link Specification				Test Load	Breaking Load	Net WT Per 200FT (KG)
D		L	W	Test Load	Breaking Load	Net WT Per 200FT (KG)
IN	MM	MM	MM	KG	KG	B.F	H.D.G
1/8	3.20	16	12	200	400	11.40	11.74
5/32	4.00	18.5	14.5	300	600	18.60	19.00
3/16	4.70	19	17	400	800	26.20	27.00
7/32	5.50	20	19	550	1100	36.80	38.00
1/4	6.35	22	21	750	1500	50.00	51.50
5/16	7.94	26.5	27.2	1200	2400	80.00	82.40
3/8	9.50	30	32	1700	3400	122.00	125.70
7/16	11.11	34	36	2300	4600	164.00	169.00
1/2	12.70	39	43	3000	6000	210.00	216.00
5/8	15.80	45	53	4700	9400	334.00	344.00
3/4	19.00	55	63	6800	13600	485.00	499.00
7/8	22.20	64	74	9250	18500	656.00	675.00
1	25.40	73	84	12150	24300	870.00	896.00

MEDIUM LINK CHAIN:

Link Specification				Test Load	Breaking Load	Net WT Per 200FT (KG)
D		L	W	Test Load	Breaking Load	Net WT Per 200FT (KG)
IN	MM	MM	MM	KG	KG	B.F	H.D.G
1/8	3.20	20	12	200	400	10.80	11.00
5/32	4.00	23	15	300	600	17.40	18.00
3/16	4.70	25	18	400	800	24.40	25.00
7/32	5.50	26	19	550	1100	34.00	35.00
1/4	6.35	26	23	750	1500	48.80	50.00
5/16	7.94	32	29	1200	2400	76.00	78.00
3/8	9.50	35	35	1700	3400	111.00	114.00
7/16	11.11	38	38	2300	4600	154.00	158.00
1/2	12.70	50	45.5	3000	6000	194.00	200.00
5/8	15.80	60	56.7	4700	9400	303.00	312.00
3/4	19.00	76	69	6800	13600	432.00	445.00
7/8	22.20	90	80	9250	18500	586.00	603.00
1	25.40	105	95	12150	24300	770.00	792.00

LONG LINK CHAIN:

Link Specification				Test Load	Breaking Load	Net WT Per 200FT (KG)
D		L	W	Test Load	Breaking Load	Net WT Per 200FT (KG)
IN	MM	MM	MM	KG	KG	B.F	H.D.G
1/8	3.20	23	12	200	400	10.40	10.70
5/32	4.00	27	15	300	600	16.60	17.50
3/16	4.70	31	17	400	800	22.40	23.30
7/32	5.50	32	19	550	1100	32.00	33.00
1/4	6.35	33	21	750	1500	43.50	44.80
5/16	7.94	48	31	1200	2400	68.00	70.00
3/8	9.50	60	37	1700	3400	96.00	99.00
7/16	11.11	71	41	2300	4600	126.00	129.00
1/2	12.70	85	48.5	3000	6000	167.00	172.00
5/8	15.80	114	61.5	4700	9400	256.00	264.00
3/4	19.00	125	75	6800	13600	381.00	392.00
7/8	22.20	140	88	9250	18500	527.00	543.00
1	25.40	155	100	12150	24300	696.00	716.00

Company information:

Linyi Hedong Shuguang Rigging Factory located in Linyi City, Shandong Province, China. Our company was founded in 1995, covering an area of more than 10000 square meters, own more than 200 staffs and many production lines. We mainly produce: galvanized chain, high strength chain, stainless steel chain, knotting chain, decorative chain, animal chain, and so on.
Our company has specialized in this field for more than 20 year with rich experience in production and management, strict quality control. The products are exported to Germany, Russia, Brazil, Egypt, Ecuador, Poland, Italy, Australia, the Middle East, Ecuador, India etc. and getting good reputation. We also can offer you wire rope clip, turnbuckles, shackle, rings, snap hook, hammers and other rigging hardwares.
Our staff welcome new and old customers at home and abroad to visit factory.

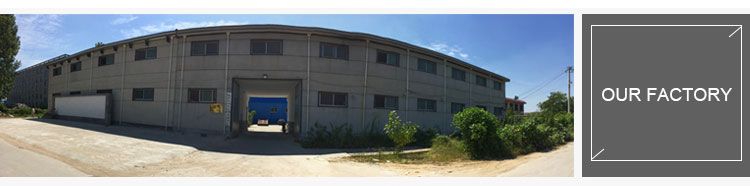

Factory Pic:
Bulk 13mm 16mm 19mm Black Hardened Metal Cast Iron G80 Lifting Chain Industrial G I Lashing Chain

Production Process:
Bulk 13mm 16mm 19mm Black Hardened Metal Cast Iron G80 Lifting Chain Industrial G I Lashing Chain

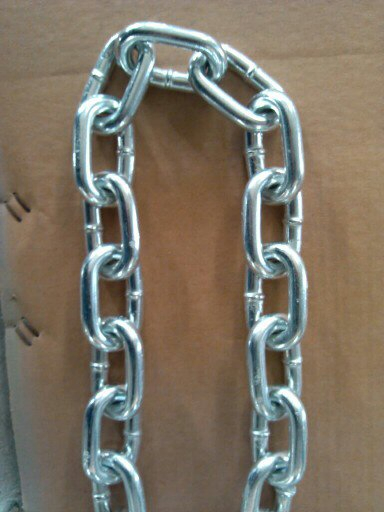

Product pics:
Bulk 13mm 16mm 19mm Black Hardened Metal Cast Iron G80 Lifting Chain Industrial G I Lashing Chain

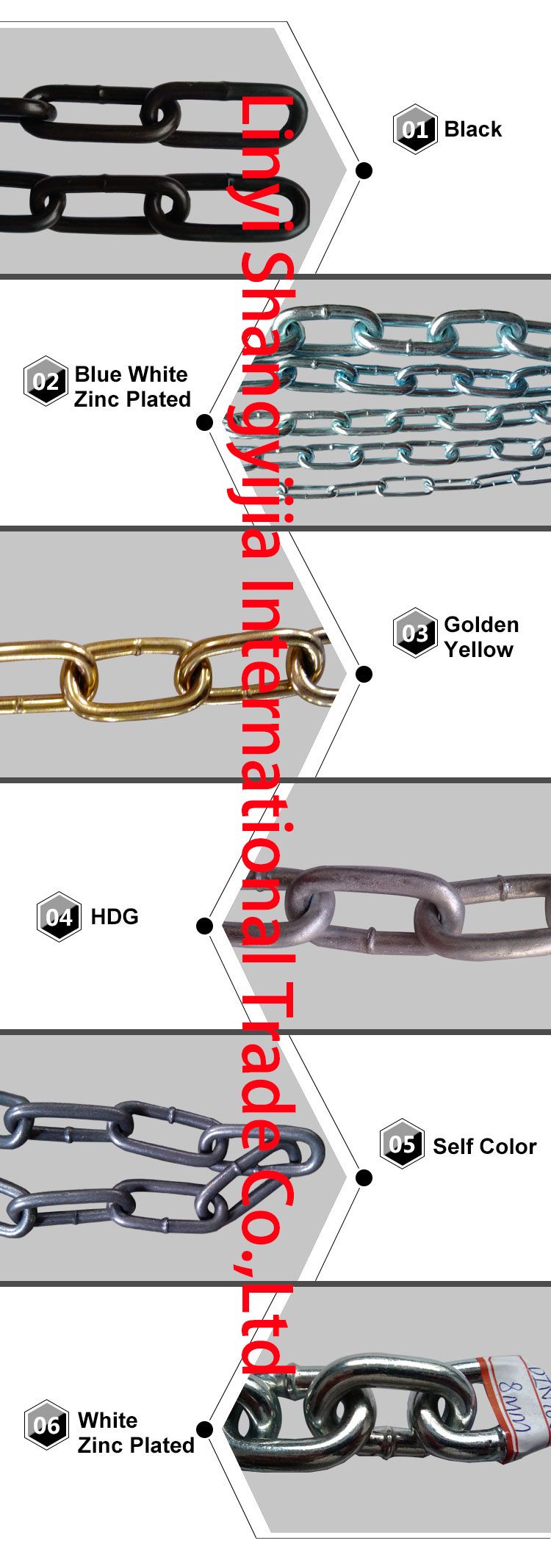

Surface Treatment:

Bulk 13mm 16mm 19mm Black Hardened Metal Cast Iron G80 Lifting Chain Industrial G I Lashing Chain

Application: Our products usually used for decoration, protection, lifting, draging, fishing etc.

Bulk 13mm 16mm 19mm Black Hardened Metal Cast Iron G80 Lifting Chain Industrial G I Lashing Chain
