China Hangzhou Dele 8X24mm Black Hoist Load Link Chain G80
8X24mm Black Hoist Load Link Chain G801.can provide meet DIN,NACM,BS JIS and other standards ring chains and user requirements nonstandard ring chain. 2.according to the user needs to provide hot-dip zinc,decromet,metal coated,blacken,carburization,oil and various, surface treatment on the chain.3.s......
Send Inquiry
Product Description

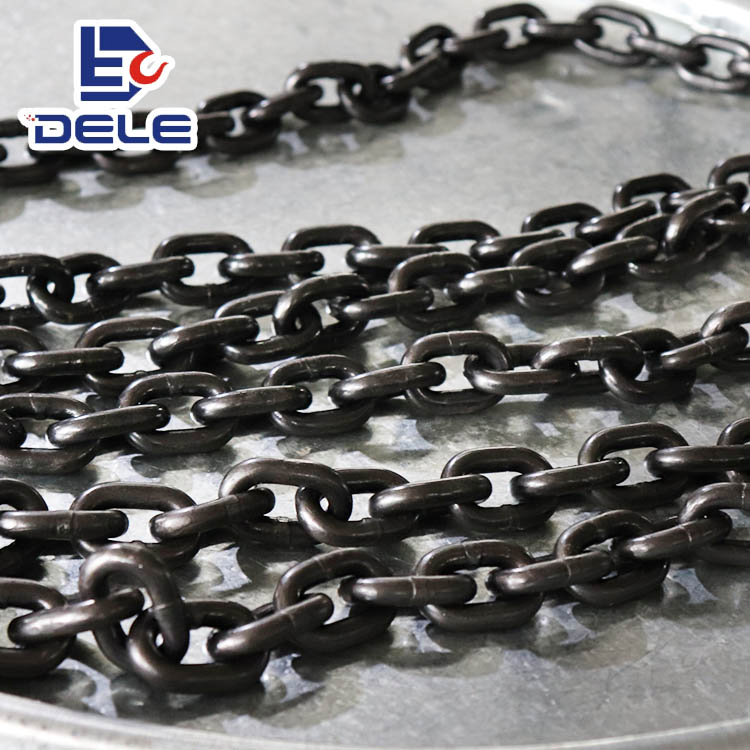

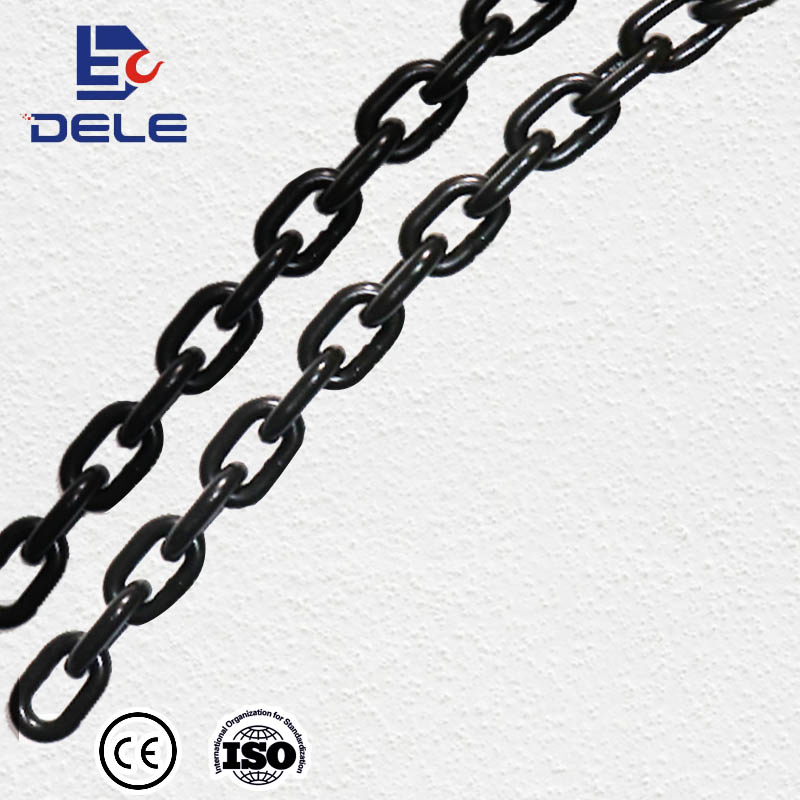

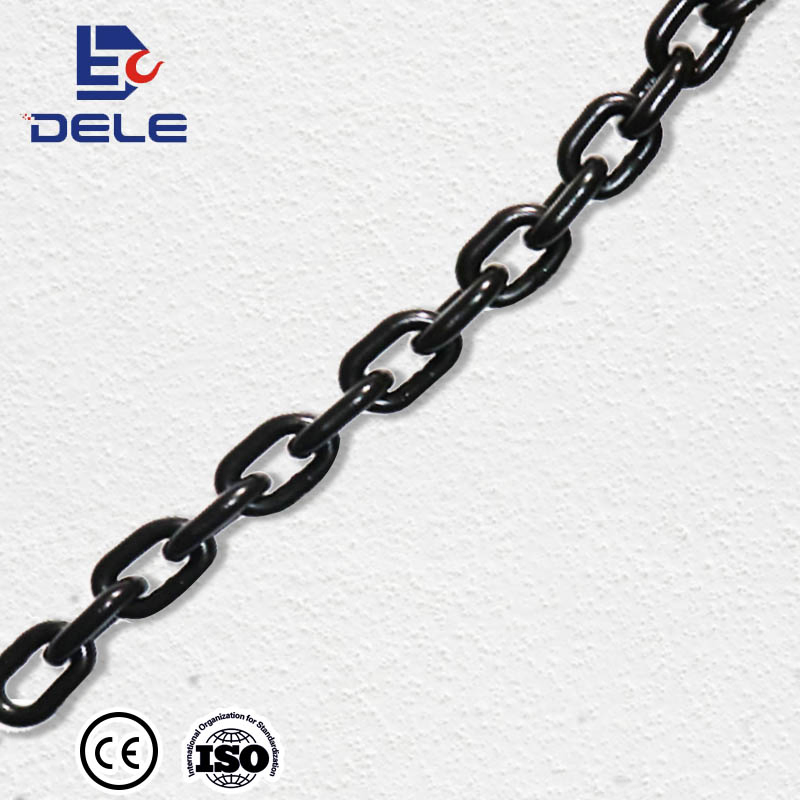

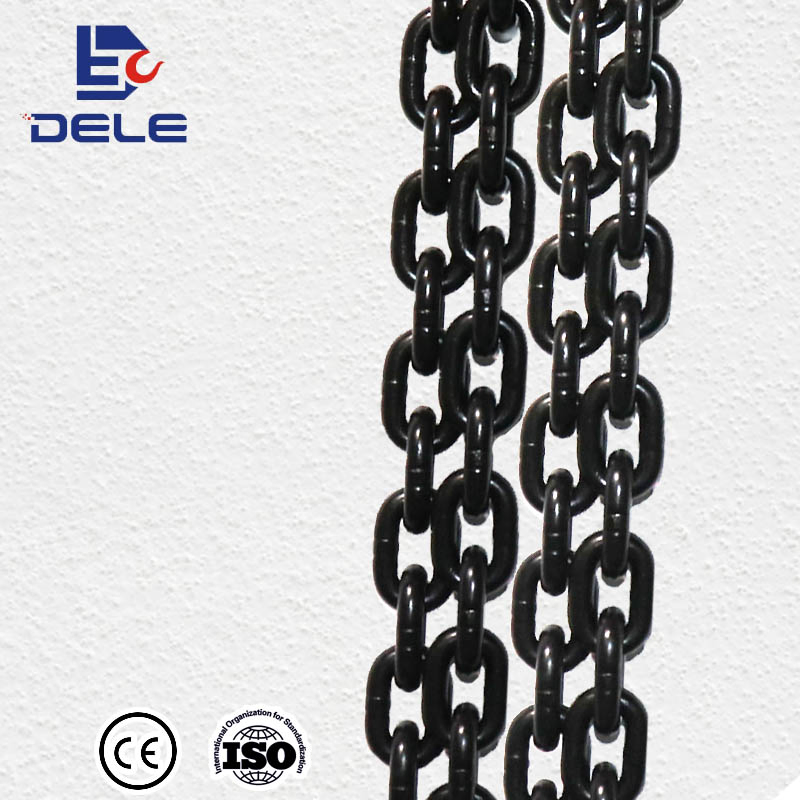

8X24mm Black Hoist Load Link Chain G80

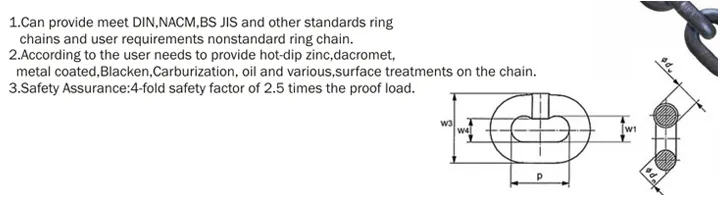

1.can provide meet DIN,NACM,BS JIS and other standards ring chains and user requirements nonstandard ring chain.
2.according to the user needs to provide hot-dip zinc,decromet,metal coated,blacken,carburization,oil and various, surface treatment on the chain.
3.safety Assuranc:4-fold safety factor of 2.5 times the proof load.
specifications
| size dxp(mm) | width | Approx Weight(kg/m) | Working LoadLimit(t) | Test Load(KN) | Breaking Load min. FN | |
| inside min.w1 | outside max. w3 | |||||
| 3x9 | 3.8 | 10.7 | 0.21 | 0.28 | 7.1 | 11.3 |
| 4x12 | 5 | 14.3 | 0.35 | 0.5 | 12.6 | 20.1 |
| 5x15 | 6.3 | 17.9 | 0.54 | 0.8 | 19.6 | 31.4 |
| 6x18 | 7.5 | 21 | 0.79 | 1.1 | 12.7 | 45.2 |
| 6.3x19 | 7.9 | 22.6 | 0.86 | 1.25 | 31.2 | 49.9 |
| 7x21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
| 8x24 | 10 | 28 | 1.38 | 2 | 48 | 80.4 |
| 9x27 | 11.3 | 32.2 | 1.76 | 2.5 | 63.6 | 102 |
| 10x30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 125 |
| 11.2x33.6 | 14 | 40.1 | 2.71 | 4 | 98.5 | 158 |
| 11x43 | 12.6 | 36.5 | 2.33 | 3.8 | 92 | 154 |
| 12x36 | 15 | 42 | 3.1 | 4.6 | 109 | 181 |
| 12.5x38 | 15.5 | 42.2 | 3.3 | 4.9 | 117 | 196 |
| 13x39 | 16.3 | 46 | 3.8 | 5 | 128 | 214 |
| 14x42 | 18 | 49 | 4.13 | 6.3 | 150 | 250 |
| 14x50 | 17 | 48 | 4 | 6.3 | 150 | 250 |
| 15x46 | 20 | 52 | 5.17 | 7 | 168 | 280 |
| 16x48 | 20 | 56 | 5.63 | 8 | 192 | 320 |
| 16x49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |
| 16x64 | 23.9 | 58.9 | 5.11 | 8 | 192 | 320 |
| 18x54 | 23 | 63 | 6.85 | 10 | 246 | 410 |
| 18x54 | 21 | 60 | 6.6 | 10 | 246 | 410 |
| 19x57 | 23.7 | 63.2 | 7.7 | 11.3 | 270 | 450 |
| 20x60 | 25 | 70 | 8.6 | 12.5 | 300 | 500 |
| 22x65 | 28 | 74.2 | 10.7 | 15.3 | 366 | 610 |
| 22x66 | 28 | 77 | 10.2 | 15.3 | 366 | 610 |
| 22x86 | 26 | 74 | 9.5 | 15.3 | 366 | 610 |
| 24x72 | 32 | 82 | 12.78 | 18 | 432 | 720 |
| 24x86 | 28 | 79 | 11.6 | 18 | 432 | 720 |
| 26x78 | 35 | 91 | 14.87 | 21.3 | 510 | 720 |
| 26x92 | 30 | 86 | 13.7 | 21.3 | 510 | 850 |
Payment
| Payment term | L/C | l/c amount above 40.000 usd,we can accept L/C at sight | |
| T/T | EXW | 30% T/T in advance,paid the balance before shipment | |
| FOB | |||
| CIF | 30% T/T in advance,paid the balance against copy of B/L | ||
| cfr(c&f) | |||
| paypal | amount lower than 4000usd | ||
| west | |||
| Delivery time | 15~35days after receiving payment for one container |
| We welcome use trade assurance,you`ll enjoy: 100% product quality protection 100% on-time shipment protection 100% payment protection for your covered amount |
