DIN 5685A/C Short/Long Welded Link Chain

Product Description

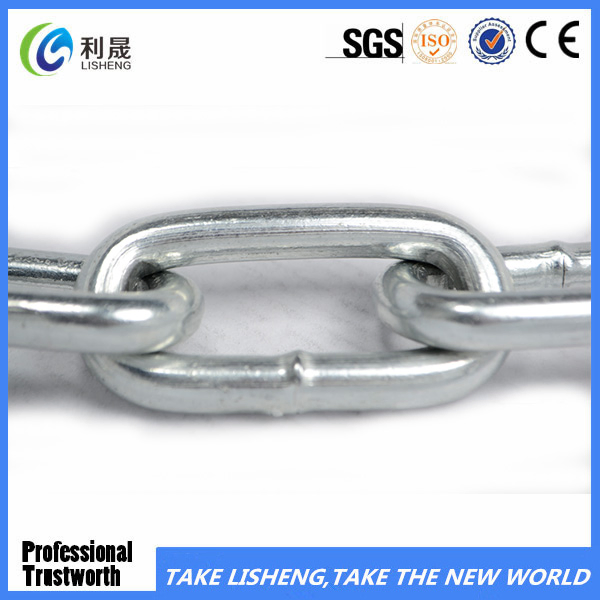

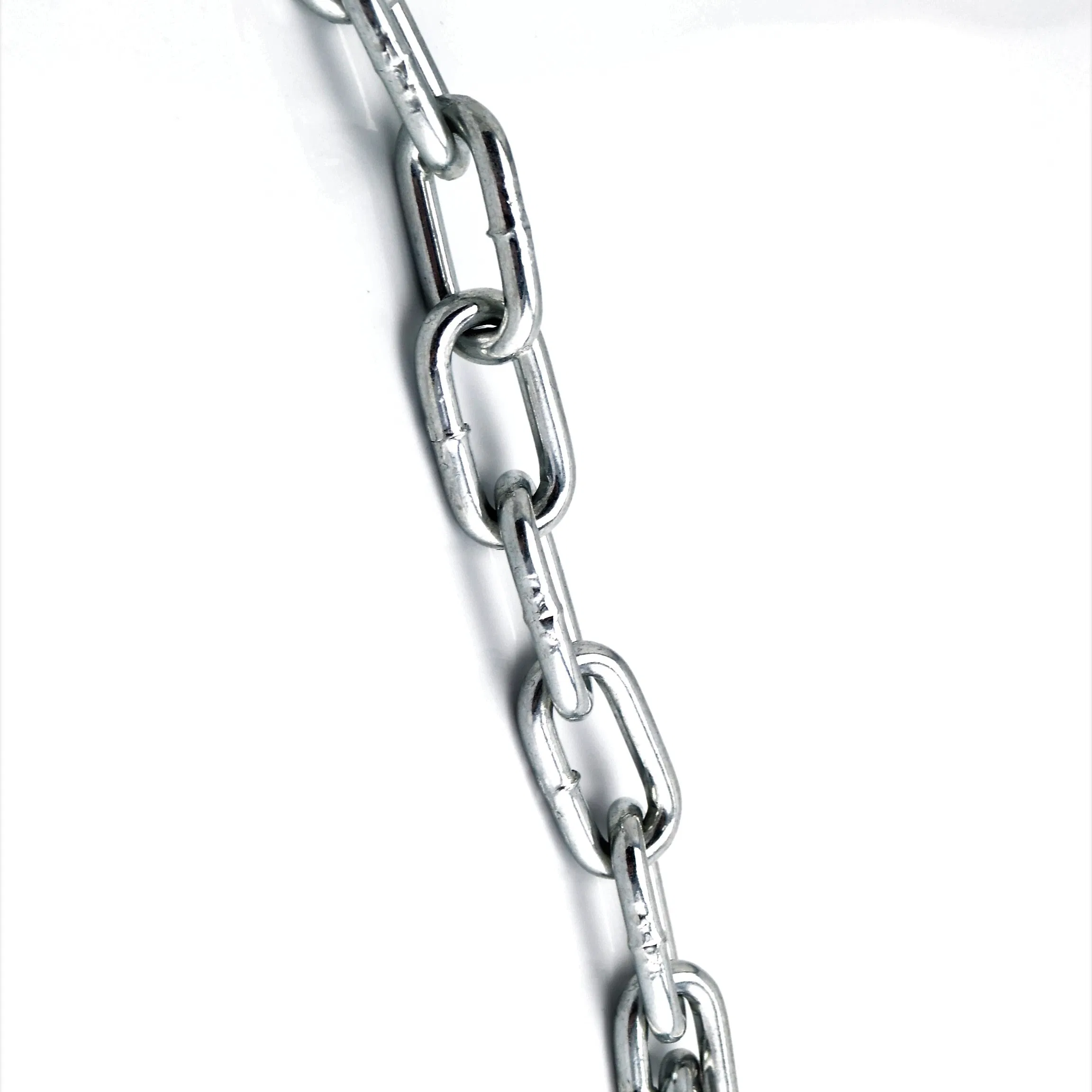

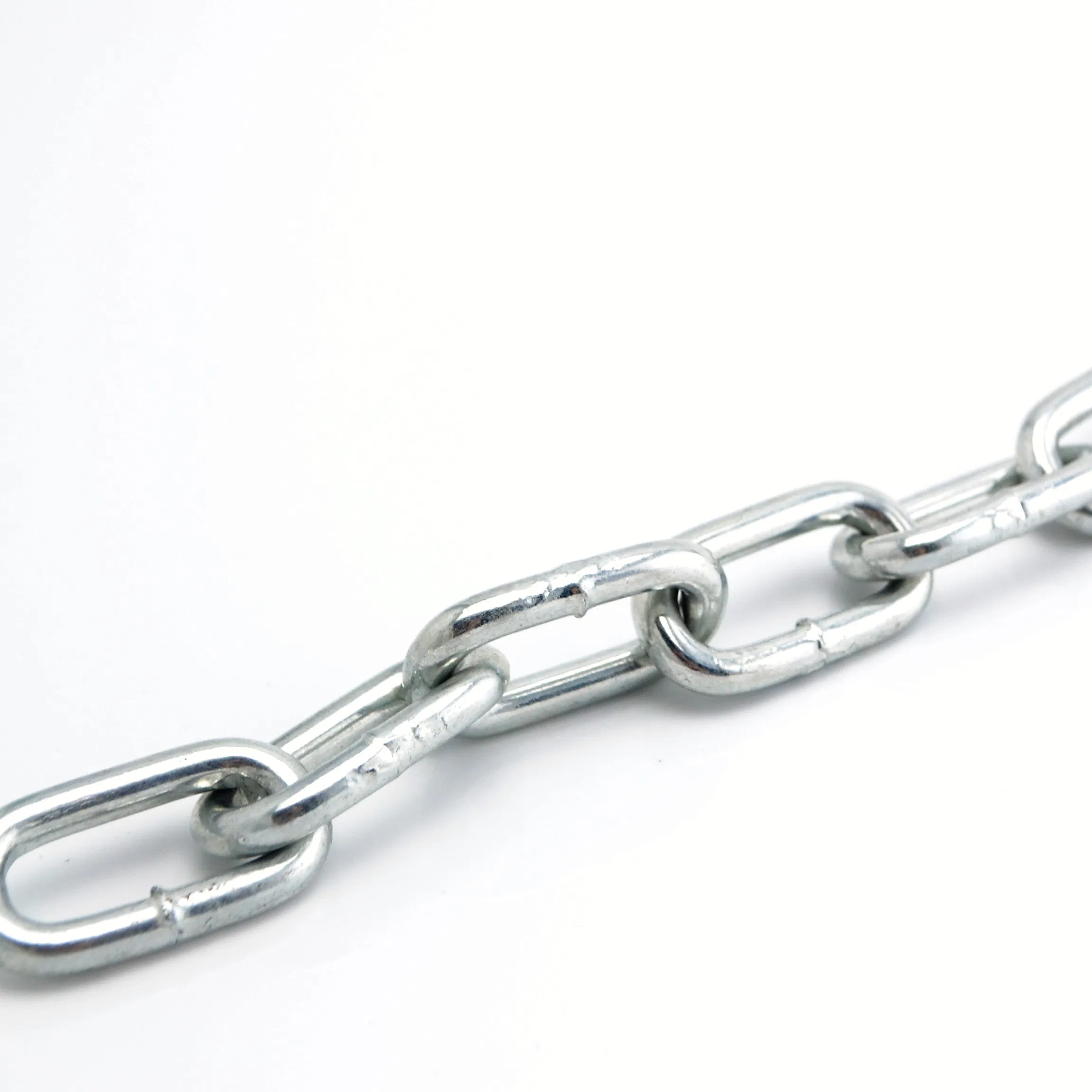

DIN 5685A/C SHORT/LONG WELDED LINK CHAIN

PRODUCT DETAILS
Service: Your inquiry will be replied within 12 hours.
Product name: DIN 5685A/C SHORT/LONG WELDED LINK CHAIN
Place of origin: Shandong, China.
Brand: LS
Material: Carton steel ( Iron, Alloy Steel 20Mn2, 25MNV).
Size; 2-13mm
Surface: Electro Galivanized(Hot Dip Galivanized,
Polished, Self-color).
Standard: DIN5685C
Grade: None
Stock: There are emergency stocks for regular sizes.
Sample
The sample is free, the freight should on your
Account before your first order.
Packing method
5/50 kg one Gunny bag, several bags on one
Pallet(500kg one iron drum, 2drums on a iron
Pallet; Plastic drum+pallet; Plastic/wooden
Roll+pallet.
Payment term
30% advanced by T/T, the balance should be
Paid after see the copy of the B/L; L/C at sig-ht; Western Union.
Delivery timeUsually within 15-30days according to your required size&quantity.
Using range
1. Decoration; Protection; Lifting; Traction etc.
2. Fishing &boat chain; Mine chain; Cement
Lifting round chain.
Lisheng always lead the new development of technologies, new products
And value-added services. Over the years, link chains have been created, applied,
And enable real growth forcustomers into newmarketplaces.
Link chains are widely used in various industries.

1. Decoration; Protection; Lifting; Traction etc.
2. Fishing &boat chain; Mine chain; Cement lifting round chain.
30% advanced by T/T, the balance should be paid after see the copy of the
B/L; L/C at sight; Western Union.
We have good relationship with clients around the world, we welcome your visiting.
We welcome your inquiry!

Take us, take the world!

LS DIN 5685A/C SHORT/LONG LINK CHAIN

SIZE	INSIDE LENGTH	OUTSIDE WIDTH	WEIGHT PER100M	WORKING LOAD	BREAKING LOAD	GRADE

MM	MM	MM	KG	N	N
2	12	8	7	500	1250	A
	22		6			C
2.5	14	10	11	750	2000	A
	24		10			C
3	16	12	16.5	1120	2800	A
	26		15			C
3.5	18	14	22.5	1500	3850	A
	28		20			C
4	19	16	30	2000	5000	A
	32		27			C
4.5	20	18	39.5	2500	6300	A
	34		35			C
5	21	20	50	3150	7750	A
	35		43			C
5.5	23	22	60.5	3800	9500	A
	38.5		52			C
6	24	24	73	4500	11500	A
	42		63			C
6.5	26	26	86	5400	13500	A
	45.5		74			C
7	28	28	100	6000	15000	A
	49		86			C
8	32	32	130	8000	20000	A
	52		110			C
8.5	34	34	149	9000	22500	A
	56		125			C
9	36	36	165	10000	25000	A
	59		141			C
10	40	40	205	12500	31000	A
	65		175			C
11	44	44	250	15000	38000	A
	72		211			C
12	48	48	290	18000	45000	A
	78		255			C
13	52	52	345	21200	53000	A
	82		295			C
