Product Description

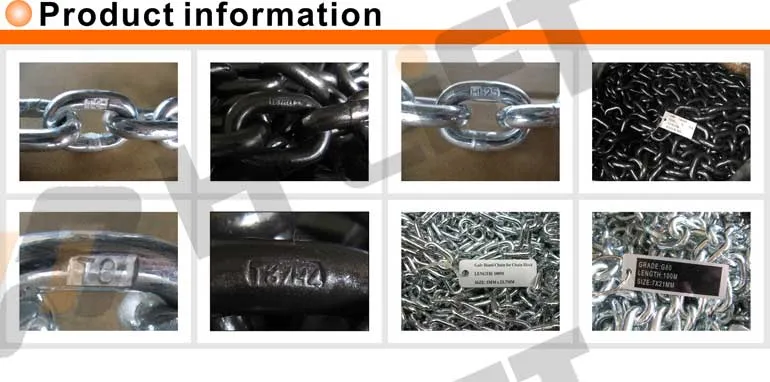

H-Lift Mild Steel Chain

We supply stud link chain, open link chain, long link chain, medium link chain, short link chain. Chain can be supplied self colour(SF), blacktarred, bright zinc plated(ZP)and hot dip galvanized(HDG).

Chain with non standard dimensions or of specific material or heat treatment requirements can be manufactured to order.

Item	Nominal Size		Working Load Limit(max)		Proof Load(min)		Breaking Load(min)		Material Diameter		Inside Length(max)		Inside Width(mm)
Item	inch	mm	kN	lbs	kN	lbs	kN	lbs	inch	mm	inch	mm	inch	mm
C964307	1/4	7.0	1180	2600	17.3	3900	34.6	7800	0.276	7.0	1.24	31.5	0.38	9.8
C964308	5/16	8.0	1770	3900	26.0	5850	52.0	11700	0.343	8.7	1.29	32.8	0.44	11.2
C964310	3/8	10.0	2450	5400	36.0	8100	72.0	16200	0.406	10.3	1.38	35.0	0.55	14.0
C964311	7/16	11.9	3270	7200	48.0	10800	96.0	21600	0.468	11.9	1.64	41.6	0.65	16.6
C964313	1/2	13.0	4170	9200	61.3	13800	122.6	27600	0.531	13.5	1.79	45.5	0.72	18.2
C964316	5/8	16.0	5910	13000	86.5	19500	173.0	39000	0.630	16.0	2.20	56.0	0.79	20.0

G43 High Test 1/4′′-5/8′′ Mild Steel Link Chain Nacm96
