Product Description

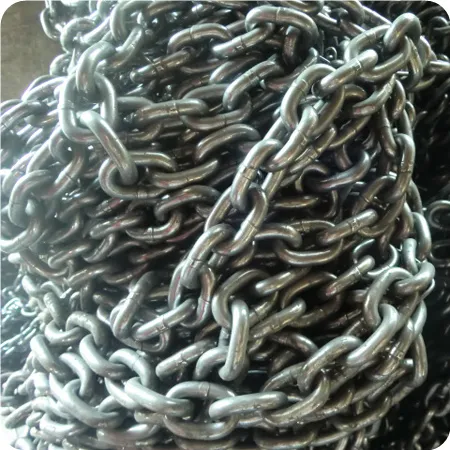

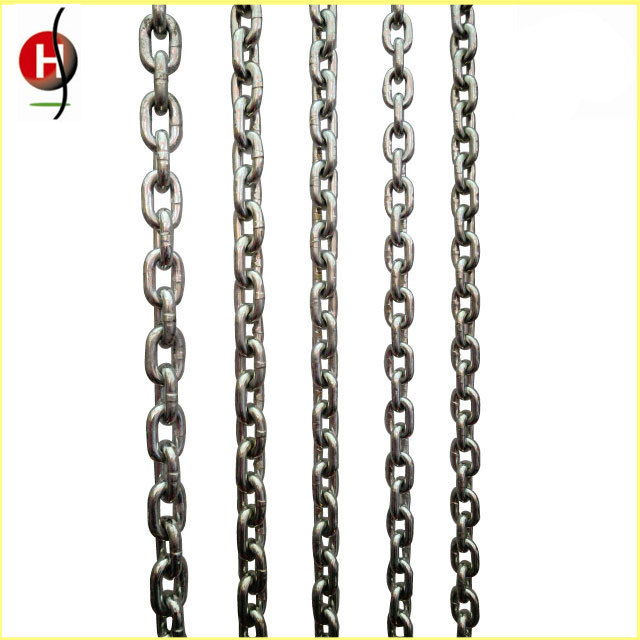

G80 Alloy Steel Lifting Chain with Blak Painting

Details:

AA

G80 Alloy Steel Lifting Chain with Blak Painting

Chain Diameter ranges: 6*18, 7*21, 8*24, 10*30, 11*43, 12*36, 12.5*38, 13*39, 14*42, 14*50, 15*46, 16*48, 16*49, 16*64, 18*54, 18*64, 19*57, 20*60, 22*65, 22*66, 22*86, 24*72, 24*86, 26*78, 26*92, 30*90, 30*108, 32*96, 34*126.
Material: high quality alloy steel, 20Mn2, 20MnSi
Surface treatment: self-color polishing, black, painted, galvanized, color galvanized.
Quality grade: Grade 80
Safety factor: 4:1

Catalog:

Specifications	Min. Width	Max. Widh	Working Load	Test Load	Minimum breaking load	Product weight
	(mm)	(mm)			KN
d*p(mm)	a	b	t	KN	G80	kg/m
6*18	7.5	21	1.1	27	45.2	0.79
7*21	9	24.5	1.5	37	61.6	1.07
8*24	10	28	2	48	80.4	1.38
10*30	12.5	35	3.2	76	125	2.2
11*43	12.6	36.5	3.8	92	154	2.33
12*36	15	42	4.6	109	181	3.1
12.5*38	15.5	42.2	4.9	117	196	3.3
13*39	16.3	46	5	128	214	3.8
14*42	18	49	6.3	150	250	4.13
14*50	17	48	6.3	150	250	4
15*46	20	52	7	168	280	5.17
16*48	20	56	8	192	320	5.63
16*49	24.5	59.5	8	192	320	5.71
16*64	23.9	58.9	8	192	320	5.11
18*54	23	63	10	246	410	6.85
18*64	21	60	10	246	410	6.6
19*57	23.7	63.2	11.3	270	450	7.7
20*60	25	70	12.5	300	450	8.6
22*65	28	74.2	15.3	366	610	10.7
22*66	28	77	15.3	366	610	10.2
22*86	26	74	15.3	366	610	9.5
24*72	32	82	18	432	720	12.78
24*86	28	79	18	432	720	11.6
26*78	35	91	21.3	510	850	14.87
26*92	30	86	21.3	510	850	13.7
30*90	38	105	28.3	678	1130	19.6
30*108	34	98	28.3	678	1130	18
32*96	40	106	32.2	772	1286	22.29
34*129	38	109	36.3	870	1450	22.7

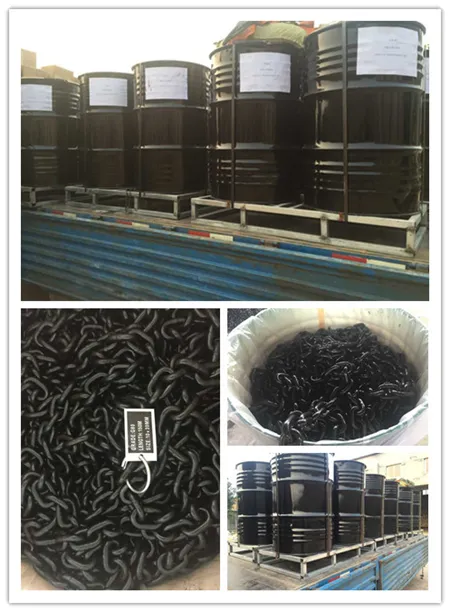

Package:

Standard iron drum, iron pallet, gunny bag and iron box
G80 Alloy Steel Lifting Chain with Blak Painting

Company Introduction

Tianjin Eastern Union I&E Co.,Ltd is one of the leading Exporters, Stockist & Suppliers for Lifting Items for the last 10 years.

It's a matter of great pleasure to inform you that we are having cordial business relation with many different fields corporations and manufacturers throughout the world. It is needless to emphasis that in view of our vast experience in the line we are in a position to meet your valued requirements of Lifting Equipment and Hand Tools and Items of every description and specifications at moderate price.

Sincerely welcome your inquiry and trail order. We are looking forwad to the firm and long-term business relationship with you.
