China G80 G100 Lifting Chain DIN5685A/C DIN766 DIN764 DIN765 Link Chain

Product Description

Company Profile

Shandong YiFa casting and forging Co.,Ltd.is a comprehensive enterprise integrating the production,sale and service of rope chain lifting accessories,metal tools,power cord accessories and other casting and forging products.The company consists of two subsidiaries and six professional entities.Product quality conforms to various international standards.

We have more than 20 years of export experience, competitive prices and high quality products,so that our products are exported to all over the world, well received by customers around the world,also makes us an important supplier in the global market.

At the same time,we also provide professional customized products:
• On-demand products (special drawings)
• Special Markings on products
• Special packaging

The company adopts ISO9001:2000 quality management system.Company tenet:quality first,customer first,integrity and innovation.

We believe that we can establish long-term and stable friendly business relations with your company.Welcome to contact us.

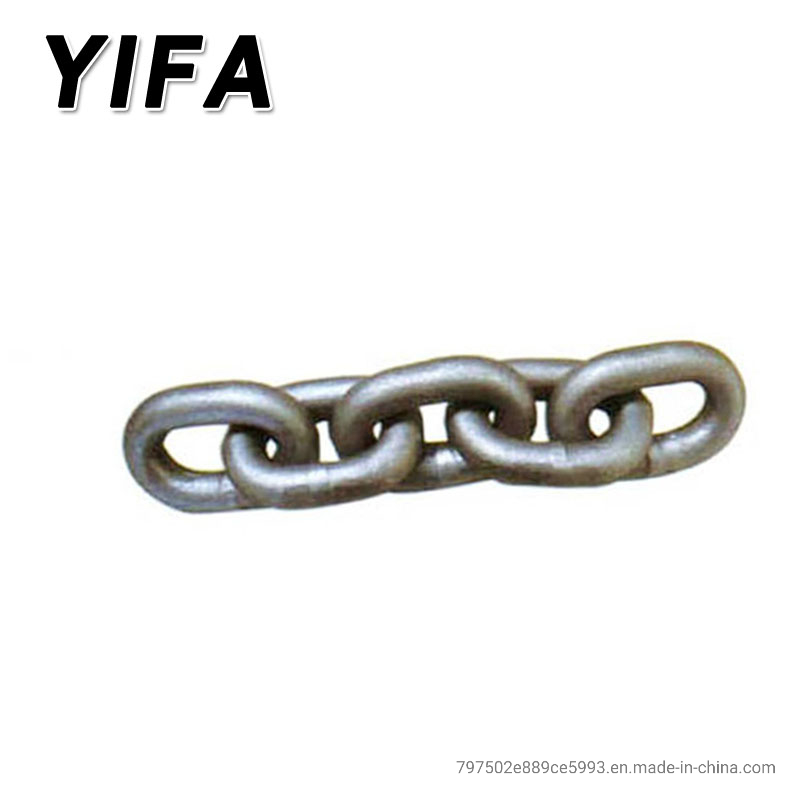

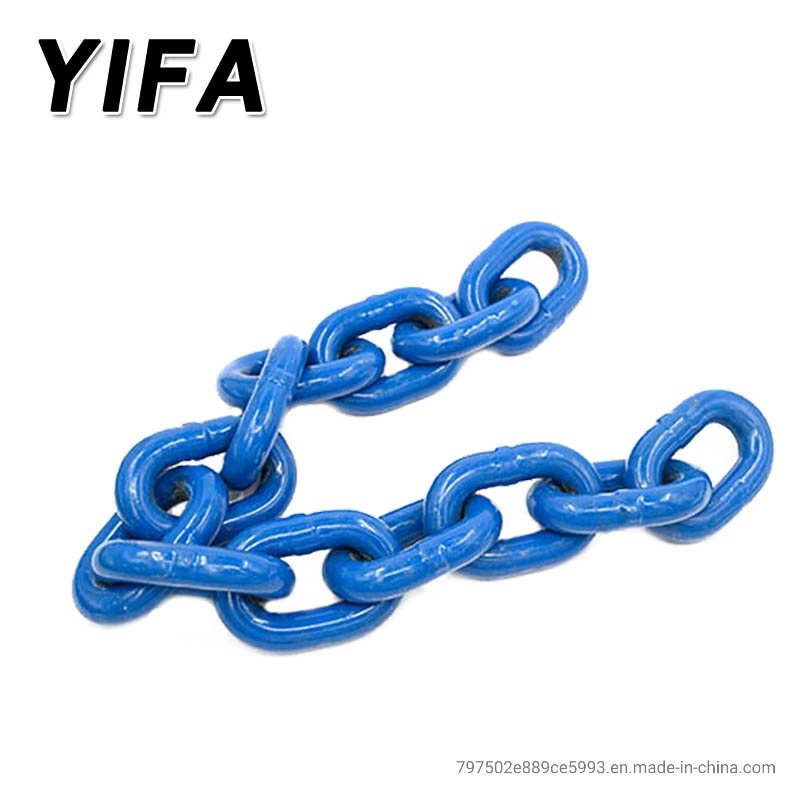

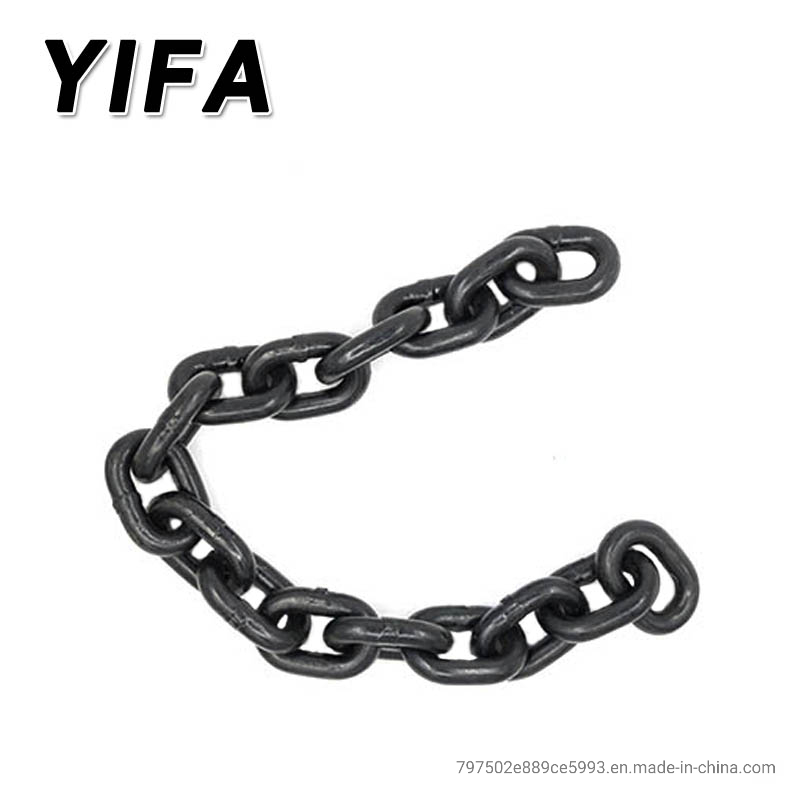

Lifting Chain

Size(mm)	Inside Length p(mm)	Inside Width c(mm)	Outside Width b(mm)	WLL(kn)	Weight (kg/m)
6	18	7.8	22.2	1.12	0.8
8	24	10.4	29.6	2	2.2
10	30	13	37	3.15	3.3
12	36	15.6	44.4	4.52	3.3
13	39	16.9	48.1	5.3	3.8
16	48	20.8	59.2	8	6.7
18	54	23.4	66.6	10	7.3
20	60	26	74	12.5	9
22	66	28.6	81.4	15	10.9
26	78	33.8	96.2	21.2	15.2
30	90	38	106	28.3	20.3
32	96	41.6	118	31.5	23
34	102	44.2	125.8	36.3	26
40	120	52	148	50	36
42	126	54.6	155.4	55.4	40
45	135	58.5	167	63	45.5
48	144	60	170	72.5	52

DIN766 Link Chain

Size(mm)	Inside Length p			Inside Width c (mm)	Length Per 11 Links			Weight Per M(kg)
Size(mm)	mm	+mm	-mm	Inside Width c (mm)	mm	+mm	-mm	Weight Per M(kg)
2	12	0.2	0.2	3.5	132	1.0	0.5	0.07
3	16	0.2	0.2	4.2	176	1.4	0.7	0.16
4	16	0.3	0.2	5	176	2.1	1.1	0.32
5	18.5	0.4	0.2	6	203.5	2.4	1.2	0.5
6	18.5	0.4	0.2	7.2	203.5	2.4	1.2	0.8
7	22	0.4	0.2	8.4	242	3	1.4	1.1
8	24	0.4	0.2	9.6	264	3.2	1.5	1.4
9	27	0.5	0.3	10.8	297	3.6	1.8	1.8
10	28	0.5	0.3	12	308	3.7	1.9	2.2
11	31	0.5	0.3	13.2	341	4	2	2.7
12	36	0.6	0.3	14.4	396	4.4	2.2	3.1
13	36	0.6	0.3	15.6	396	4.6	2.4	3.8
14	41	0.7	0.4	16.8	451	5.4	2.7	4.4
16	45	0.8	0.4	19.2	495	6	3	5.7
18	50	0.8	0.4	21.6	550	6.6	3.3	7.3
19	53	0.9	0.4	22.8	583	7.0	3.7	7.97
20	56	1	0.5	24	616	7.4	3.7	9
23	64	1.1	0.5	27.6	704	8.4	4.2	12
26	73	1.2	0.6	31.2	803	9.6	4.8	15
28	78	1.3	0.65	33.8	858	10.2	5.1	18
30	84	1.4	0.7	41.0	924	11.0	5.5	19.5
32	90	1.5	0.75	43.0	990	11.8	5.9	23

DIN5685AC Link Chain

Size(mm)	Inside Length p(mm)	Outside Width b(mm)	Weight Per 100m(kg)	Working Load N	Breaking Load N	Grade
2	12	8	7	500	1250	A
	22		6			C
2.5	14	10	11	750	2000	A
	24		10			C
3	16	12	16.5	1120	2800	A
	26		15			C
4	19	16	30	2000	5000	A
	32		27			C
5	21	20	50	3150	7750	A
	35		43			C
6	24	24	73	4500	11500	A
	42		63			C
7	28	28	100	6000	15000	A
	49		86			C
8	32	32	130	8000	20000	A
	52		110			C
9	36	36	165	10000	25000	A
	59		141			C
10	40	40	205	12500	31000	A
	65		175			C
11	44	44	250	15000	38000	A
	72		211			C
12	48	48	290	18000	45000	A
	78		255			C
13	52	52	345	21200	53000	A
	82		295

FAQ

1. Are you a manufacturer?
Yes,we have our own factory workshop and machines,we control every step for production.

2. Do you have stock products to sell?
For some regular products,we have stock;but usually we supply customized products.

3. What is the quality of your products?
All of our manufacturing factories are ISO 9001 certified.Nowadays we successfully supply important players on the worldwide markets.Our products comply with the various demanding National and International standards.

4.What about Delivery Time?
In view of the particularity of the rigging industry, the surface of the product and the typing of the product itself must be customized at any time according to customer requirements.Please contact customer service for delivery time.
