Product Description

Product Description:

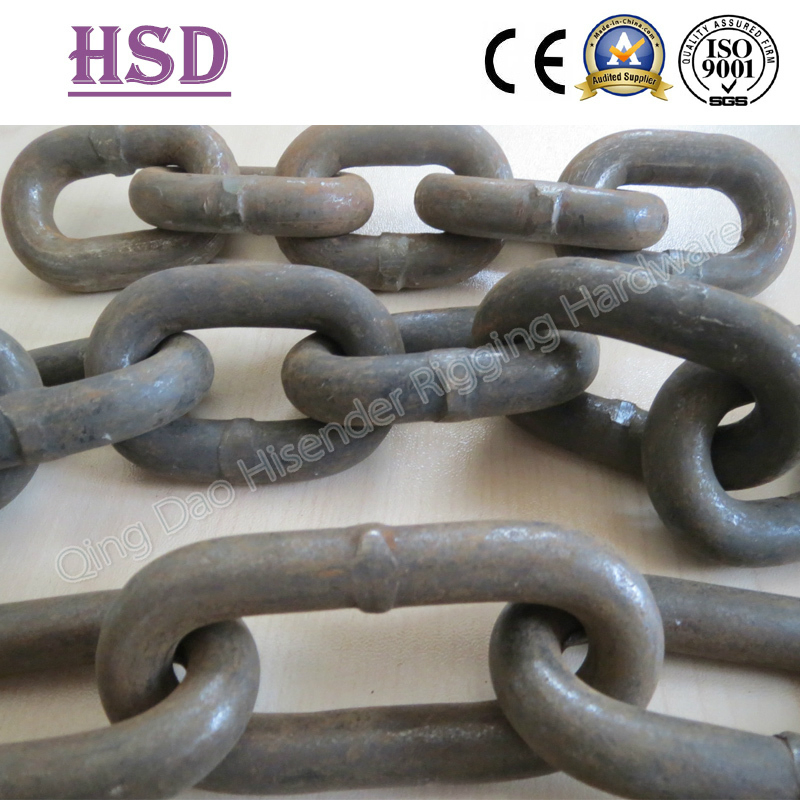

G80 lifting chain, Calibrated hoist chain

Size: 6mm-42mm

Material: Carbon steel, Alloy steel, Steel, 20Mn2, 25MnV, CM490 and so on

Packing& delivery: Gunny bag inner with pvc bag, plastic bucket/reel,metal

pail and other packing ways as customer .

SIZE	NORMINAL DIAMETER			WIDTH		WEIGHT /M	WORKING LOAD	PROOF TEST(MIN)	BREAKING FORCE(MIIN)
SIZE	MM		IN	AMIN	BMAX	WEIGHT /M	WORKING LOAD	PROOF TEST(MIN)	BREAKING FORCE(MIIN)
6×18	6	7/32		7.5	21	0.79	10	20	45.2
8×24	8	5/16		10	28	1.38	15	30	80.4
10×30	10	3/8		12.5	35	2.2	25	50	125
12×36	12	7/16		15	42	3.1	35	70	181
13×39	13	1/2		16.3	46	3.8	40	80	214
14×42	14	1/2		18	49	4.13	50	100	250
15×46	15	3/5		20	52	5.17	55	110	280
16×48	16	5/8		20	56	5.63	60	120	320
18×54	18	23/32		23	63	6.85	80	160	410
19×57	19	3/4		23.7	63.2	7.7	90	180	450
20×60	20	3/4		25	70	8.6	100	200	500
22×66	22	7/8		28	77	10.2	120	240	610
24×72	24	15/16		32	82	12.78	140	280	720
26×78	26	1		35	91	14.87	170	340	850
30×90	30	19/16		38	105	19.6	220	440	1130
32×96	32	11/4		40	106	22.29	250	500	1286
34×126	34	13/8		42.5	109	22.7	363	870	1450

Quality & Service Assurance

1 Reliable partner: Reliable Supplier & over 20 years in manufacturing link chain.

2.Great quality: Control for each product, from the raw material to the final

                           process.

3. Price: Offer the lowest ex-factory prices with a wide range of shipping ways.

4.Certification: ISO, CE material certificate, quality certificate, management

                          certificate, test reports.

5.Transportation close to Qingdao Port & Airport, which provides great

                         advantages to the trade.

6.Quick response: All inquiries responded within 4 hours.

7.Timely delivery.

8. Free samples can post you for check and test, if needed.

Give us a chance , we will do it much better !
