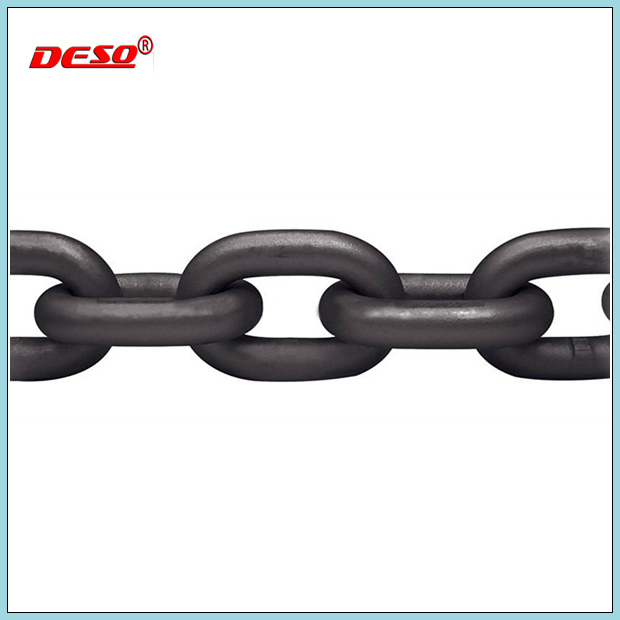

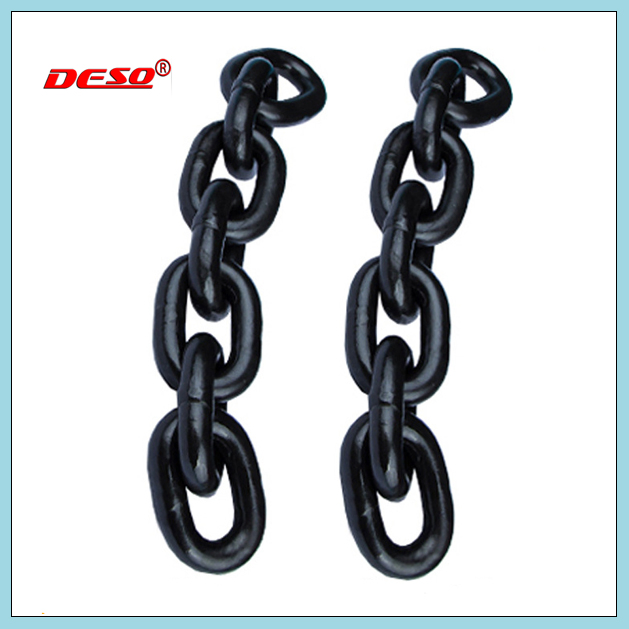

China G80 Welded Galvanized or Black Steel Lifting Chain

Product Description

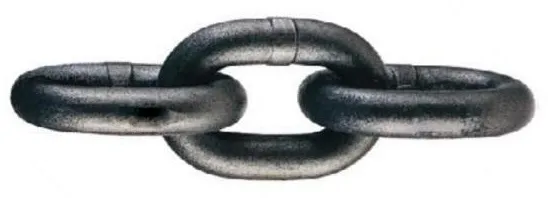

G80 Type Alloy Chain

* Alloy chain is designed and manufactured for superior performance and usage.
* It can easy withstand more abuse, abrasion resistance, greater load lifting per size.
* It is lighter to handle for operations.
* Material alloy steel, heat treated and proof tested.
* Safety factor 4: 1
* Tougher and more reliable for lifting application.
* Minimize downtime operation and more durable surpassed safety record.
* Finish: Available with self-coloured, black tempered, blue painted, and red painted.

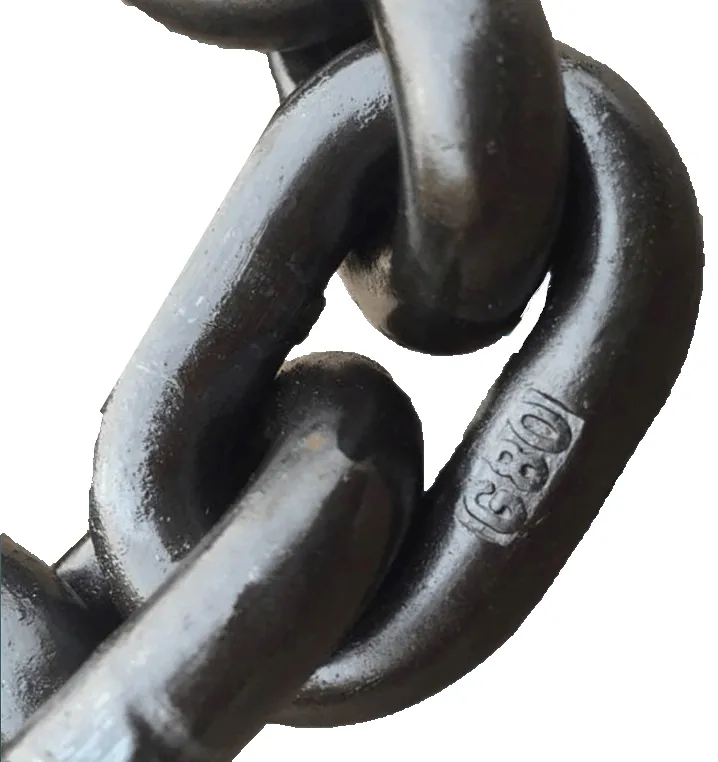

* Permanently embossed with desired marking for easy identification and traceability.
* Standard: EN818-2.

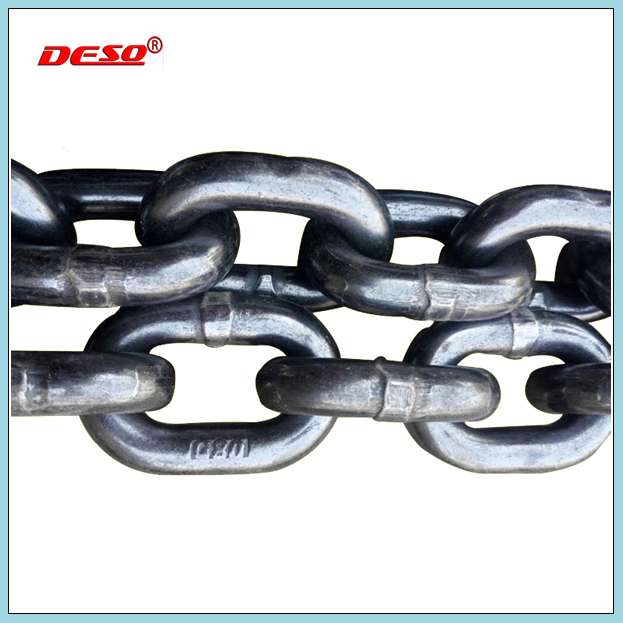

G80 Welded Galvanized or Black Steel Lifting Chain

G80 Welded Galvanized or Black Steel Lifting Chain

Product Name	G80 lifting chain
Standard	EN818-2, GB/T20652, GB/T12718, GB/T20946, DIN5685.
Size	6mm-22mm
Material	Alloy steel/carbon steel/stainless steel
Strength Grade	G43, G63, G70, G80
Elongation of Chain Breaking	≥ 16%
Feature	It can withstand more abuse, abrasion resistance Tougher and more reliable for lifting application Do 2.4 times of WLL manufacturing validation strength tensile test. Safety factor: Min. 5: 1 Long service life
Packing List	Plywood reel/plastic reel/plastic drum/gunny bag/iron drum+plywood pallet/iron pallet
Delivery Time	20~40days
Application	G100 lifting chain is used for overhead lifting, dragging, chain slings, etc
Finish	Self-colored, black tempered, electro galvanized, hot DIP galvanized, painted.

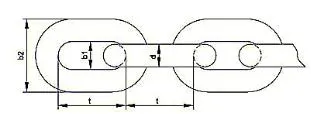

Chain dia. B (mm)	Inside length T (mm)	Inside width B1. (mm)	Outside width B2. (mm)	Working load (t)	Breaking load (t)	Weight (kg/m)
Chain dia. B (mm)	Inside length T (mm)	Inside width B1. (mm)	Outside width B2. (mm)	Working load (t)	Breaking load (t)	Weight (kg/m)
3	9	3.8	10.7	0.36	14.1	0.21
4	12	5	14.3	0.63	25.1	0.35
5	15	6.3	16.5	1	3.16	0.5
6	18	7.5	20	1.44	4.56	0.8
6.3	19.8	8.2	20.8	1.6	5	0.84
7	21	9	24.5	1.92	6	1.1
7.1	21.3	9	24.5	2	6.32	1.15
8	24	10	28	2.5	8	1.4
9	27	11	31.5	3.15	10.2	1.82
10	30	12.5	35	4	12.8	2.2
11	33	12.6	36.5	4.2	15.2	2.33
12	36	15	42	4.6	18.4	3.1
13	39	16.3	46	5.3	21.2	3.7
14	42	18	49	6.3	25.2	4.13
15	46	20	52	7	28	5.17
16	48	20	56	8	32	5.63
18	54	23	63	10	40	6.85
19	57	23.7	63.2	11.3	45.2	7.8
20	60	25	70	12.5	50	8.6
22	66	28	77	15.3	61.2	11
24	72	32	82	18	72	12.8
26	78	35	91	21.3	85.2	14.9
32	90	38	105	28.3	113.2	19.6
34	102	46.5	121.2	36.3	145.2	25.5
36	108	49.5	128.5	40.7	162.8	31
38	114	52	136	45.3	181.2	32
42	126	55.5	144.5	55.4	221.6	38.6
48	144	62.4	177.6	72.3	289.2	52
50	150	65	185	80	320	56
52	156	67.6	192.4	85	340	59
56	168	72.8	207.2	100	400	72.5
63	190	81.9	233.1	125	500	89
72	210	91	259	160	640	110
