Product Description

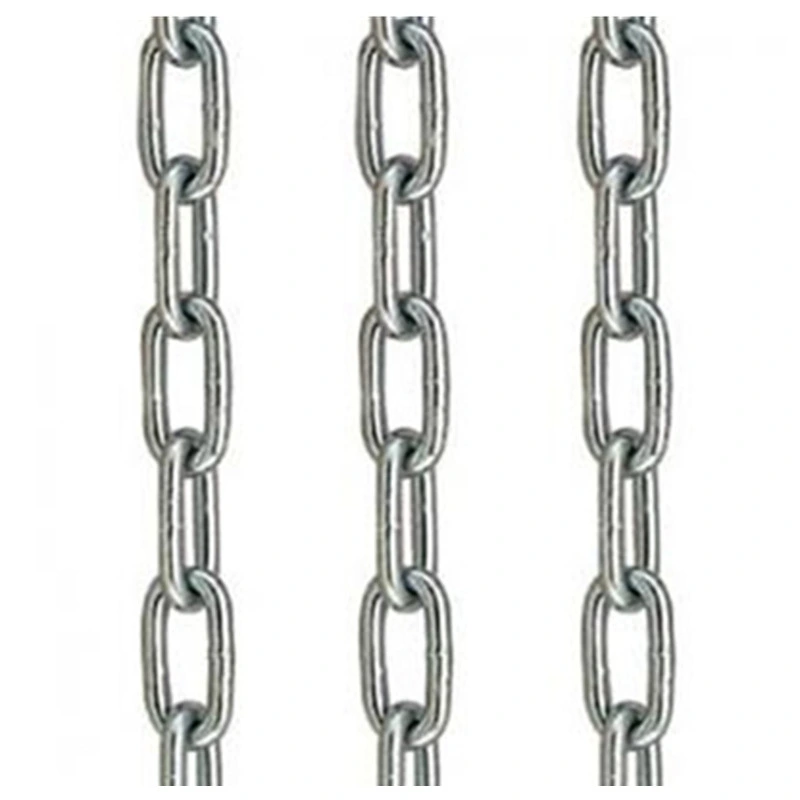

Germany Standard DIN766 Commercial Hanging Link Chain
Professional manufacturer of DIN 764 link chain:
Size:4mm-26mm
Material: Alloy steel, high tensile, heat treated.

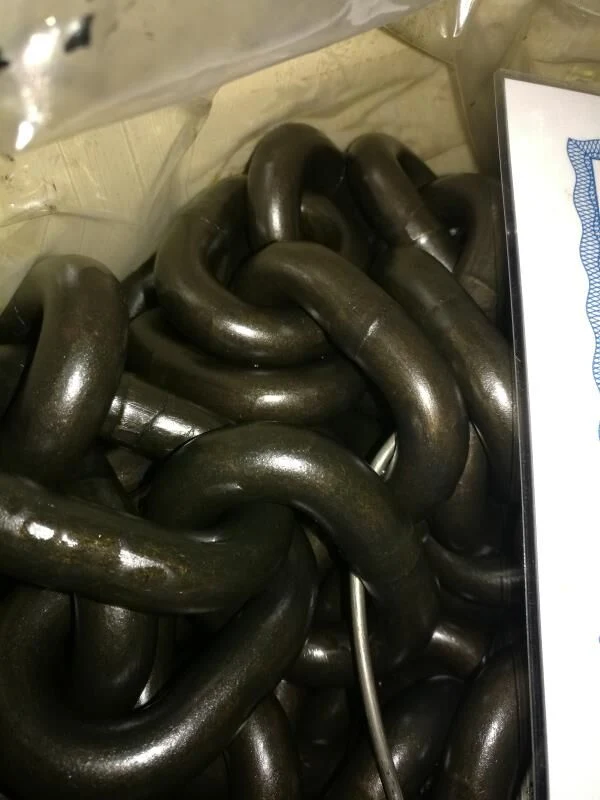

Surface treatment: Galvanized, Black painted, Self color, Polishing, Powder coated
Application: Ship, iron and steel industry, petroleum chemical industry, coal mine
Technical Specification(DIN 764 Chain):
| Size | Size | Inside length | Inside length | Inside length | Inside width(min) | Outside width(max) | Length per 11 links | Weight per m | Proof load | Breaking load | ||
| MM | ±MM | MM | +MM | -MM | MM | MM | MM | +MM | KG | KG | KN | |
| 4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 14 | 176 | 1.6 | 0.9 | 31.3 | 400 | 7 |
| 5 | 0.2 | 18 | 0.4 | 0.2 | 7 | 18.2 | 198 | 1.8 | 1 | 51.4 | 680 | 11.8 |
| 6 | 0.2 | 21 | 0.5 | 0.3 | 11 | 29 | 308 | 2.2 | 1.2 | 131.5 | 1680 | 32 |
| 10 | 0.3 | 35 | 0.6 | 0.3 | 14 | 36 | 385 | 2.7 | 1.5 | 200 | 2630 | 50 |
| 12 | 0.3 | 42 | 0.6 | 0.3 | 16 | 41 | 462 | 3.2 | 1.8 | 298 | 3680 | 70 |
| 13 | 0.4 | 45 | 0.7 | 0.4 | 18 | 47 | 495 | 3.5 | 2 | 350 | 4200 | 80 |
| 14 | 0.45 | 49 | 0.75 | 0.45 | 20 | 48 | 539 | 3.8 | 2 | 406 | 4830 | 92 |
| 16 | 0.5 | 56 | 0.9 | 0.5 | 22 | 58 | 616 | 4.3 | 2.5 | 520 | 6700 | 125 |
| 18 | 0.8 | 63 | 1 | 0.5 | 24 | 65 | 693 | 4.7 | 2.8 | 650 | 8400 | 160 |
| 20 | 1 | 70 | 1.1 | 0.6 | 27 | 72 | 770 | 5.4 | 3.2 | 820 | 10000 | 200 |
| 23 | 1.2 | 80 | 1.3 | 0.7 | 31 | 83 | 880 | 6.2 | 3.5 | 1100 | 13000 | 250 |
| 26 | 1.3 | 91 | 1.5 | 0.8 | 35 | 94 | 1001 | 7 | 4 | 1400 | 16000 | 320 |
Packaging & Delivery:
Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
