Product Description

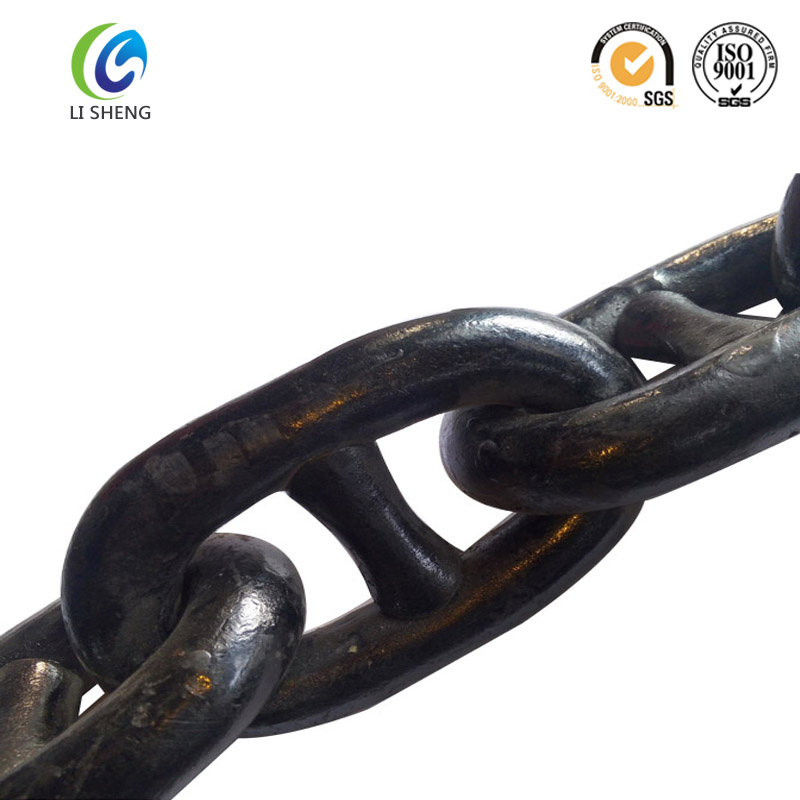

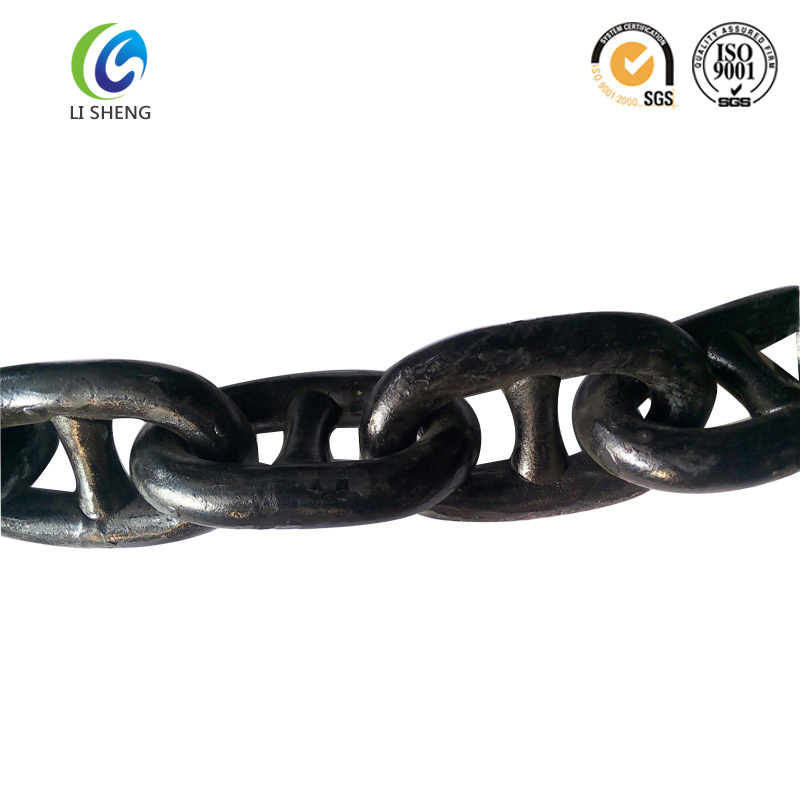

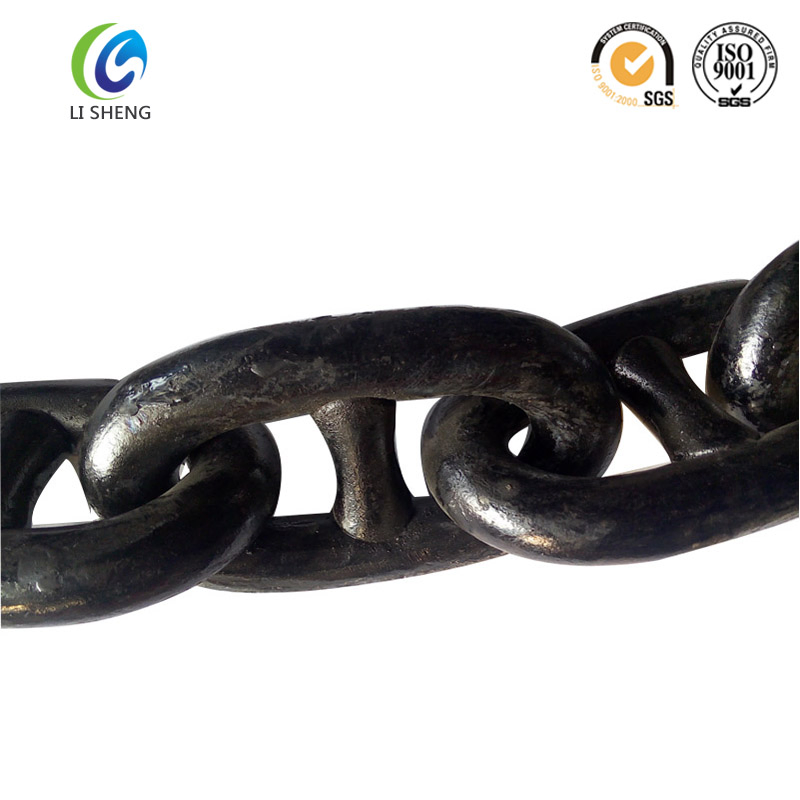

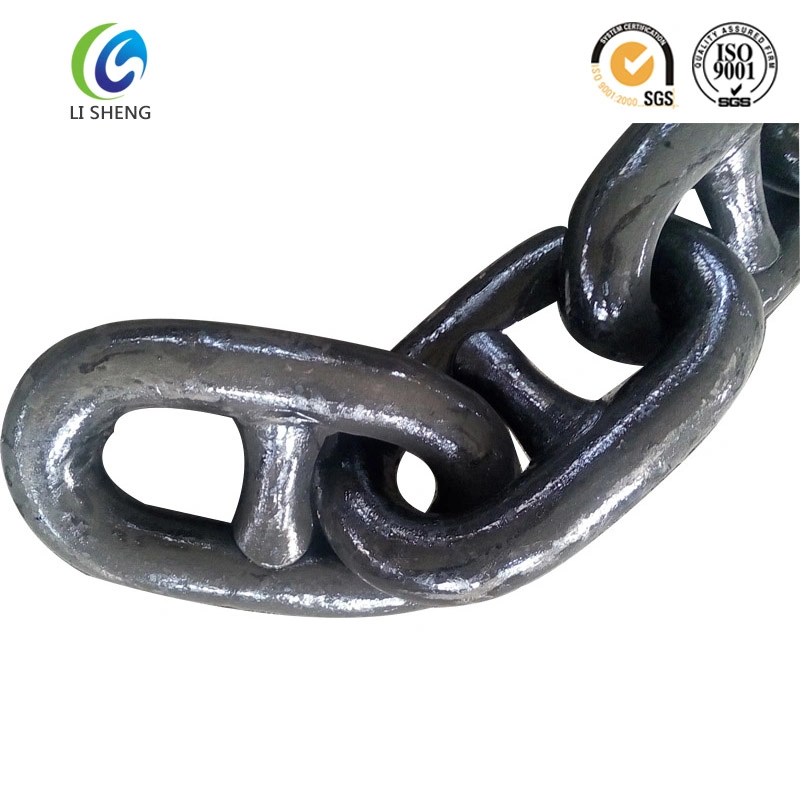

Marine Anchor Chain with CCS /ABS /BV /Dnv / Gl Certificate

PRODUCT DETAILS
Service: Your inquiry will be replied within 12 hours.
Product name: Marine Anchor Chain with CCS ABS BV DNV GL Certificate
Place of origin: Shandong, China.
Brand: LS
Material: Carton steel ( Iron, Alloy Steel 20Mn2, 25MNV).
Size:1/2-2 3/4
Surface: Electro Galivanized(Hot Dip Galivanized,
Polished, Self-color).
Grade: None
Stock: There are emergency stocks for regular sizes.
Sample
The sample is free, the freight should on your
Account before your first order.

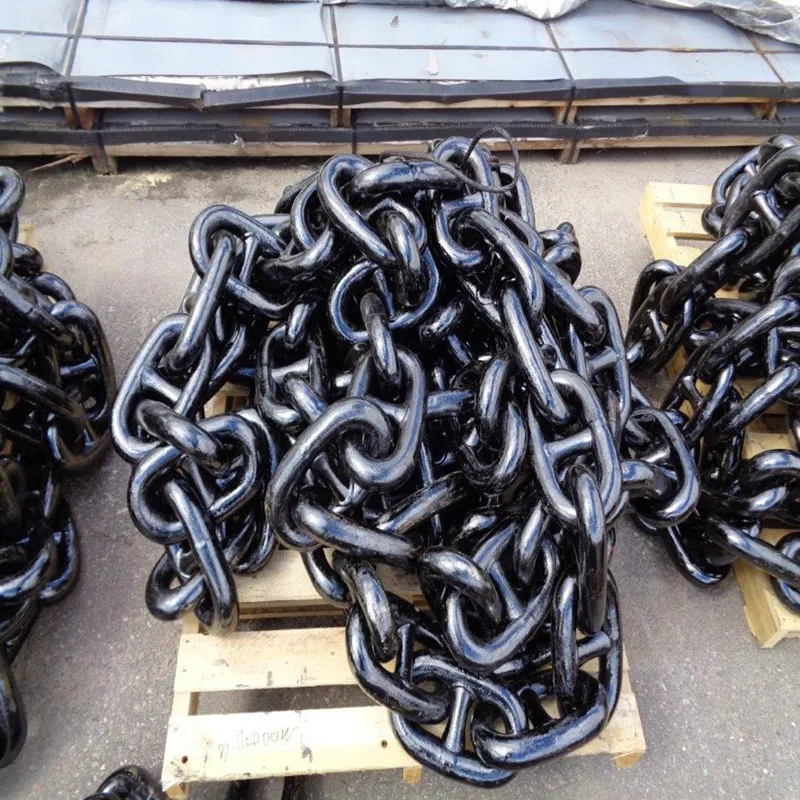

Packing method
5/50 kg one Gunny bag, several bags on one
Pallet(500kg one iron drum, 2drums on a iron
Pallet; Plastic drum+pallet; Plastic/wooden
Roll+pallet.
Payment term
30% advanced by T/T, the balance should be
Paid after see the copy of the B/L; L/C at sig-ht; Western Union.
Delivery timeUsually within 15-30days according to your required size&quantity.

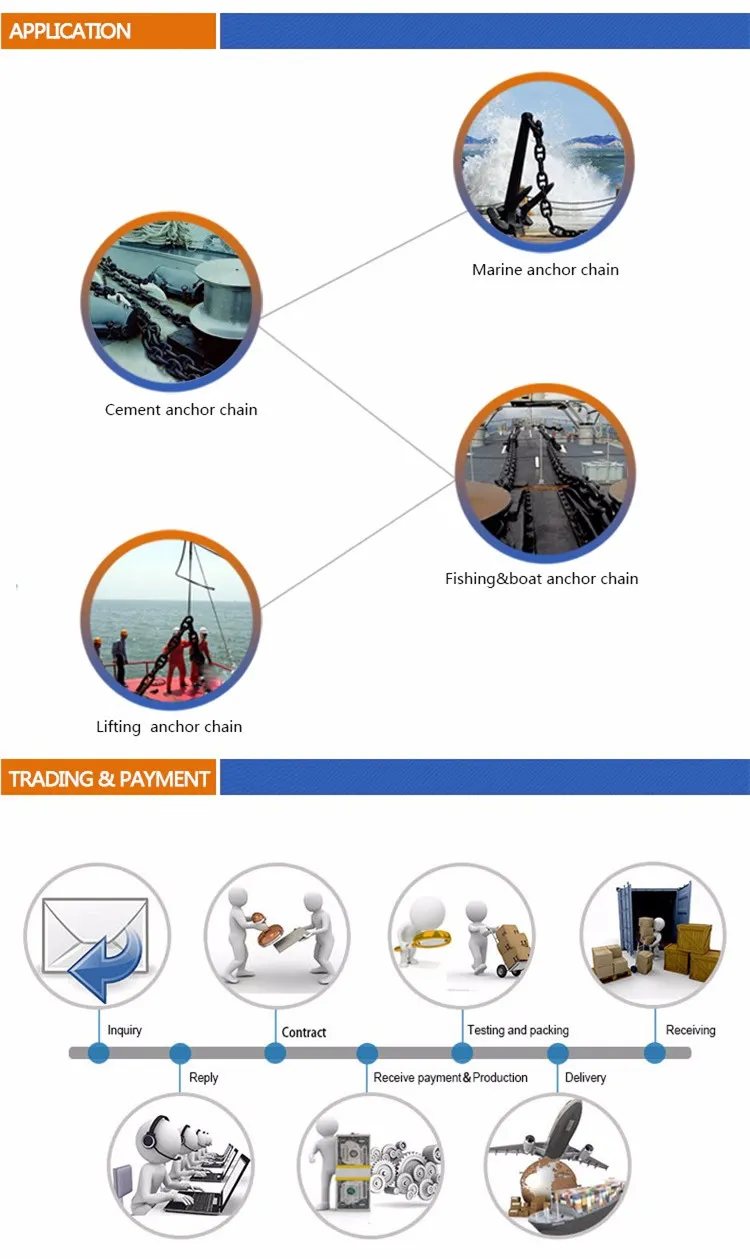

Using range
1.Marine chain 2.Fishing &boat chain;Mine chain;Cement lifting round chain.
Lisheng always lead the new development of technologies, new products
And value-added services. Over the years, link chains have been created, applied,
And enable real growth forcustomers into newmarketplaces.
Link chains are widely used in various industries.
Marine Anchor Chain with CCS /ABS /BV /Dnv / Gl Certificate

1. Decoration; Protection; Lifting; Traction etc.
2. Fishing &boat chain; Mine chain; Cement lifting round chain.
30% advanced by T/T, the balance should be paid after see the copy of the
B/L; L/C at sight; Western Union.
We have good relationship with clients around the world, we welcome your visiting.
We welcome your inquiry!

Marine Anchor Chain with CCS /ABS /BV /Dnv / Gl Certificate

Take us, take the world!

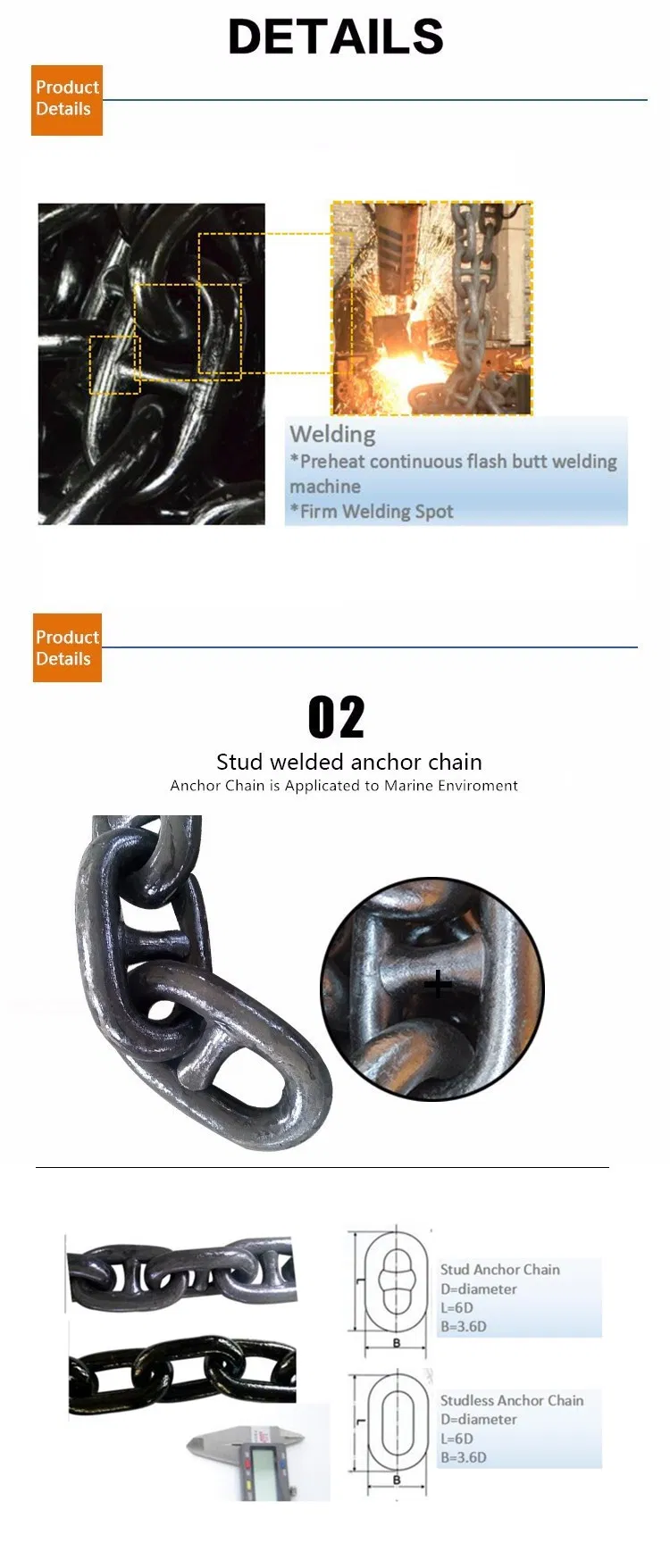

Stud and studless link anchor chain Size(6×3.6D) Proof Load Weight
Diameter		Size		U1 stud link anchor chain		U2 stud link anchor chain		U3 stud link anchor chain		Weight
D(φ)		Size		U1 stud link anchor chain		U2 stud link anchor chain		U3 stud link anchor chain		Weight
		Outside length	Outside width	Proof load	Breaking load	Proof load	Breaking load	Proof load	Breaking load	27.5M
		L	B

Inch	mm	mm	mm	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	46	66	66	92	92	132	98
9/16	14	84	50.4	58	82	82	116	116	165	119
5/8	16	96	57.6	76	107	107	150	150	216	156
11/16	17.5	105	63	89	127	127	179	179	256	186
3/4	19	114	68.4	105	150	150	211	211	301	230
13/16	20.5	123	73.8	123	175	175	244	244	349	260
7/8	22	132	79.2	140	200	200	280	280	401	300
15/16	24	144	86.4	167	237	237	332	332	476	370
1-1/16	26	156	93.6	194	278	278	389	389	556	431
1-1/8	28	168	100.8	225	321	321	449	449	642	496
1-3/16	30	180	108	257	368	368	514	514	735	564
1-1/4	32	192	115.2	291	417	417	583	583	833	635
1-5/16	34	204	122.4	328	468	468	655	655	937	712
1-7/16	36	216	129.6	366	523	523	732	732	1050	800
1-1/2	38	228	136.8	406	581	581	812	812	1160	887
1-9/16	40	240	144	448	640	640	896	896	1280	1032
1-5/8	42	252	151.2	492	703	703	981	981	1400	1084
1-3/4	44	264	158.4	538	769	769	1080	1080	1540	1197
1-13/16	46	276	165.6	585	837	837	1170	1170	1680	1310
1-7/8	48	288	172.8	635	908	908	1270	1270	1810	1438
2	50	300	180	686	981	981	1370	1370	1960	1546
2-1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661
2-1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791
2-3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926
2-5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086
2-3/8	60	360	216	969	1380	1380	1940	1940	2770	2249
2-7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361
2-1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516
2-9/16	66	396	237.6	1160	1660	1660	2310	2310	3300	2676
2-11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885
2-3/4	70	420	252	1290	1840	1840	2580	2580	3690
