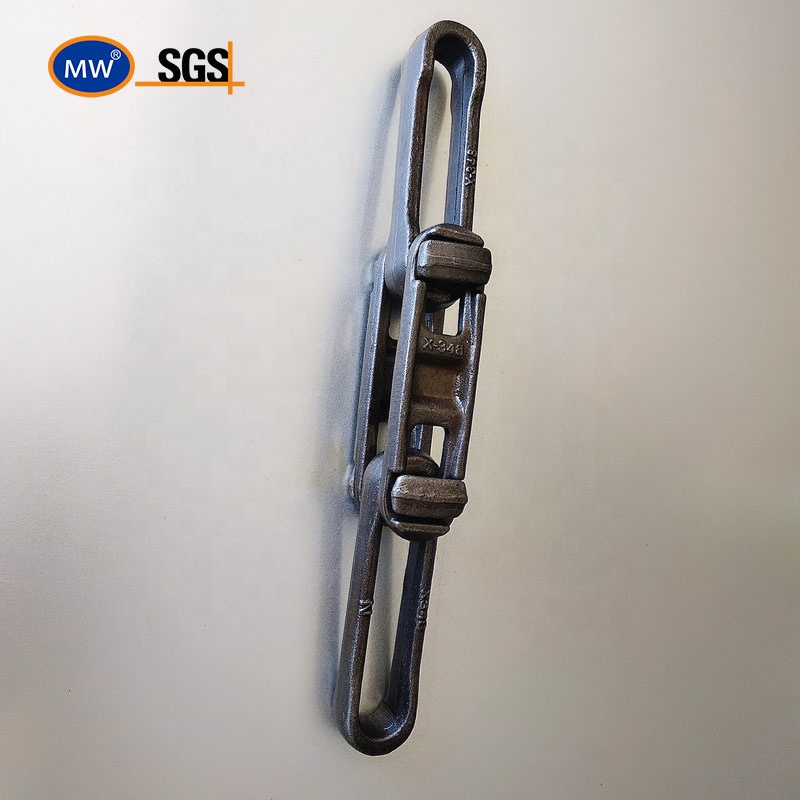

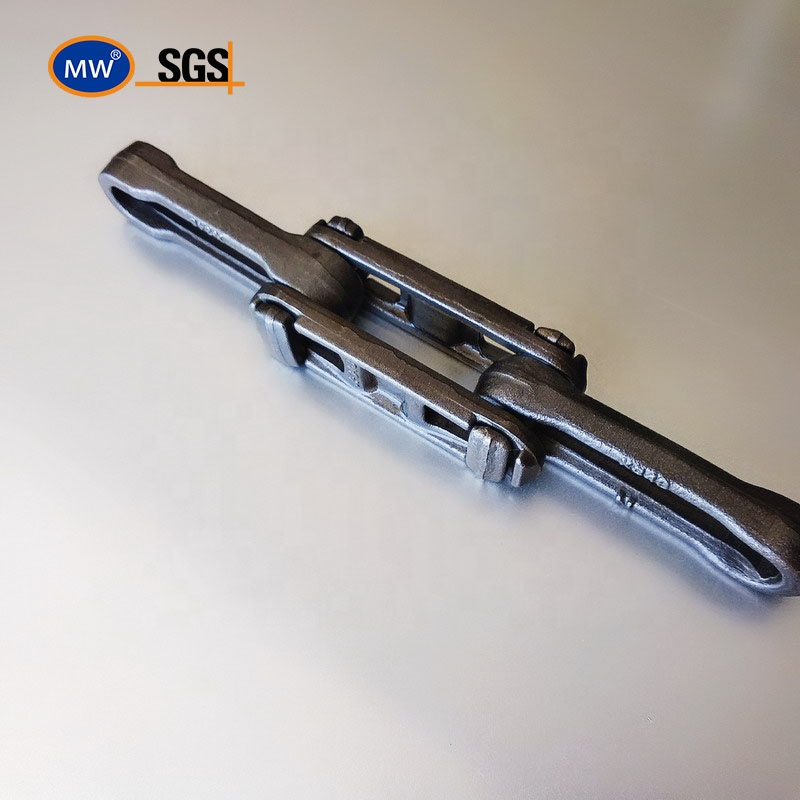

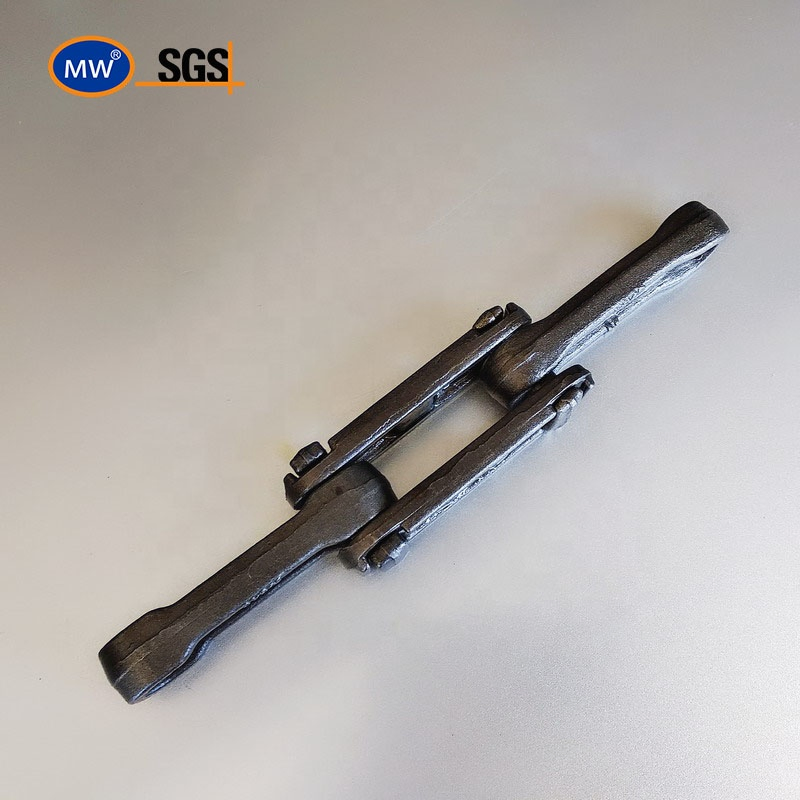

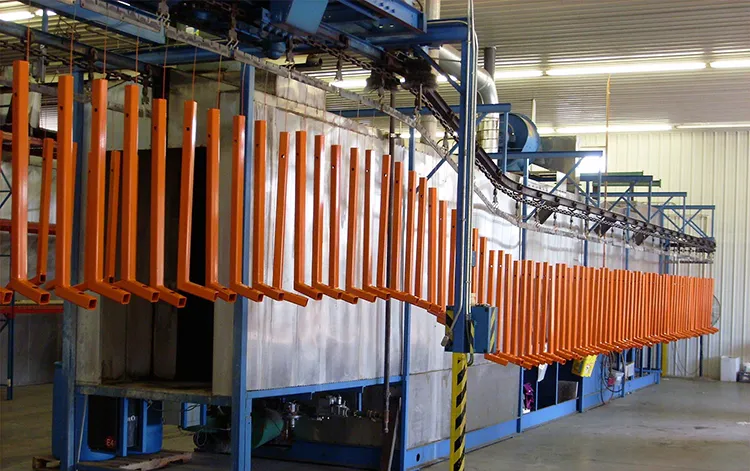

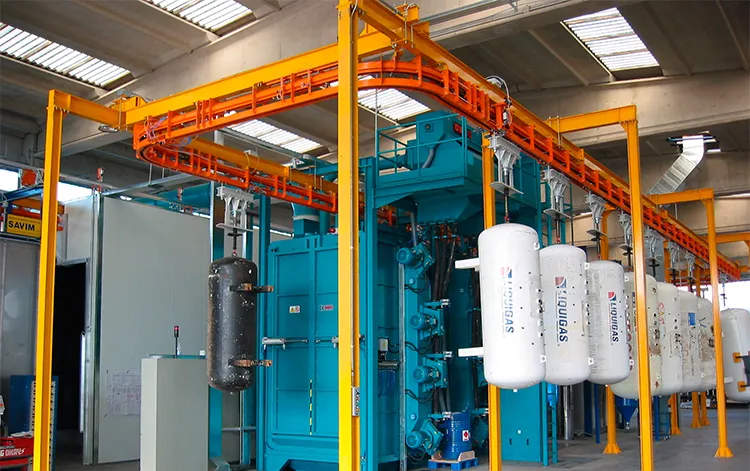

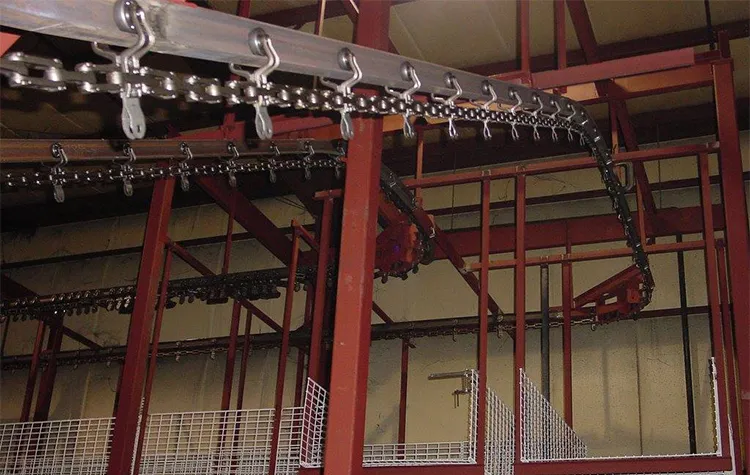

Simple Structure Hanging Drag Chain Conveyor System Winding Line Painting XT80/100/160 Standard Forge Chain For Switch Frame Painting Line
XT80 chain / load carriage
Chain pitch: t = 80 / 76.2mm
Chain tensile load: 110KN
Allowable tensile force of the chain: 10KN
Ultimate load of the carriage: 300kg
Allowable load of carriage: 125kg
Track: Worker 10 or Worker 12
Minimum horizontal turning radius: R305
Minimum vertical bending radius: R1500

XT100 chain / load carriage
Chain pitch: t = 100mm
Chain tensile load: 220KN
Allowable tension of the chain: 15KN
Limit load of carriage: 500kg
Allowable load of carriage: 250kg
Track: Worker 12 or Worker 14
Minimum horizontal turning radius: R317
Minimum vertical bending radius: R2000

XT160 chain / load carriage
Chain pitch: t = 160mm
Chain tensile load: 400KN
Allowable pull force of chain: 30KN
Ultimate load of the carriage: 800kg
Allowable load of carriage: 500kg
Track: Worker 14 or Worker 16
Minimum horizontal turning radius: R404
Minimum vertical bending radius: R3150

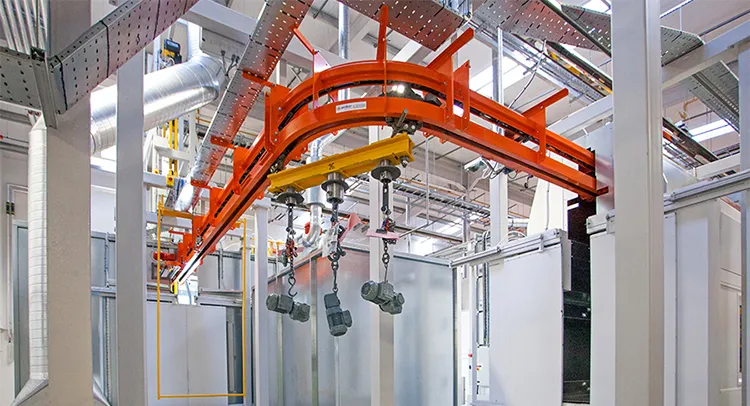

Our painting line chain have several items according to different load.

Please feel free to let us know your detail enquiry and we will offer drawing for your confirmation before confirming order. We will also send sample chain to you for your final confirmation on order.

Package: Steel pallet or wooden case

Our quality is reliable and export to Europe, USA, Canada, Japan, Korea and so on in big quantity

Please feel free to let us know your detail enquiry by return e-mail or fax
Our Drop Forged Chain and trolley can be used widely in aggregate, amusement park rides, asphalt paving, automotive industry, bakery ovens, bottling, bucket elevators, car dumper, car wash, case conveyors, cement plants, citrus processing, clean grain and return elevators, coal preparation, construction equipment, conveyors, cotton tramper, dairy handling, fertilizer conveying, flight conveyors, food processing, forest products, grain handling, heavy duty conveyors, high-temperature industrial ovens, jack ladder, log handling, material handling, meat packing, mining, overhead conveyors, power drives, produce washdown, pulp and paper, recycling, refineries, roofing plants, rubber manufacturing, stackers, steel mills, sugar harvesting, sugar processing, trolle, conveyors, utilities, water treatment

Material	Alloy steel
Process	Assembled
Heat treatment	Case hardening, Meshbeltfurnace quenching heat treatment
Surface treatment	Blackened, Zinc galvanized, Nickel galvanized, Chroming, Colour Painting, or as per customer's request
Performance	High precision, high wear resistance, low noise, smooth and steady, high strength
Model number	P142, P142V , P142H , P200 , P102 , P260 , P250
Packaging	Plastic bag ,carton box ,plywood case or customer requirement.
