Supply Black Oxidated 13mm G80 Steel Chain
Supply black oxidated 13mm G80 Steel ChainFactory Supply 6mm EN818-2 G80 lifting chainG80 load chain specifications:Size(mm)Inside Width(mm)Outside Width(mm)Approx Weight KG/MW.L.L. TonTest Load KNB.L. KN6 x 187.521.00.791.12745.27 x 219.024.51.071.53761.68 x 2410.028.01.382.04880.410 x 3012.535.02.......
Send Inquiry
Product Description
Supply black oxidated 13mm G80 Steel Chain
Factory Supply 6mm EN818-2 G80 lifting chain
G80 load chain specifications:

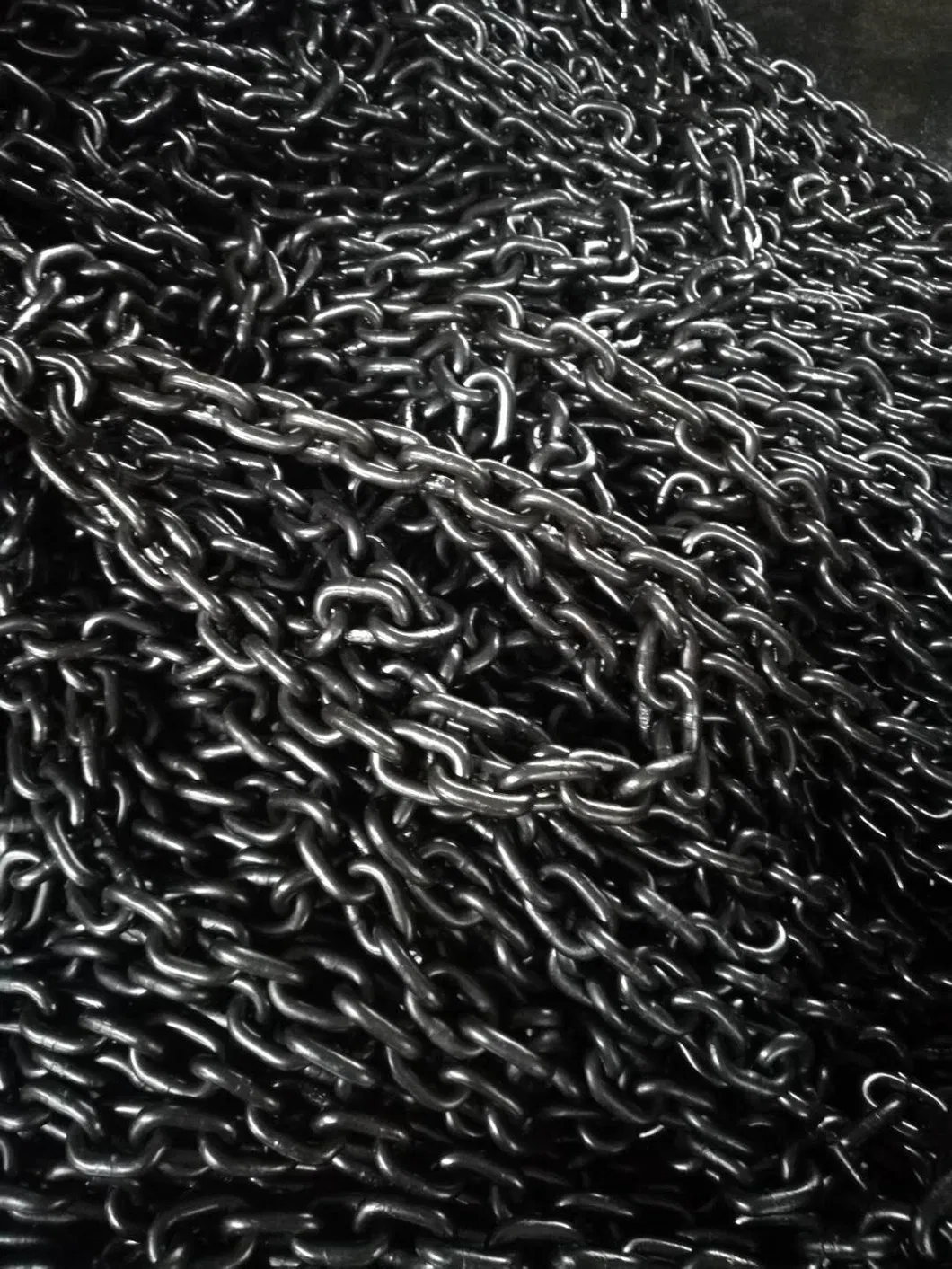

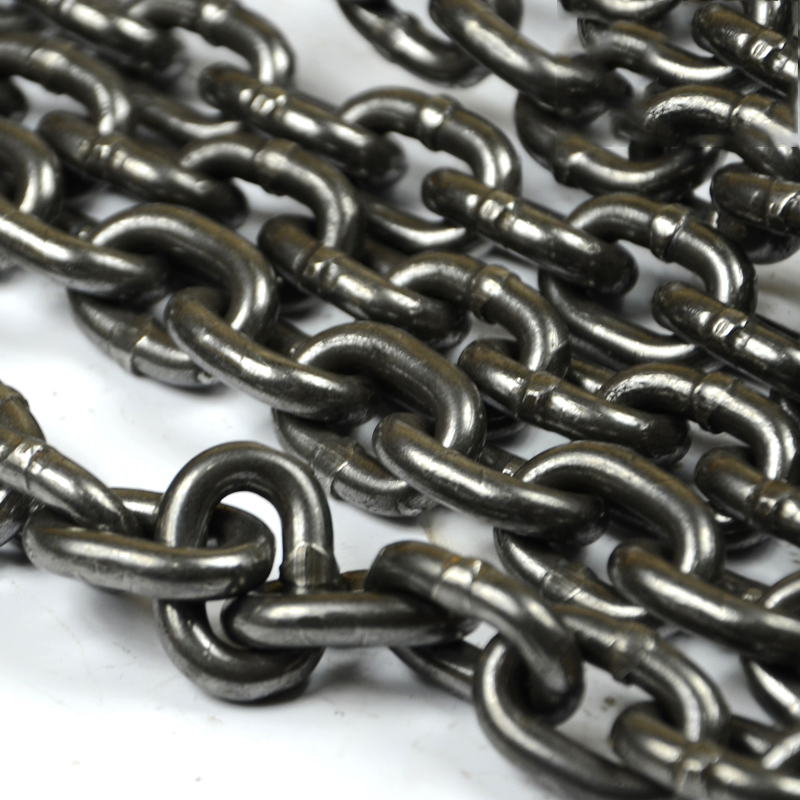

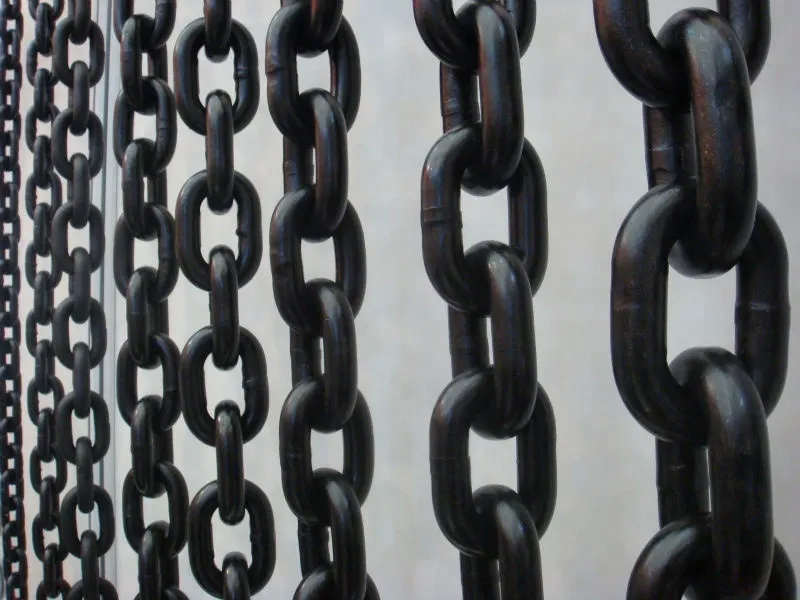

G80 load chain display:
G80 lifting chain packing:
We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.
As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our jiazhong lifting means,jiazhong hoist chains,jiazhong Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.
Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant the ideal choice for you.
For more any questions about the G80 load chain please feel free to contact us or send us email!
008618132767693
G80 load chain specifications:
| Size(mm) | Inside Width(mm) | Outside Width(mm) | Approx Weight KG/M | W.L.L. Ton | Test Load KN | B.L. KN |
| 6 x 18 | 7.5 | 21.0 | 0.79 | 1.1 | 27 | 45.2 |
| 7 x 21 | 9.0 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
| 8 x 24 | 10.0 | 28.0 | 1.38 | 2.0 | 48 | 80.4 |
| 10 x 30 | 12.5 | 35.0 | 2.20 | 3.2 | 76 | 125 |
| 12 x 36 | 15.0 | 42.0 | 3.10 | 4.6 | 109 | 181 |
| 13 x 39 | 16.3 | 46.0 | 3.80 | 5.0 | 128 | 214 |
| 16 x 48 | 20.0 | 56.0 | 5.63 | 8.0 | 192 | 320 |
| 16 x 49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |

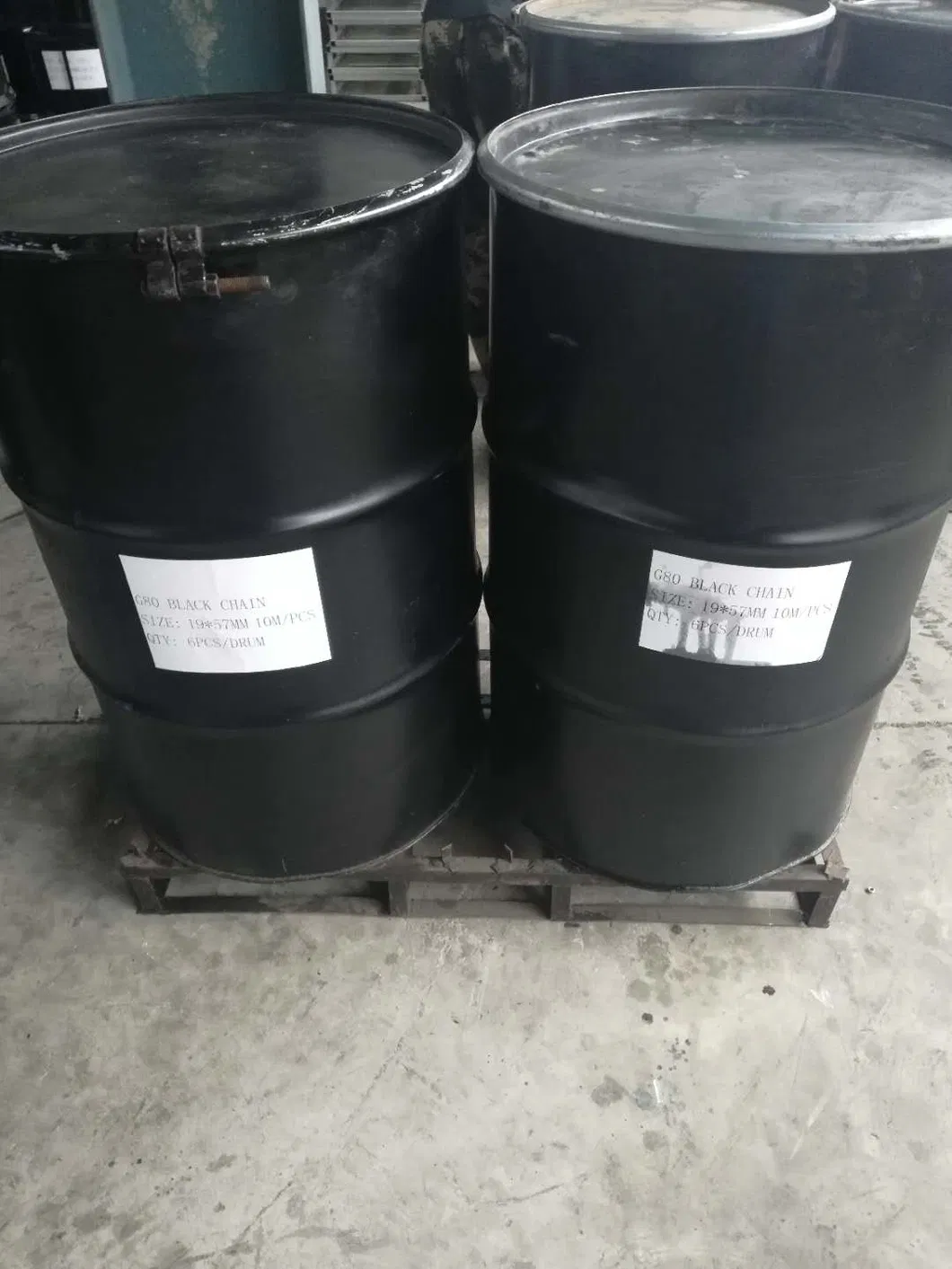

G80 lifting chain packing:
We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ12), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.
As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our jiazhong lifting means,jiazhong hoist chains,jiazhong Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.
Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant the ideal choice for you.
For more any questions about the G80 load chain please feel free to contact us or send us email!
008618132767693
