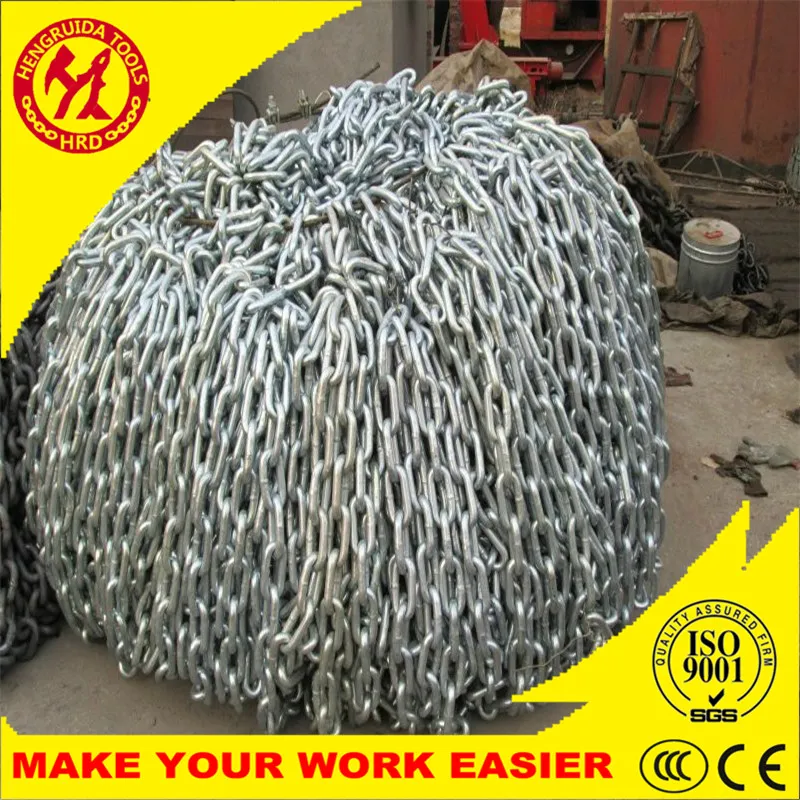

Welded Zinc Plated DIN763 Link Chain Q235 Chain
DIN5685A/C Short/Long Link Chain:SizeInside LengthOutside WidthWeight Per 100MWorking LoadBreaking LoadGradeMMMMMMKGNN212228765001250AC2.514241011107502000AC316261216.51511202800AC3.518281422.52015003850AC4193216302720005000AC4.520341839.53525006300AC5213520504331507750AC5.52338.52260.55238009500AC6......
Send Inquiry
Product Description
DIN5685A/C Short/Long Link Chain:
| Size | Inside Length | Outside Width | Weight Per 100M | Working Load | Breaking Load | Grade | |||
| MM | MM | MM | KG | N | N | ||||
| 2 | 12 | 22 | 8 | 7 | 6 | 500 | 1250 | A | C |
| 2.5 | 14 | 24 | 10 | 11 | 10 | 750 | 2000 | A | C |
| 3 | 16 | 26 | 12 | 16.5 | 15 | 1120 | 2800 | A | C |
| 3.5 | 18 | 28 | 14 | 22.5 | 20 | 1500 | 3850 | A | C |
| 4 | 19 | 32 | 16 | 30 | 27 | 2000 | 5000 | A | C |
| 4.5 | 20 | 34 | 18 | 39.5 | 35 | 2500 | 6300 | A | C |
| 5 | 21 | 35 | 20 | 50 | 43 | 3150 | 7750 | A | C |
| 5.5 | 23 | 38.5 | 22 | 60.5 | 52 | 3800 | 9500 | A | C |
| 6 | 24 | 42 | 24 | 73 | 63 | 4500 | 11500 | A | C |
| 6.5 | 26 | 45.5 | 26 | 86 | 74 | 5400 | 13500 | A | C |
| 7 | 28 | 49 | 28 | 100 | 86 | 6000 | 15000 | A | C |
| 8 | 32 | 52 | 32 | 130 | 100 | 8000 | 20000 | A | C |
| 8.5 | 34 | 56 | 34 | 149 | 125 | 9000 | 22500 | A | C |
| 9 | 36 | 59 | 36 | 165 | 141 | 10000 | 25000 | A | C |
| 10 | 40 | 65 | 40 | 205 | 175 | 12500 | 31000 | A | C |
| 11 | 44 | 72 | 44 | 250 | 211 | 15000 | 38000 | A | C |
| 12 | 48 | 78 | 48 | 290 | 255 | 18000 | 45000 | A | C |
| 13 | 52 | 82 | 52 | 345 | 295 | 21200 | 53000 | A | C |
We can offer u all kinds of link chain:
1)DIN5685A/C,DIN764,DIN763,DIN766,DIN5686 Link Chain
2)Ordinary Short,Medium Link Chain
3)Korean Standard Link Chain
4)ASTM80 Standard Link Chain
5)Norwegian Standard Link Chain
6)Australian Standard Link Chain
7)NACM1990 Standard Link Chain
8)NACM1996/2003 Standard Link Chain
9)Animal Link Chain
10)Stainless Steel Link Chain
11)Weldless Link Chain
12)G80 Link Chain
13)G43 Link Chain
