Heavy Duty Oil Drum Steel Lifting Clamp with Yqc Type
YQC Type Drum Clamp* The YQC drum clamp has been designed to lift and transport drums in the vertical position. * One clamp can be used to lift drums with or without their lids by gripping the rim of the drum.* Its light weight and small overall design makes it ideal for picking up drums that sit ti......
Send Inquiry
Product Description

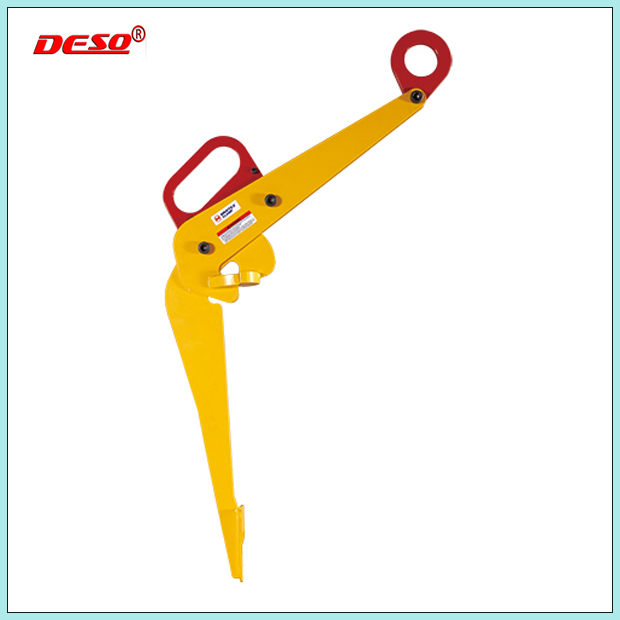

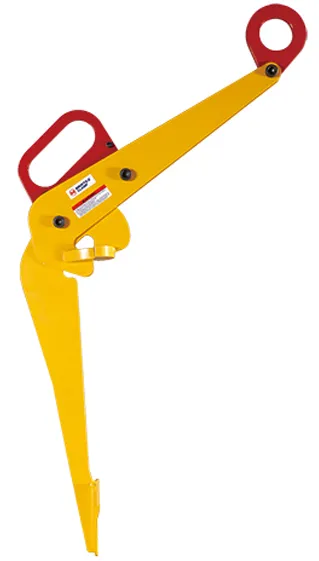

YQC Type Drum Clamp

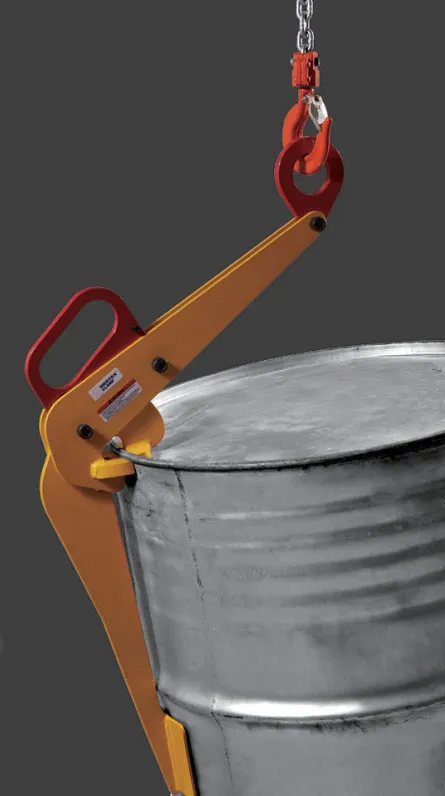

* The YQC drum clamp has been designed to lift and transport drums in the vertical position.
* One clamp can be used to lift drums with or without their lids by gripping the rim of the drum.
* Its light weight and small overall design makes it ideal for picking up drums that sit tightly on pallets.
* The centre of gravity of the drum is the lifting point during transportation.
* The YQC is also available with a lock on open latch.
Technical Data Sheet
Related Products
If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
* The YQC drum clamp has been designed to lift and transport drums in the vertical position.
* One clamp can be used to lift drums with or without their lids by gripping the rim of the drum.
* Its light weight and small overall design makes it ideal for picking up drums that sit tightly on pallets.
* The centre of gravity of the drum is the lifting point during transportation.
* The YQC is also available with a lock on open latch.
 |
|

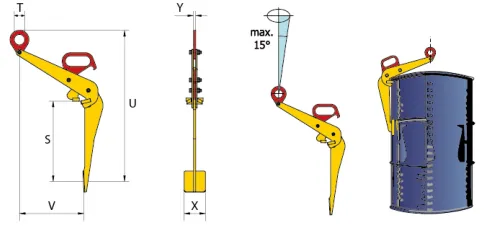

Technical Data Sheet
| Model | Load Capacity (kg) | U (mm) | S (mm) | V (mm) | T (mm) | X (mm) | Y (mm) | Weight (kg) |
| YQC-0.6 | 600 | 765 | 434 | 305 | 50 | 100 | 10 | 7 |
