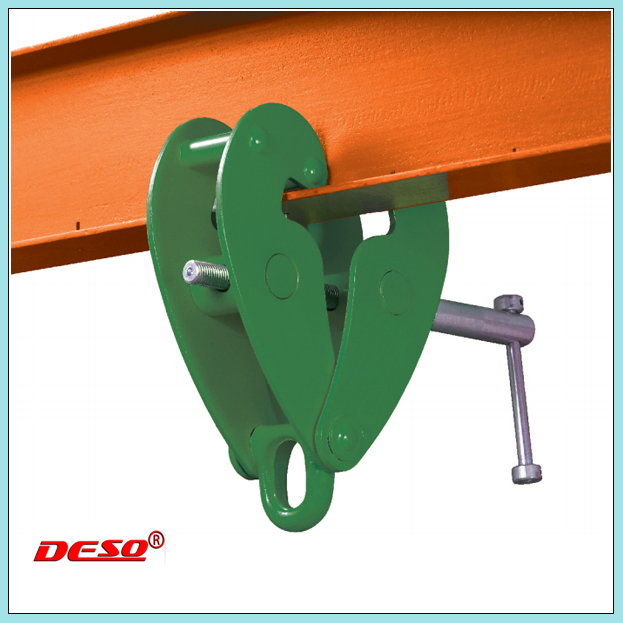

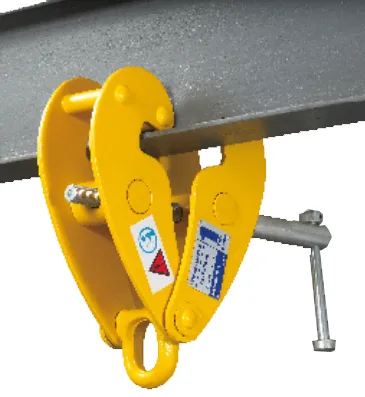

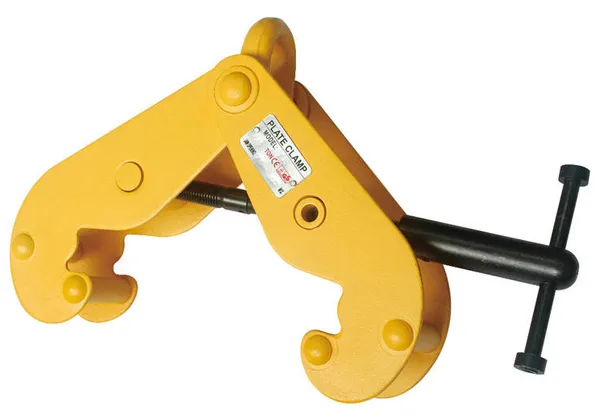

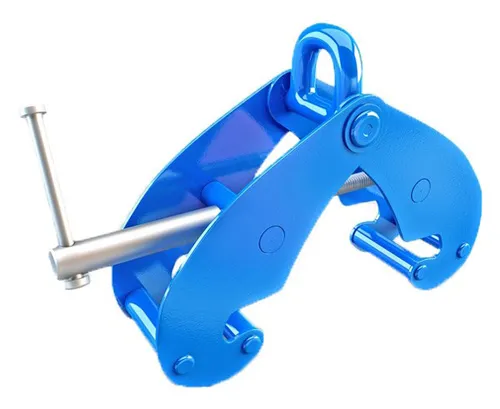

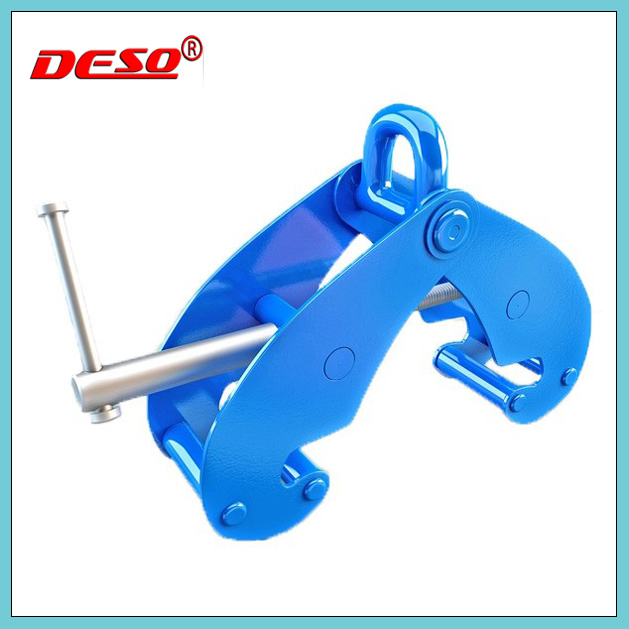

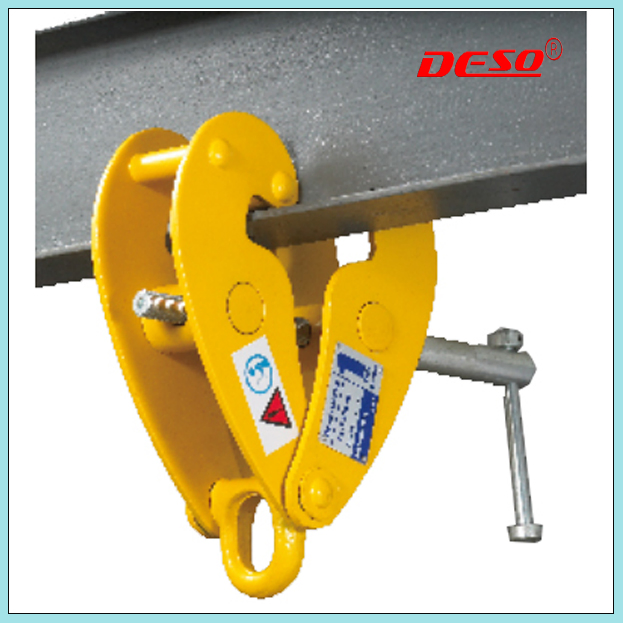

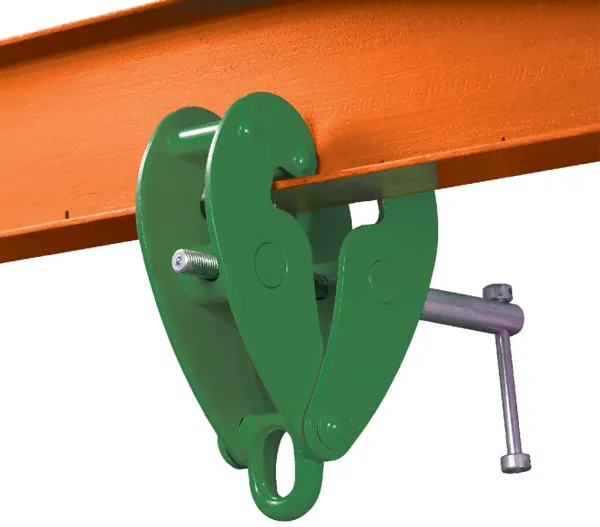

Steel Lifting Beam Clamp with Ring Ys Type
YS Type Beam Clamp Act as lifting point for hoisting equipment, pulley blocks or loads. Robust all steel construction with safety operation. Compact design with light weight. Flexible application due to wide adjustment range. Central threaded spindle for easy attachment and a safe and secure grip. T......
Send Inquiry
Product Description
YS Type Beam Clamp
• Act as lifting point for hoisting equipment, pulley blocks or loads.
• Robust all steel construction with safety operation.
• Compact design with light weight.
• Flexible application due to wide adjustment range.
• Central threaded spindle for easy attachment and a safe and secure grip.
• The spindle secured against loosening.
• Beam clamp with shackle is available upon request.
If you have any questions or need more details, please feel free to contact us, we are more than pleased to do any help. Thanks!
• Act as lifting point for hoisting equipment, pulley blocks or loads.
• Robust all steel construction with safety operation.
• Compact design with light weight.
• Flexible application due to wide adjustment range.
• Central threaded spindle for easy attachment and a safe and secure grip.
• The spindle secured against loosening.
• Beam clamp with shackle is available upon request.
 |
|

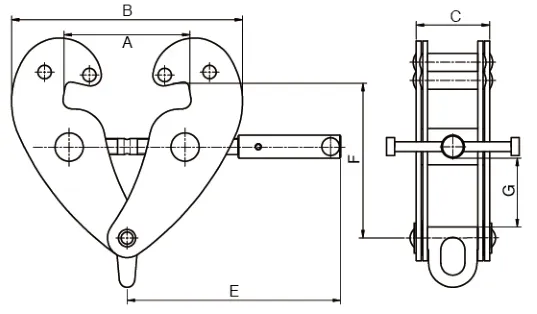

| Model | Load Capacity (ton) | Test Load (kN) | I-Beam Width Range (mm) | A (mm) max. | B (mm) | C (mm) | E (mm) | F (mm) | G (mm) | Net Weight (kg) | ||
| min. | max. | min. | max. | |||||||||
| YS1 | 1 | 12.3 | 75~230 | 260 | 180 | 360 | 64 | 215 | 102 | 155 | 25 | 3.8 |
| YS2 | 2 | 24.5 | 75~230 | 290 | 185 | 400 | 85 | 215 | 90 | 165 | 25 | 5 |
| YS3 | 3 | 36.8 | 80~320 | 354 | 235 | 490 | 103 | 260 | 140 | 225 | 45 | 9 |
| YS5 | 5 | 61.3 | 80~310 | 354 | 235 | 490 | 110 | 260 | 140 | 225 | 45 | 11 |
| YS10 | 10 | 122.5 | 90~320 | 365 | 320 | 505 | 120 | 280 | 170 | 235 | 50 | 18.6 |
If you have any questions or need more details, please feel free to contact us, we are more than pleased to do any help. Thanks!
