Product Description

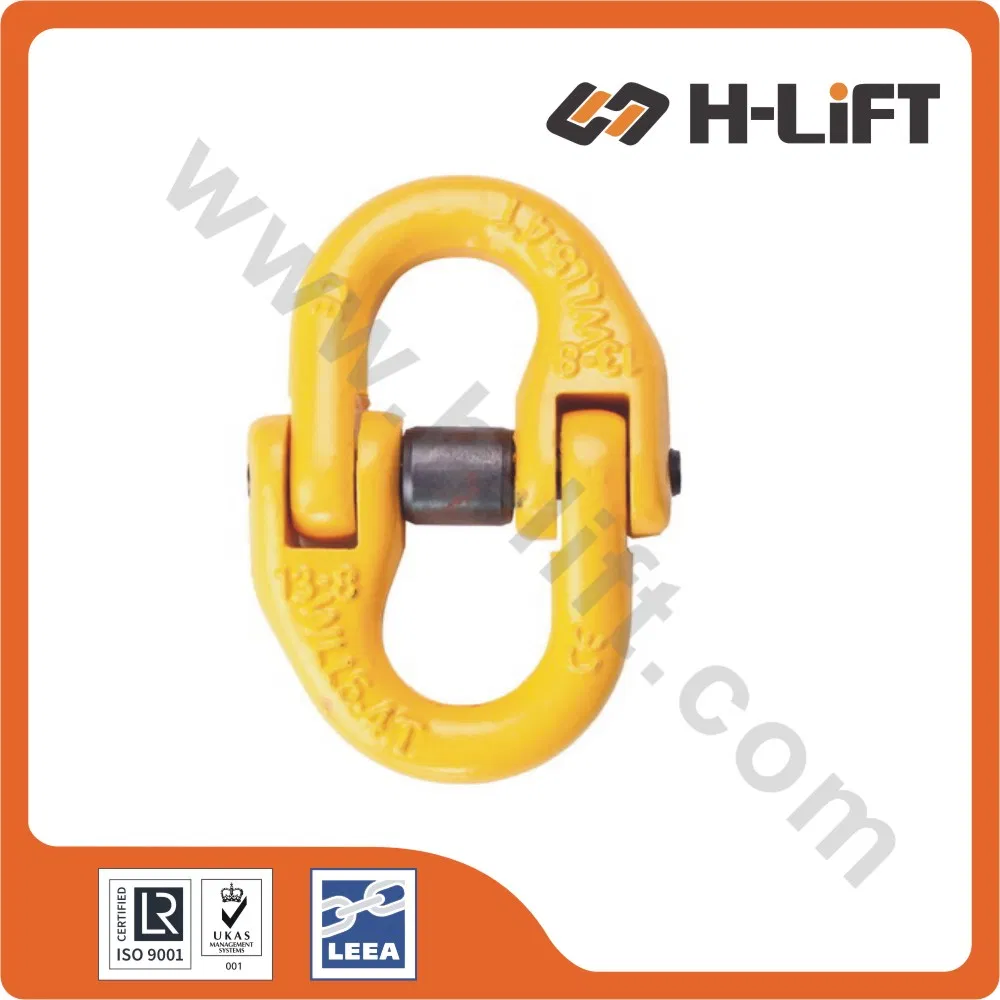

Grade 80 Connecting Link / Coupling Link / Hammerlok / Connector

1. To EN1677
2. Materials: Forged Alloy steel (quenched and tempered)
3. Surface treatment: Color-painted, self-colored,
4. B. L= 4 times of WLL
5. Full tracebility
6. Proof tested to 2 ½ Times working load limit
7. Packing: Packed in cartons with plastic bags inside on iron pallets

Item	Chain Size	WLL	Main Dimensions				WEIGHT
Item	mm	ton	A	L	K	H	KG
8-CNL-06	6	1.12	15	58	42	7	0.08
8-CNL-07	7	1.5	19	71.8	54.8	8.5	0.145
8-CNL-7/8	7+8	2	18	79.5	62.5	8.5	0.146
8-CNL-08	8	2	18	79.5	60.5	8.5	0.16
8-CNL-10	10	3.15	25	93	68	10.8	0.3
8-CNL-13	13	5.3	29	117	87	15	0.7
8-CNL-16	16	8	34.5	148	108.4	19.8	1.1
8-CNL-18	18	10	38	154	112	21	1.84
8-CNL-18/20	18+20	12.5	41	159.5	121.5	24	1.8
8-CNL-22	22	15	48	193.5	141.5	26	3.2
8-CNL-26	26	21.2	57.5	220	158	30	4.5
8-CNL-32	32	31.5	67	281	205	37	9

Grade 80 Connecting Link / Coupling Link / Hammerlok / Connector

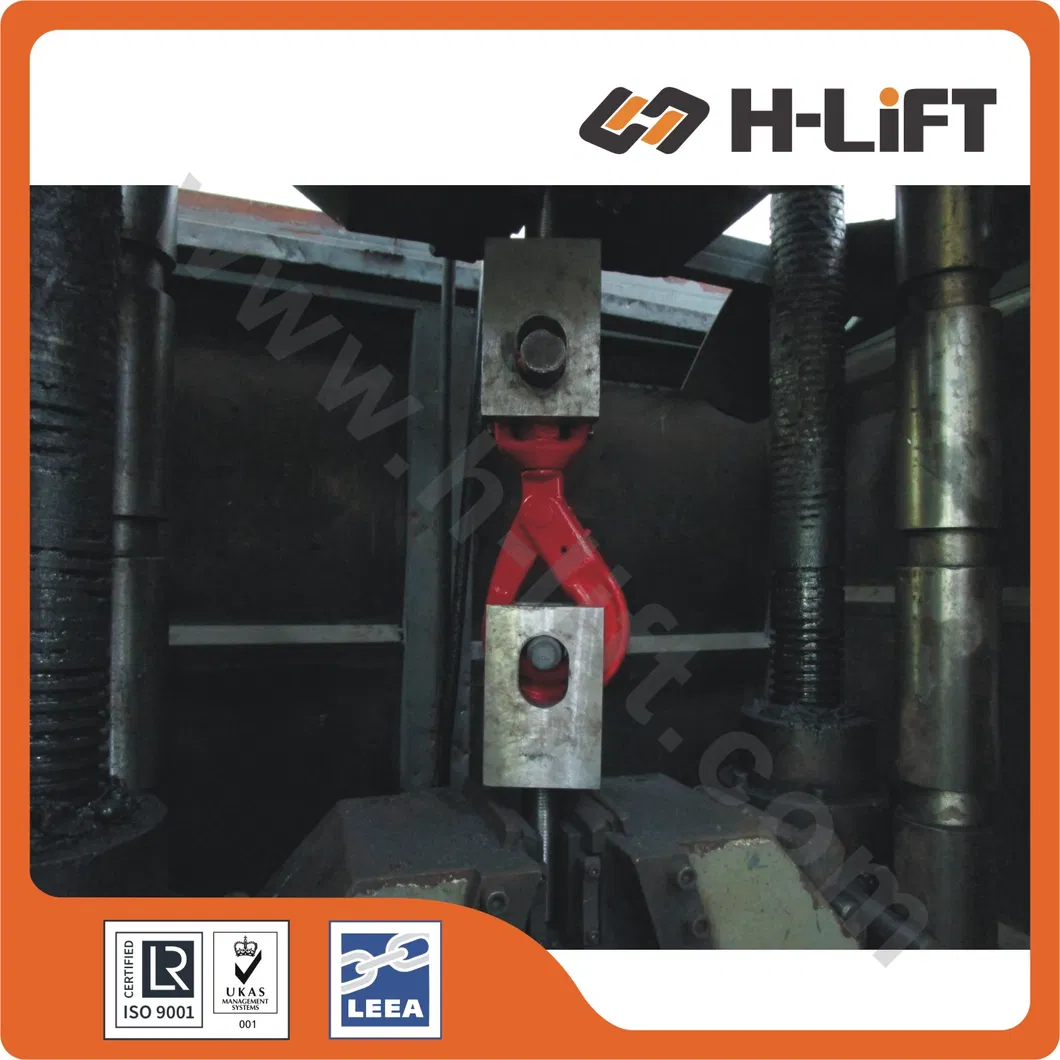

Break Testing

Company information:

SINCE 2002
H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
