Product Description

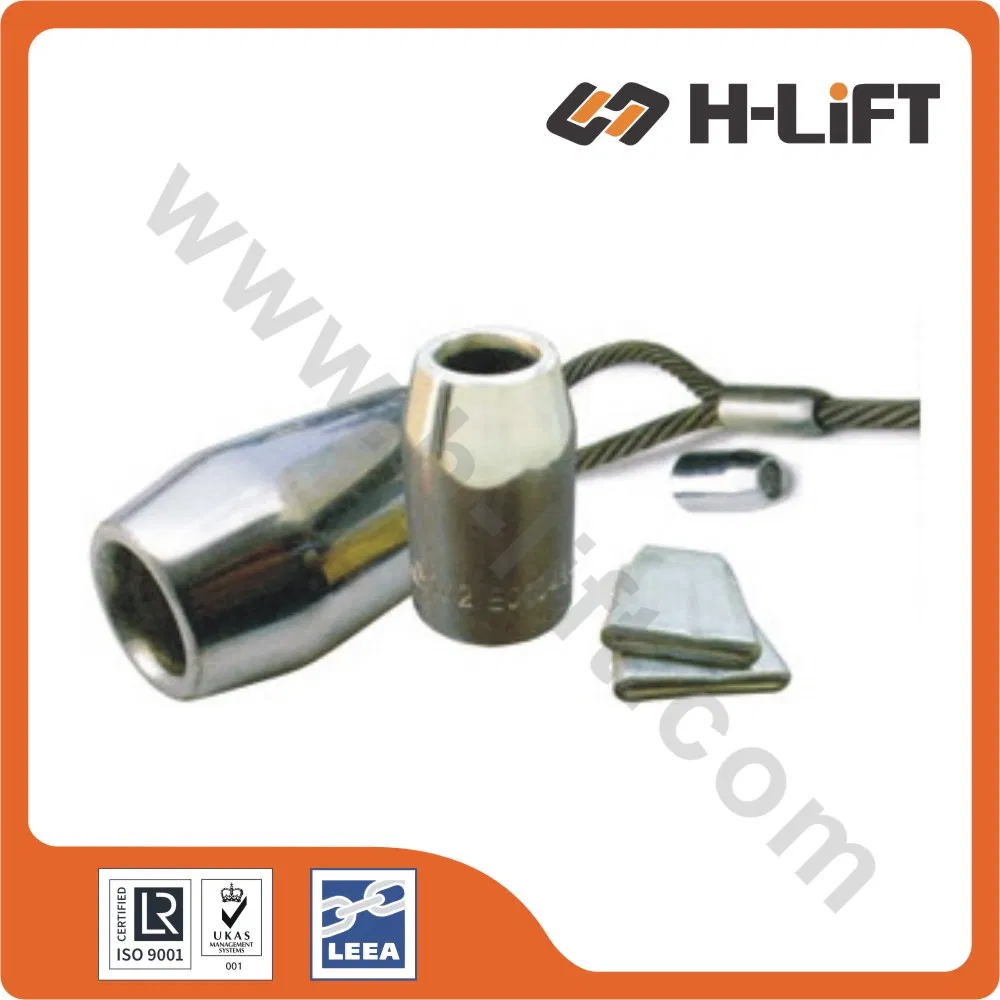

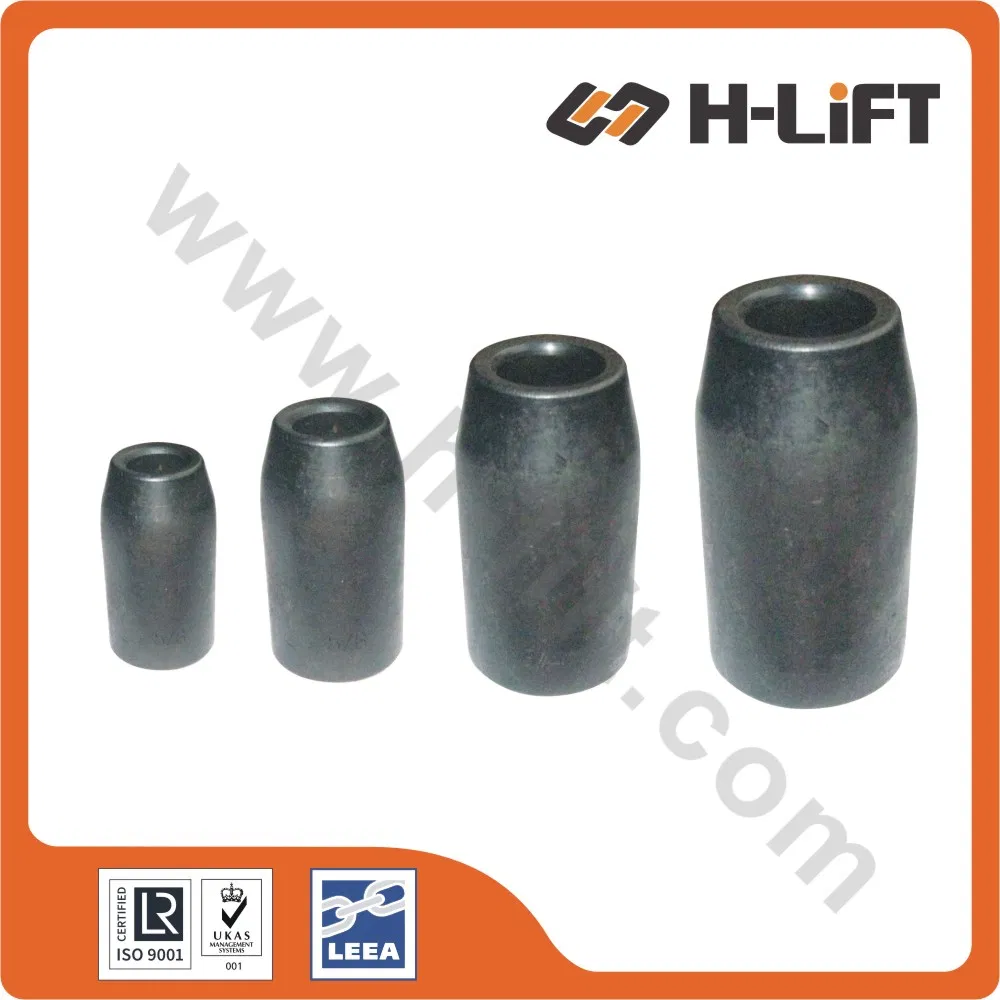

H-Lift FLEMISH EYE STEEL SWAGING SLEEVES
1. For securing wire rope assemblies.
2. Size Max: 1/4"~6"
3. Material: Steel

ITEM	SIZE (Inch)	Dimensions(Inch)					Max. after Swage Dimensions	Weight
ITEM	SIZE (Inch)	A	B	D	E	C	inch	kg/1000pcs
FES0104	1/4	1	0.66	0.31	0.28	0.47	0.57	0.32
FES0516	5/16	1.5	0.91	0.38	0.44	0.62	0.75	6.36
FES0308	3/8	1.5	0.91	0.47	0.39	0.66	0.75	6.36
FES0716	7/16	2	1.22	0.53	0.65	0.85	1.01	15
FES0102	1/2	2	1.22	0.63	0.56	0.91	1.01	13
FES0916	9/16	2.75	1.47	0.7	0.63	1.03	1.24	29
FES0508	5/8	2.75	1.47	0.75	0.63	1.09	1.24	26
FES0304	3/4	3.19	1.72	0.91	0.84	1.28	1.46	40
FES0708	7/8	3.56	2.03	1.03	1	1.53	1.68	60
FES1000	1	4	2.28	1.16	1.13	1.72	1.93	89
FES1108	1-1/8	4.8	2.5	1.28	1.25	1.94	2.13	118
FES1104	1-1/4	5.19	2.78	1.44	1.41	2.16	2.32	161
FES1308	1-3/8	5.81	3	1.56	1.56	2.38	2.52	192
FES1102	1-1/2	6.25	3.25	1.69	1.69	2.63	2.71	227
FES1304	1-3/4	7.25	3.84	1.94	1.97	3.13	3.1	366
FES2000	2	8.5	4.38	2.25	2.25	3.63	3.56	514
FES2104	2-1/4	9.56	5.03	2.5	2.53	4.03	4.1	879
FES2102	2-1/2	10.5	5.5	2.75	2.81	4.5	4.5	1068
FES2304	2-3/4	11.5	5.75	3	3.09	4.75	4.7	1271
FES3000	3	12	6	3.25	3.38	5	4.96	1335
FES3104	3-1/4	13	6.5	3.86	3.54	5.43	5.37	1650
FES3102	3-1/2	14	7	3.88	3.94	5.84	5.77	2106
FES3304	3-3/4	15	7.5	4.06	4.25	6.31	6.23	2497
FES4000	4	16	8.13	4.38	4.5	6.81	6.69	3087
FES4102	4-1/2	18	9.13	4.88	5.06	7.66	7.45	4540
FES5000	5	20	10.52	5.5	5.63	8.73	8.28	6600
FES6000	6	24	12.54	6.5	6.75	10.2	9.93	12300

Frequently Asked Questions

Q1. How often should lifting equipments be subject to thorough examantions?

Thorough examination of lifting equipment must take place every 12 months - or every 6 months if the equipment is used to lift people. Any accessories used in lifting should also be inspected every 6 months. These are the minimum requirements, where there is no formal 'examination scheme' drawn up by a competent person.

Q2. What is a competent person ?

A competent person is someone who has appropriate practical and theoretical knowledge and experience of the equipment for which they act as 'competent person'. This knowledge and experience can help them detect defects / weaknesses and assess whether they will affect the continued safe use of the equipment.

Q3. Does new lifting equipment have to be thoroughly examined before use ?

You must have lifting equipment examined in the following circumstances:

Before using it for the first time - unless the equipment has an EC Declaration of Conformity which is less than one year old and the lifting equipment was not assembled on site. If it was assembled on site, it must be examined by a competent person to confirm that the assembly was correct and safe.
After assembly, and before use at each location - for all lifting equipment that requires assembly or installation before use (eg tower crane) - to ensure it has been installed correctly and is safe for use
