Product Description

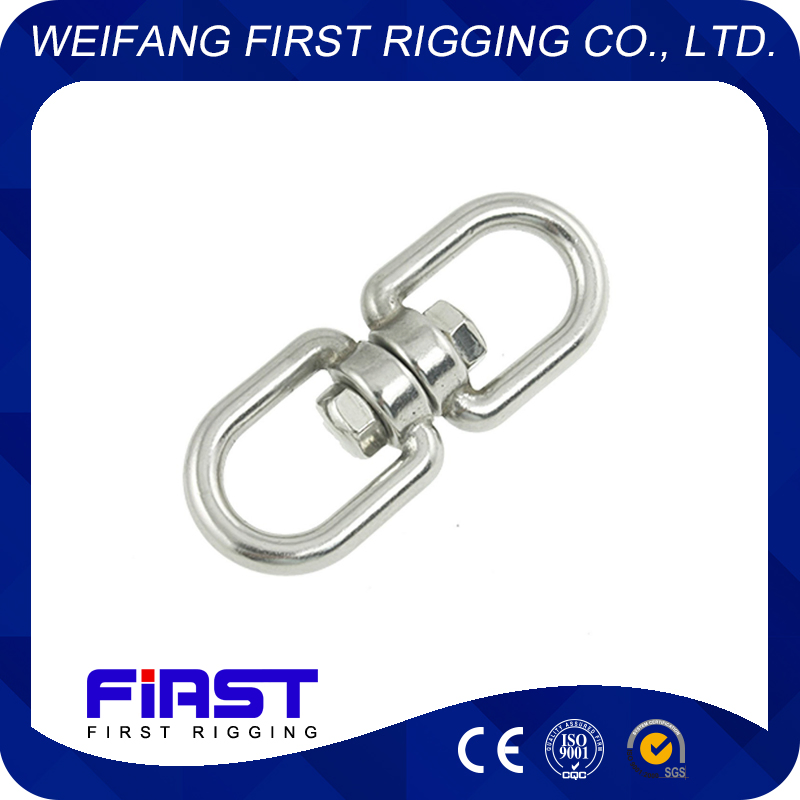

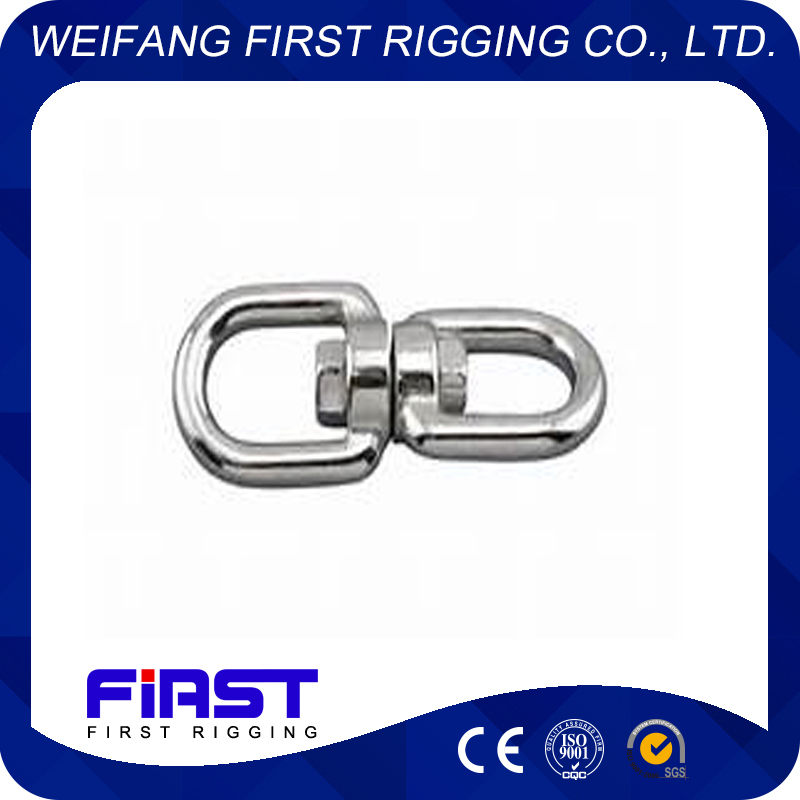

Swivel Eye and Eye from Chinese Manufacturer
Size:5-25
Size:5-25
Material: Stainless Steel,Brass,iron
Surface treatment: Zinc Plated,Electric Galvanized, Polishing
Application: Ship, iron and steel industry, petroleum chemical industry, coal mine
Technical Specification:
| SIZE | A | B | C | D | L | W.L.L. | N.W. |
| mm | mm | mm | mm | mm | mm | LBS | g/pcs |
| 5 | 23 | 13 | 13 | 5 | 60 | 800 | 40 |
| 6 | 27 | 15 | 15 | 6 | 65 | 600 | 50 |
| 8 | 36 | 20 | 22 | 8 | 90 | 1100 | 120 |
| 10 | 44 | 24 | 27 | 10 | 115 | 1540 | 250 |
| 13 | 58 | 32 | 35 | 13 | 154 | 2640 | 620 |
| 16 | 71 | 39 | 45 | 16 | 188 | 4750 | 950 |
| 19 | 80 | 41 | 50 | 19 | 231 | 7100 | 2080 |
| 22 | 91 | 47 | 52 | 22 | 254 | 9600 | 2250 |
| 25 | 113 | 63 | 67 | 25 | 295 | 11900 | 4450 |
Packaging & Delivery:
Packing details:
Bulk packing
Poly Bag and Carton
According to your requirements
Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.
