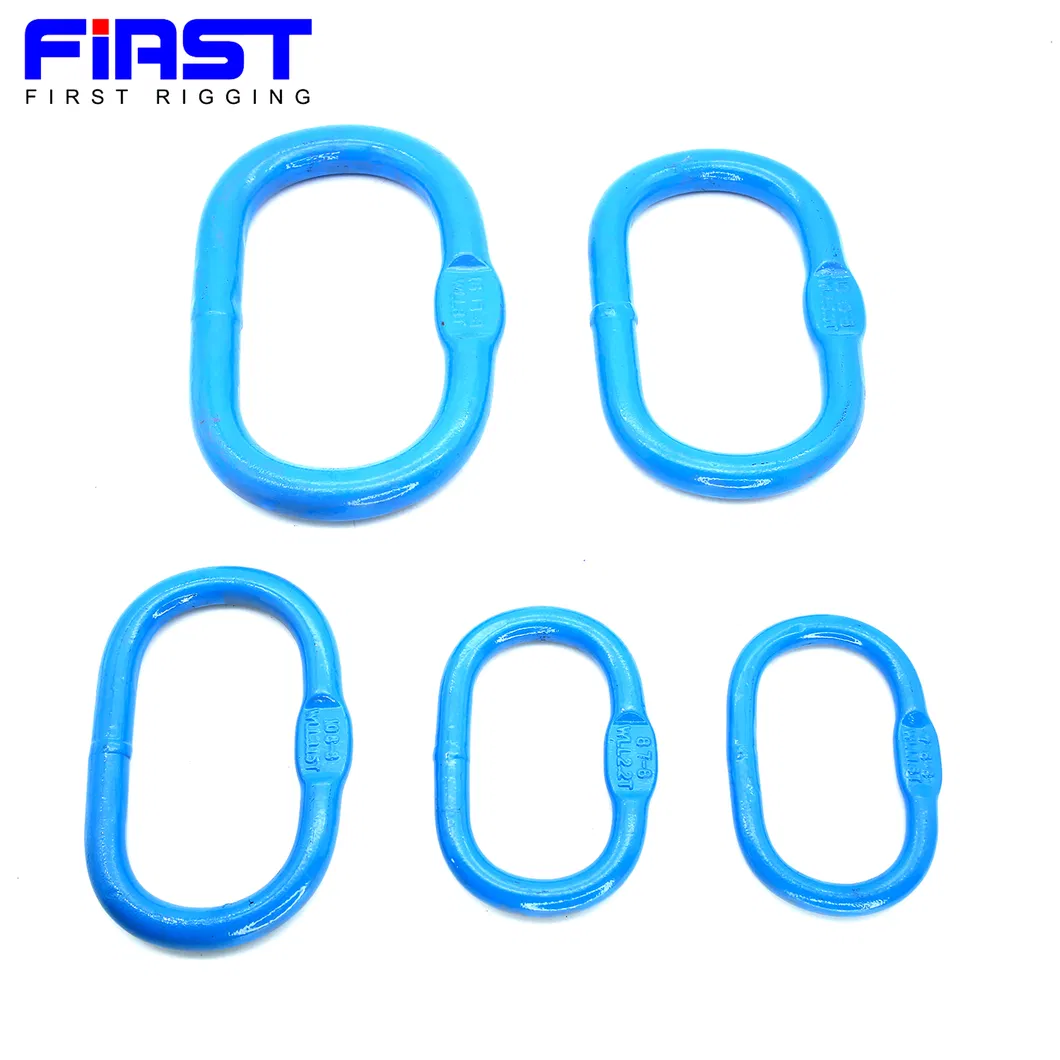

a-343 Flattened Strong Ring
Master link A-343 (welding) Forged strong ring also known as Forged strong ring, lamb ring, Forged strong ring, international English called Forged Master Link, is a rigging accessories.Basic infoThe master links sold in the market are mainly made of 40 chromium, 20 chromium manganese titanium and 3......
Send Inquiry
Product Description
Master link A-343 (welding)
Forged strong ring also known as Forged strong ring, lamb ring, Forged strong ring, international English called Forged Master Link, is a rigging accessories.
Basic info
The master links sold in the market are mainly made of 40 chromium, 20 chromium manganese titanium and 35 chromium molybdenum, among which 20 chromium manganese titanium is the most common
Technical specification

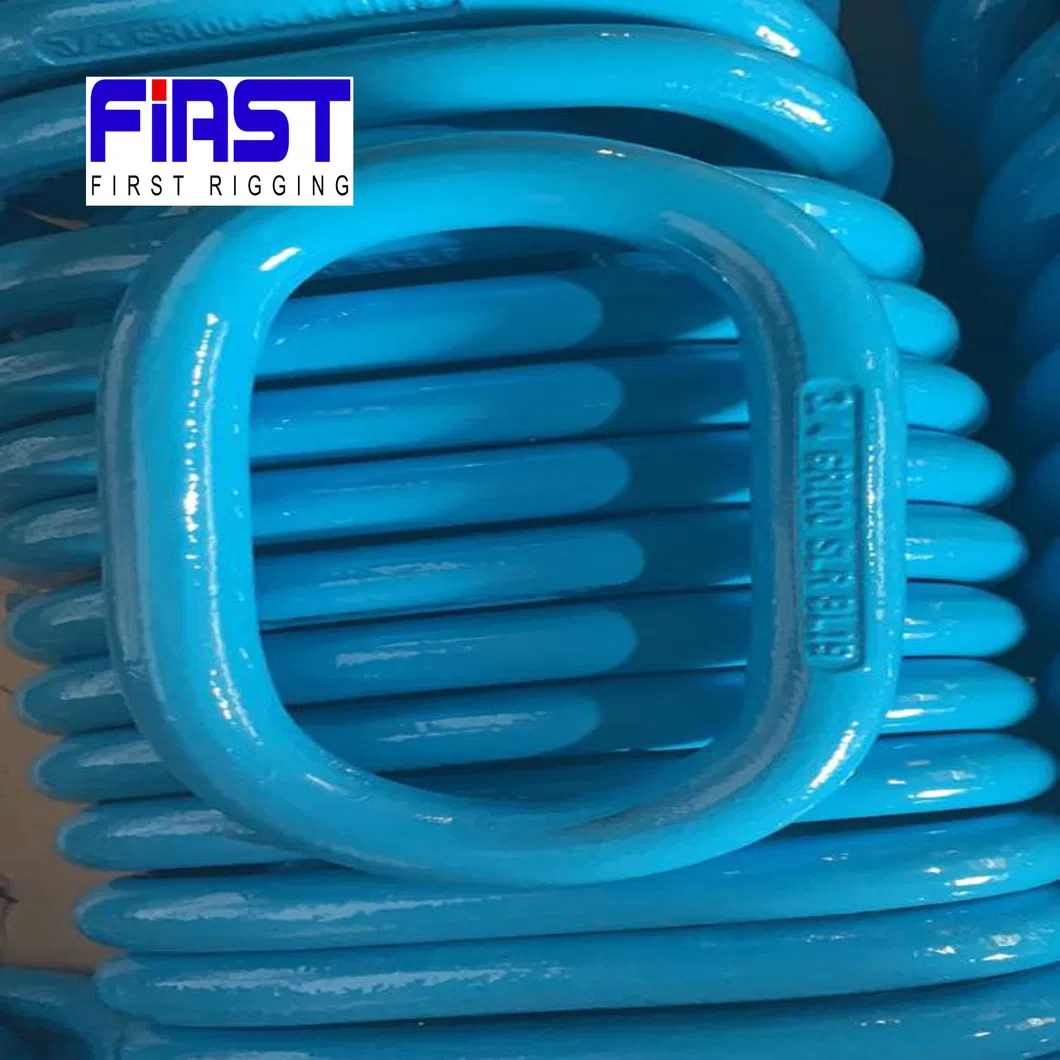

Our product
Forged strong ring also known as Forged strong ring, lamb ring, Forged strong ring, international English called Forged Master Link, is a rigging accessories.
Basic info
The master links sold in the market are mainly made of 40 chromium, 20 chromium manganese titanium and 35 chromium molybdenum, among which 20 chromium manganese titanium is the most common
Technical specification

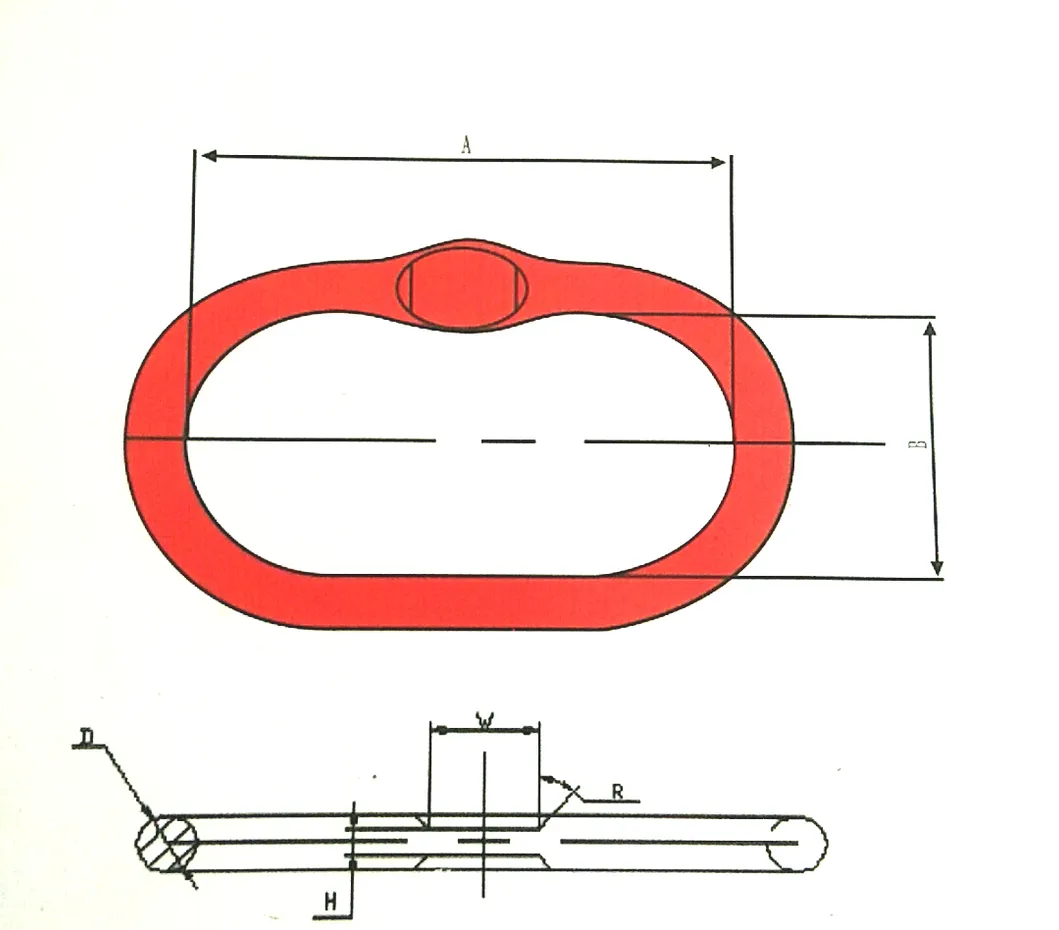

| A-343 master link(welding)( don't plattend master link for DIN 5688) breaking force(5XLL) | |||||||
| Specification | A | B | D | WLL(T) | Weight(kg) | Material | Remark |
| 76-8 | 110 | 60 | 14 | 1.6 | 0.4 | Alloy steel | Welding |
| 87-8 | 110 | 60 | 16 | 2.2 | 0.54 | Alloy steel | Welding |
| 108-8 | 135 | 75 | 18 | 3.15 | 0.823 | Alloy steel | Welding |
| 1310-8 | 160 | 90 | 22 | 5.3 | 1.5 | Alloy steel | Welding |
| 1613-8 | 180 | 100 | 25 | 8 | 2.13 | Alloy steel | Welding |
| 1816-8 | 200 | 110 | 32 | 11.2 | 3.95 | Alloy steel | Welding |
| 2018-8 | 260 | 140 | 36 | 14 | 6.33 | Alloy steel | Welding |
| 2220-8 | 300 | 160 | 40 | 17 | 9.0 | Alloy steel | Welding |
| 2622-8 | 340 | 180 | 45 | 21.2 | 12.8 | Alloy steel | Weldign |
| 3226-8 | 350 | 190 | 50 | 31.5 | 17.2 | Alloy steel | Welding |
| 3632-8 | 400 | 200 | 56 | 45 | 24.2 | Alloy steel | Welding |
| 4036-8 | 430 | 220 | 63 | 56 | 32 | Alloy steel | Weldign |
| 72 | 460 | 250 | 72 | 63 | 46 | Alloy steel | Welding |

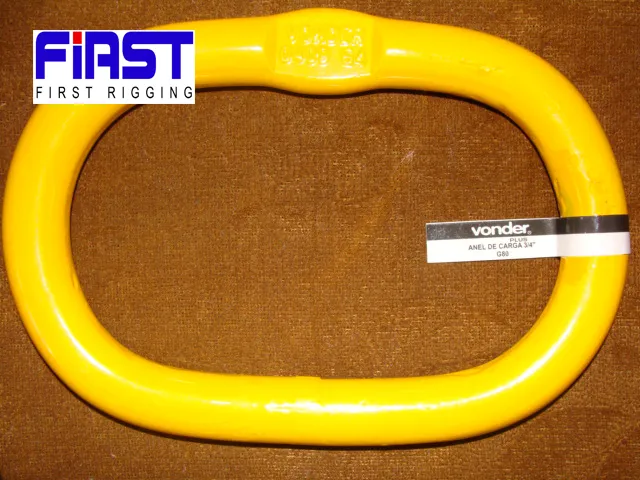

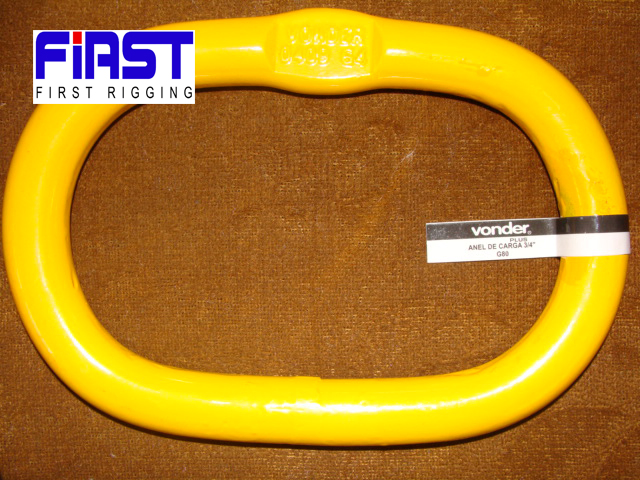

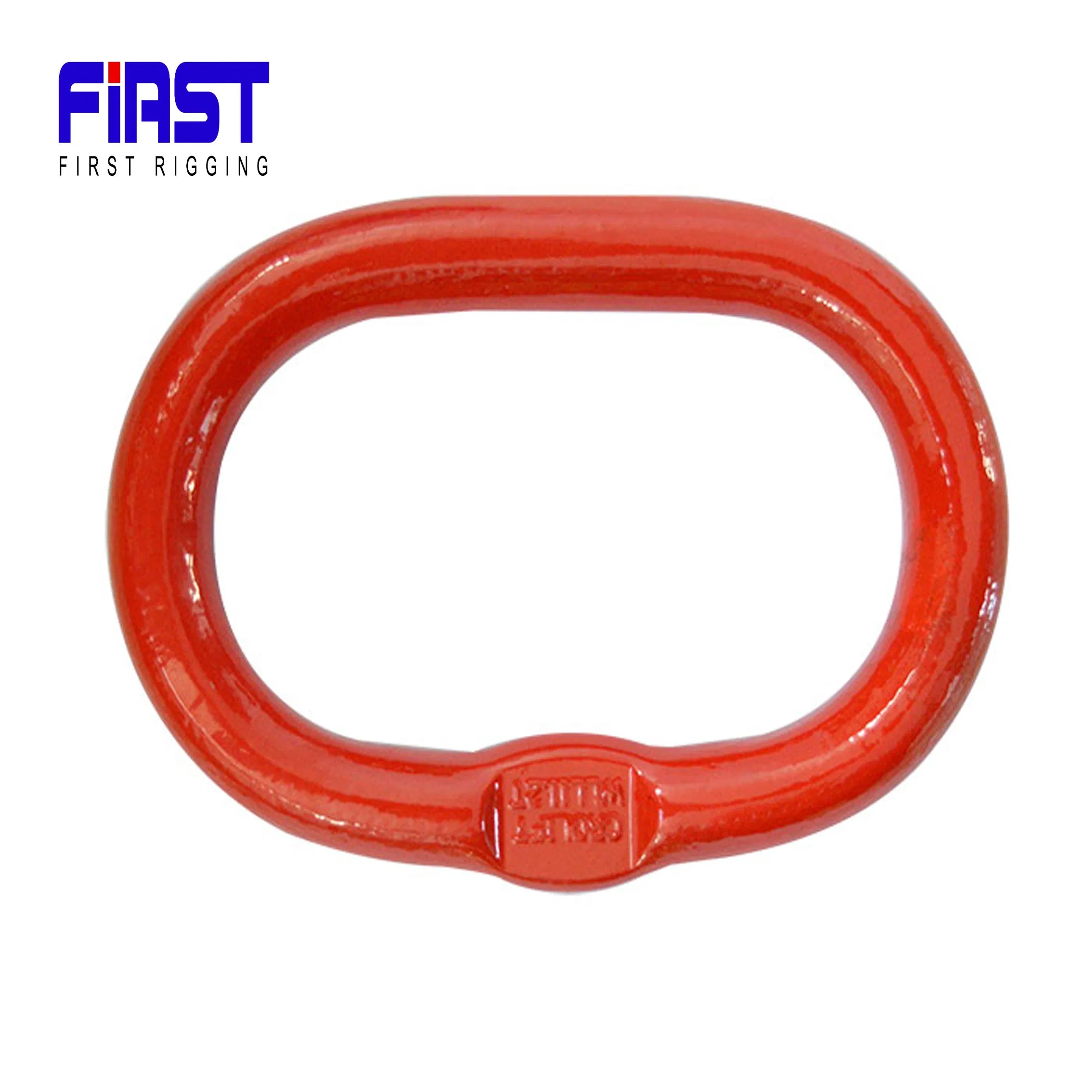

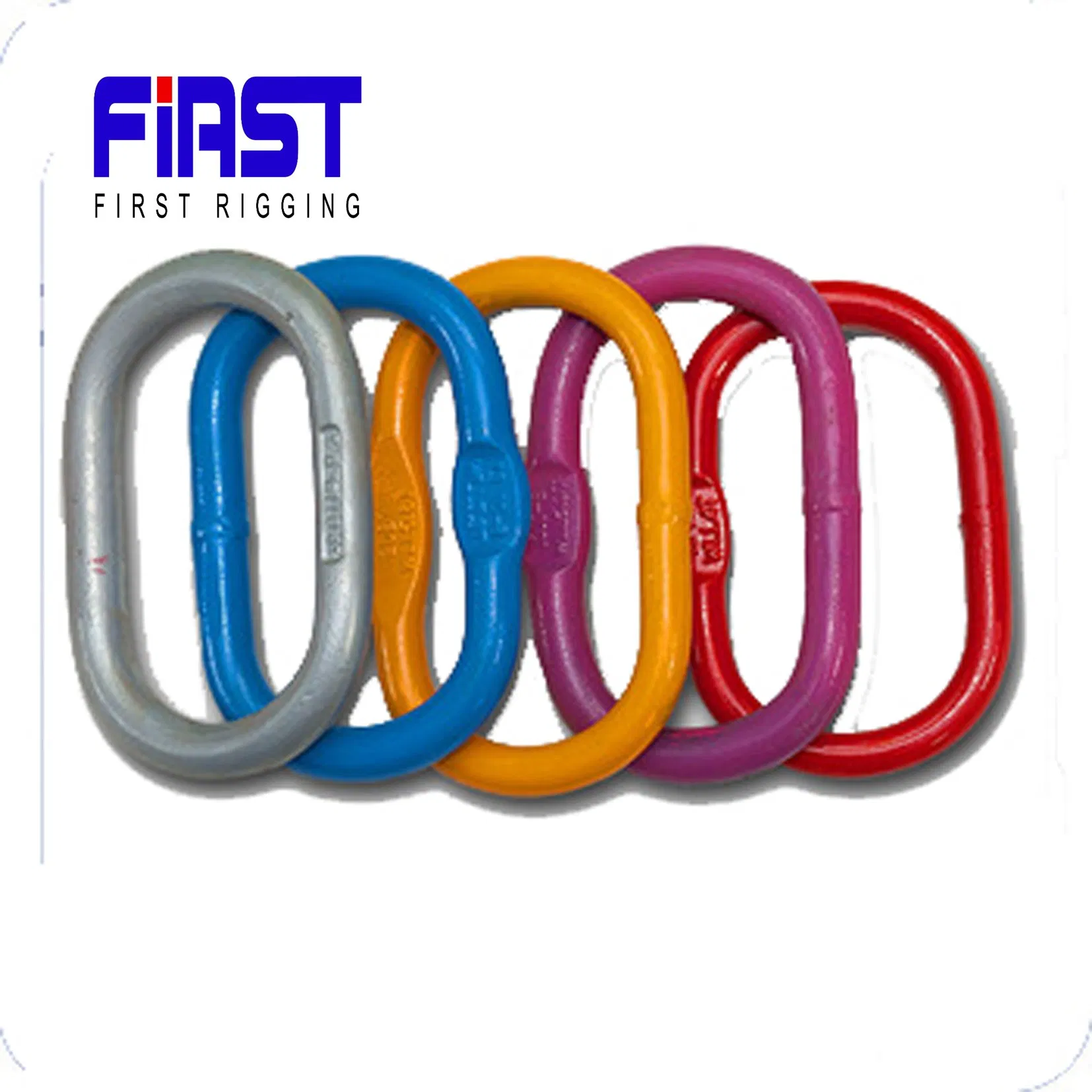

Our product
Matters needing attention
The powerful ring should be stopped when the following conditions occur during use:
1. Strong ring warps more than 10 degrees.
2. Crack appears on the surface of strong ring.
3. Wear of strong ring body exceeds 10%.
Special tips: do not stand under the lifting machinery and lifting sling during the lifting process
