U S Type Wll 17t 1 1/2 Inch Screw Pin Anchor Bow Shackle

Product Description

U S Type WLL 17T 1 1/2 inch Screw Pin Anchor Bow Shackle

G209 bow shackle features:

High strength forged carbon steel die forging

The test of working load limit is 2 times

Breakage test

100% magnetic particle inspection

Breaking load limit is 4 times

Commodity name	G209 Bow Shackles
Usage	Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings
Main standard	US type G209,G210,G2130,G2150,Europe Dee & Bow type, JIS Dee & Bow type, Plate shackle
Material	Carbon steel, Alloy steel, Stainless steel 304 or 316
Finish	Hot Dipped Galvanized, Electro Galvanized, Color Painted, High polished, Mirror Polished
Technology	Drop forged, Precision Casting
Size	Different size available (3/16"-2 1/2")
M.O.Q	100PCS per Size
WLL	1/3T-55T
MBS	6 times WLL or 4 times WLL
Packing	Gunny bag or carton and pallet / by customer requirements.
Delivery time	10-20days after order confirmation
Payment term	T/T, L/C, Western Union
Business type	Manufacturer, trading
Certifications	ISO9001,CE,BV,SGS
Notes	Special specifications and marks can be made according to customers requirements;
Main products	Eye bolts,Shackles,Turnbuckles,Wire Rope Clips,Load binders,Lifting Hooks,Connecting Links,Master Links,Swivels and many other rigging hardwares.

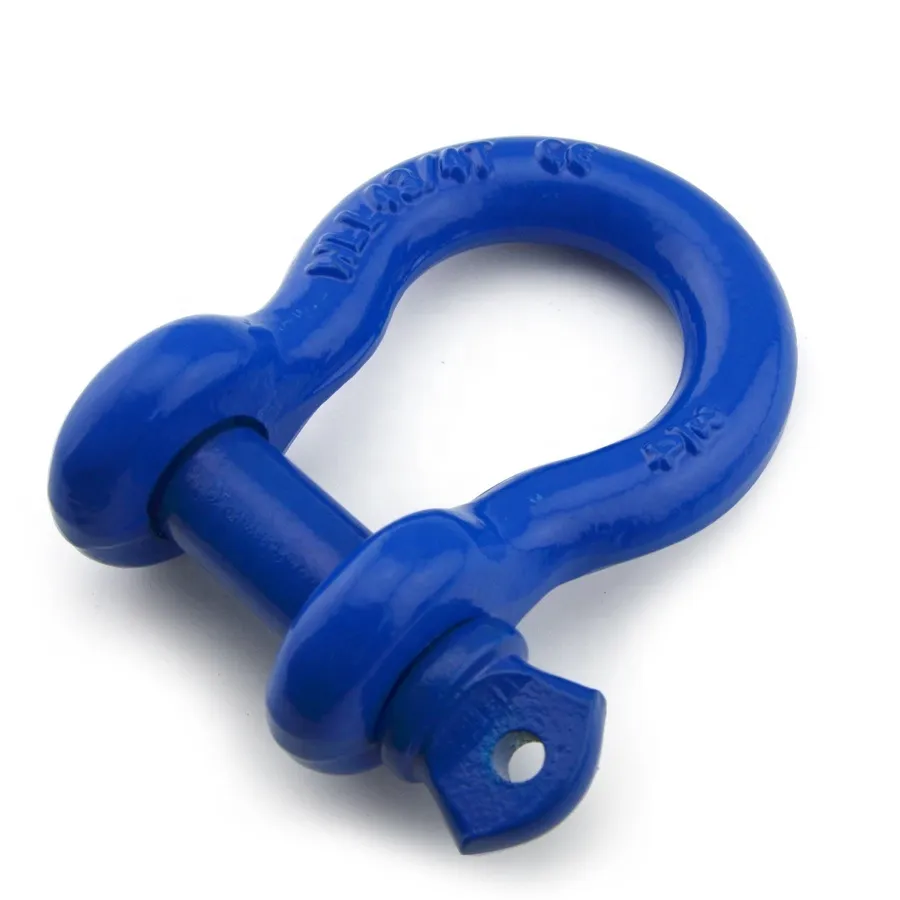

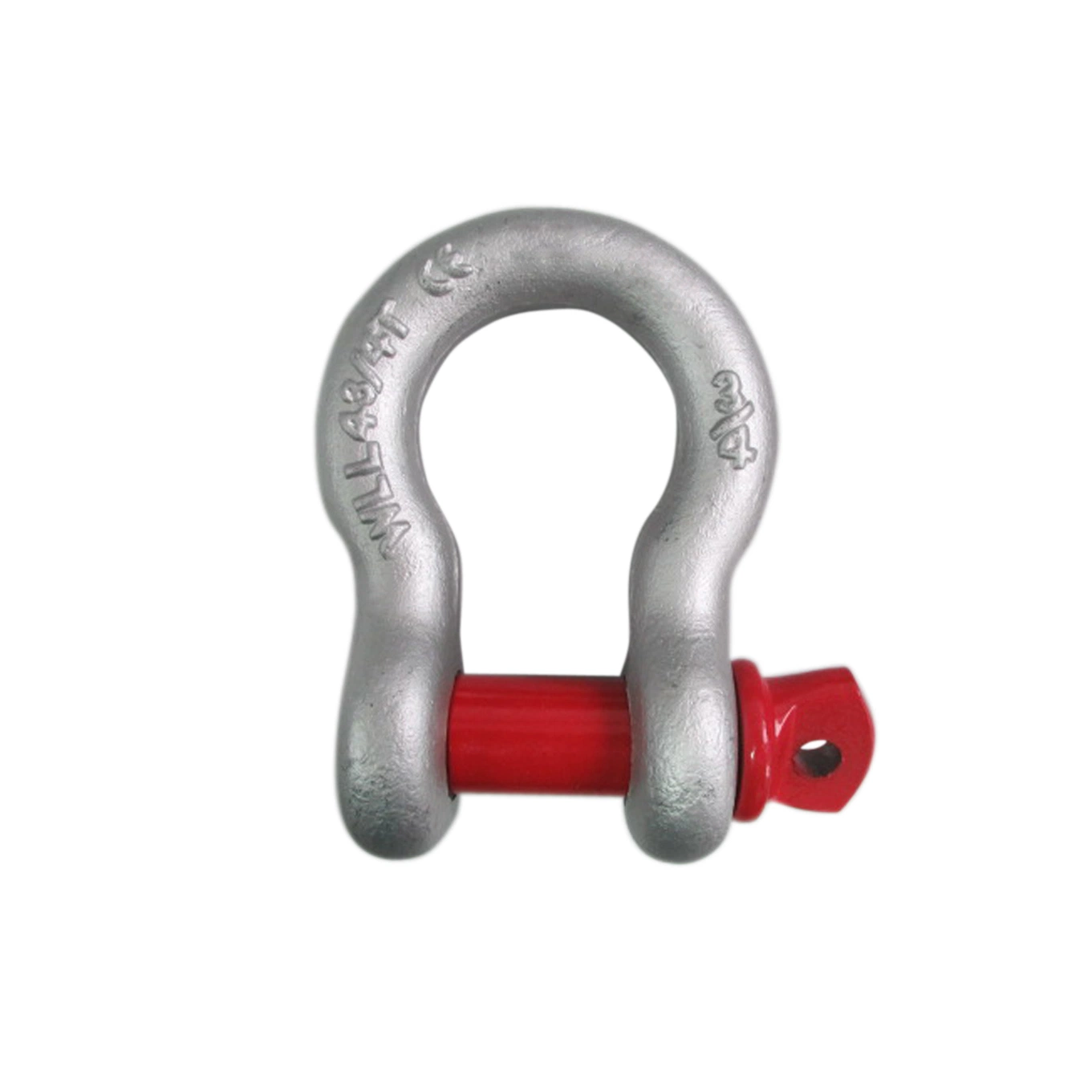

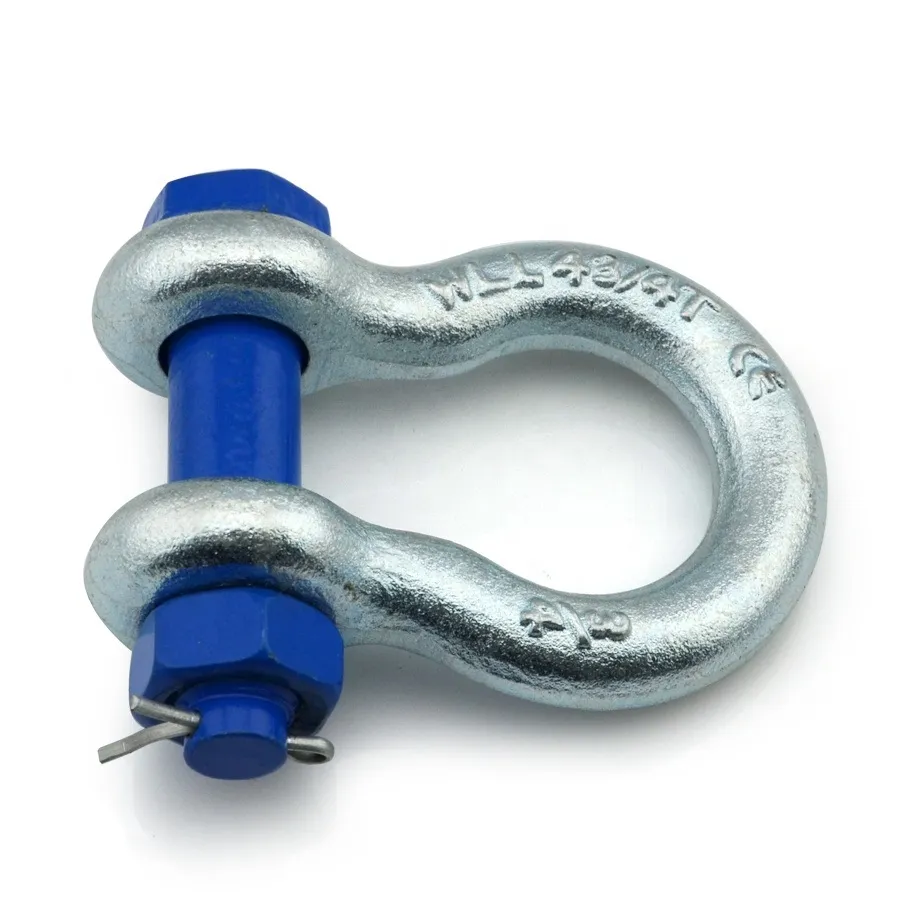

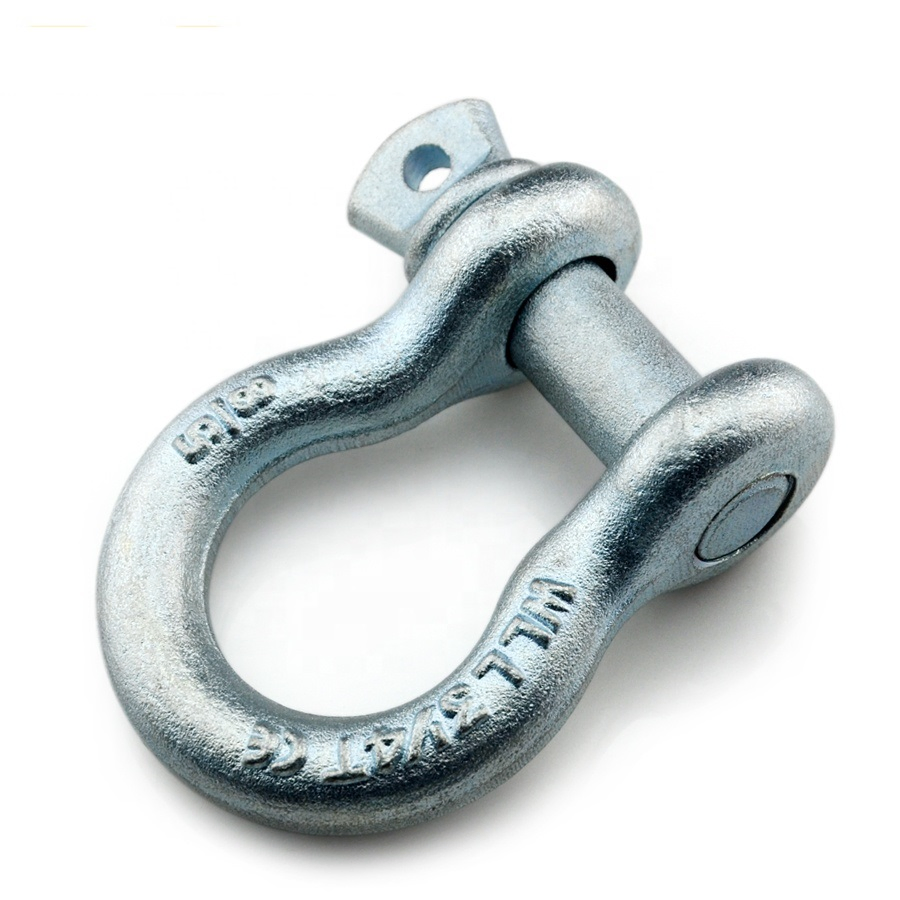

Detailed pics as belows:
U S Type Wll 17t 1 1/2 Inch Screw Pin Anchor Bow Shackle

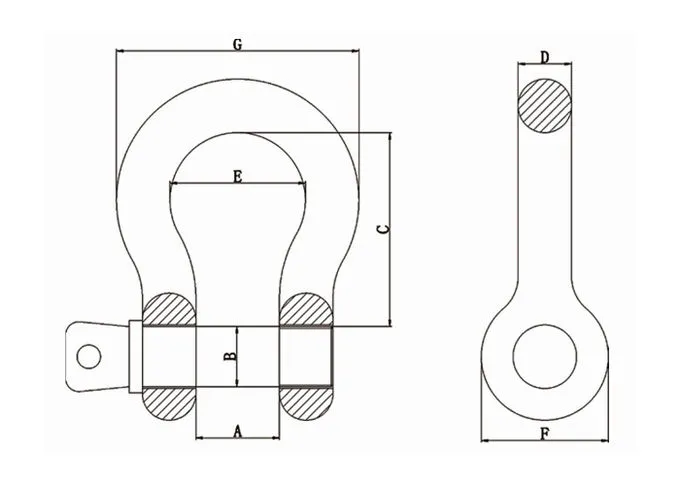

G209 bow shackle product paremeter as belows:
U S Type Wll 17t 1 1/2 Inch Screw Pin Anchor Bow Shackle

G209 Bow Shackle
WLL. ton	A mm	B mm	C mm	D mm	E mm	F mm	G mm
2	20	16	46	12	33	29	58
3.25	27	19	61	16	43	38	75
4.75	32	22	71.5	19	51	46	89
6.5	38	25	84	22	58	53	102
8.5	43	28	95	25.5	68	60.5	119
9.5	48	32	108	29	74	68.5	134
12	50	36	119	32	81	76	145
13.5	55	38	133	35	90	84	160
17	60.5	42	146	38	97	92	173
25	73	50	178	44.5	127	106.5	216
35	83	56	197	51	146	122	248
55	103	70	267	63	181	144.5	307
85	130	80	325	80	210	165	370
120	145	95.5	410	95	215	198	405

Our Baoding jiazhong hoisting pecializes in manufacturing standard G80 lifting chain, Grade B and C mining round link chain, also have European Standard chain for rigging, electric block chain and have all kinds of riggings part like hook, shackle, connecting link master link Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

Looking forward to doing business with your company!
