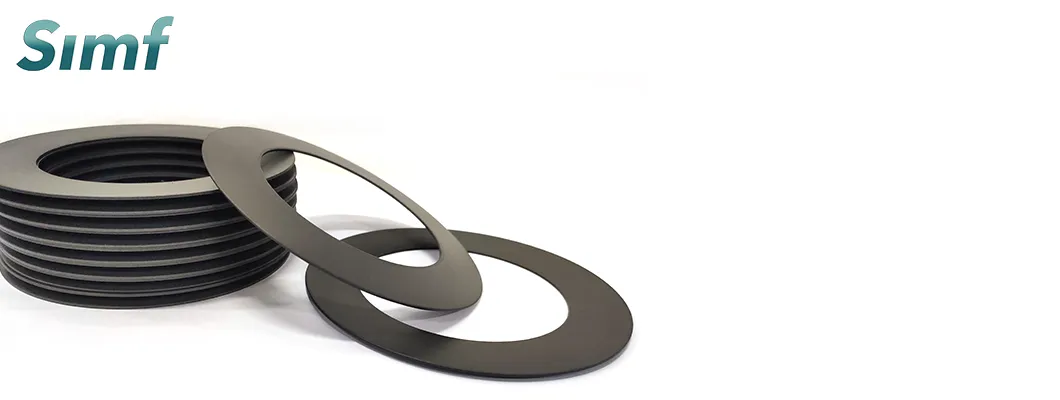

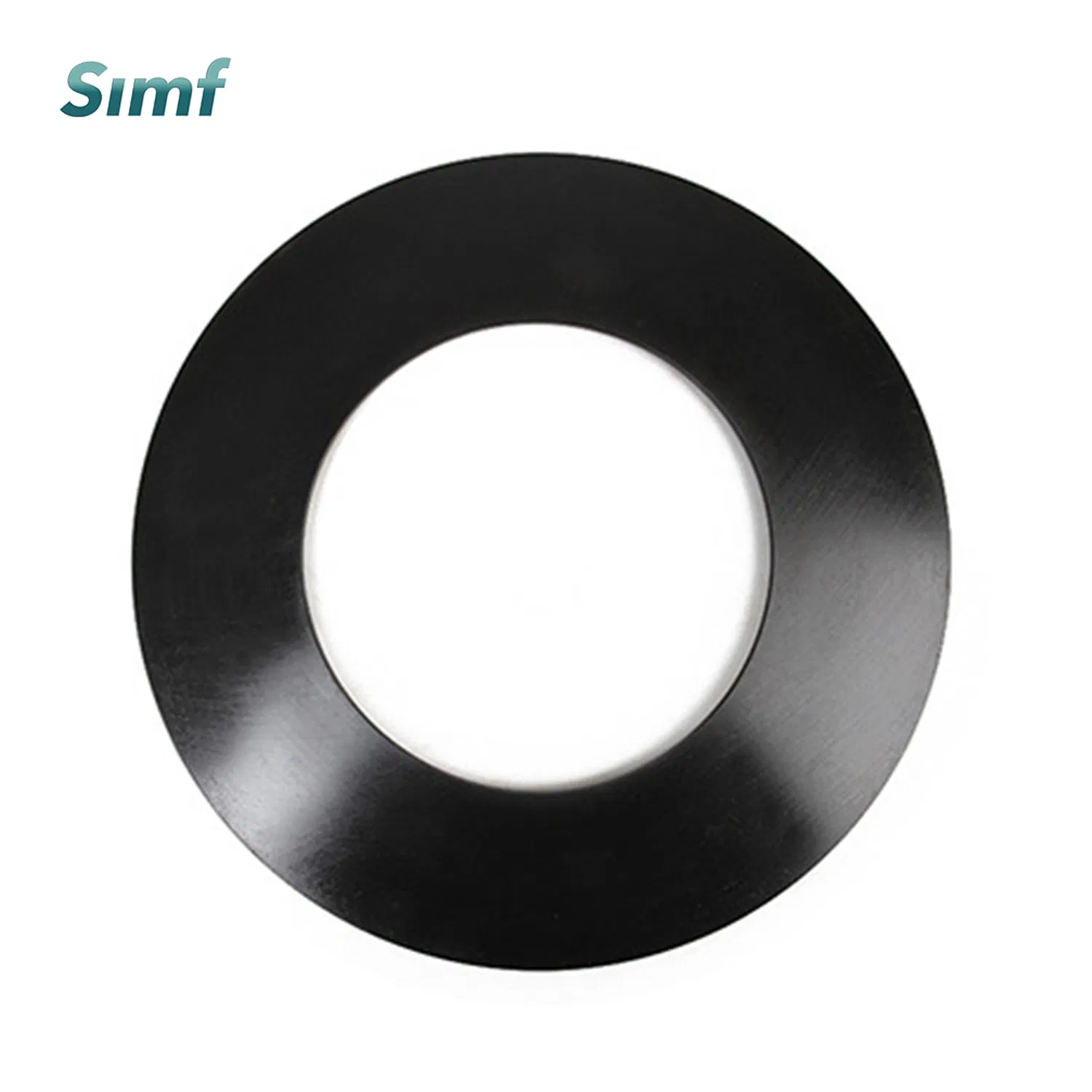

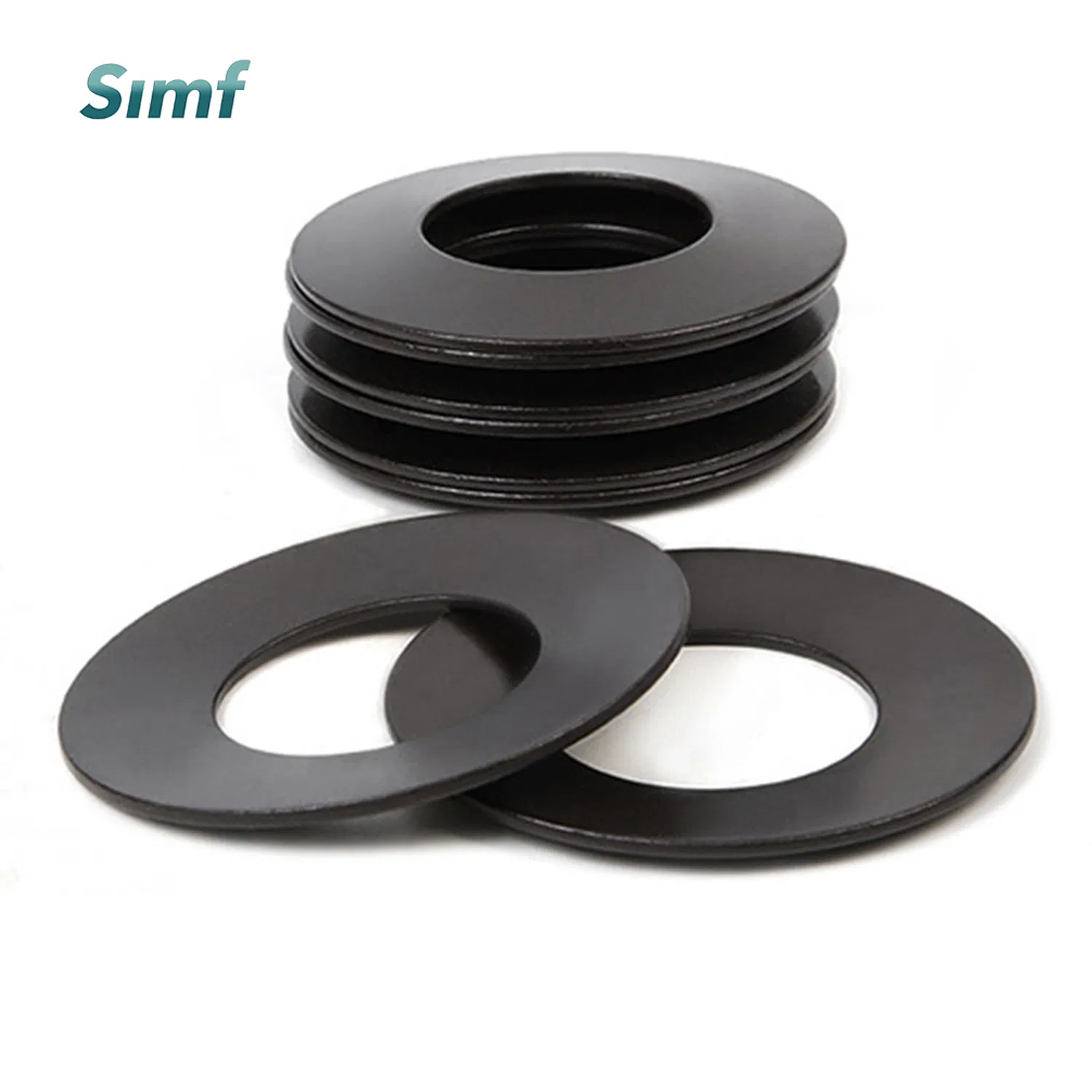

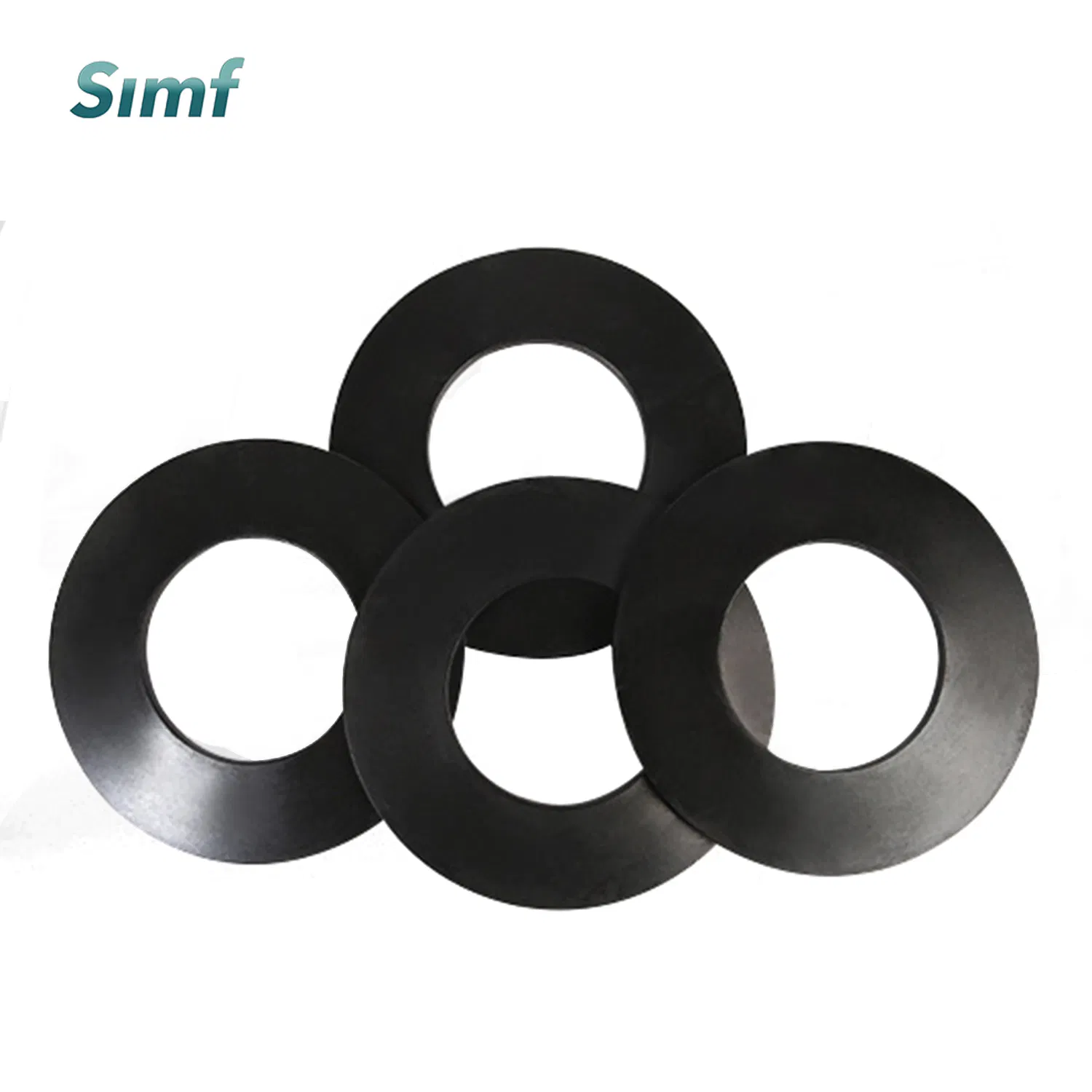

DIN2093 Belleville Spring Washer
DIN2093 DIN2093 belleville spring washer Material Standard materials (C75S and 51CrV4)Size 0.2-90mmSurfaceStandard corrosion protection is phosphating and oiling. (Other coatings are available)ApplicationsDisc Springs for Actuators & Ball ValvesConical Washers for Switchgear ApplicationsDisc S......
Send Inquiry
Product Description
| Material | Standard materials (C75S and 51CrV4) |
| Size | 0.2-90mm |
| Surface | Standard corrosion protection is phosphating and oiling. (Other coatings are available) |
| Applications | •Disc Springs for Actuators & Ball Valves •Conical Washers for Switchgear Applications •Disc Springs for Windmills •Belleville / Conical Washers for Fasteners •Conical Seal/ Lock Washers for Earth Moving Equipment |
| MOQ | 10PCS |
| Packing | Inner packing :plastic bag ,carton, Outer packing :Pallet, Wooden case |
| Delivery Time | Sample Order :5-7days , Big Order :25-30days |
| Payment terms | T/T, L/C |
| Type of shipping | By sea, air, express. |
Product details:
Size: Inner diameter :Φ3.2 ~ Φ127.
All sizes and material are available as customer requested, and also make them according to the drawings which customer provided.
Features:

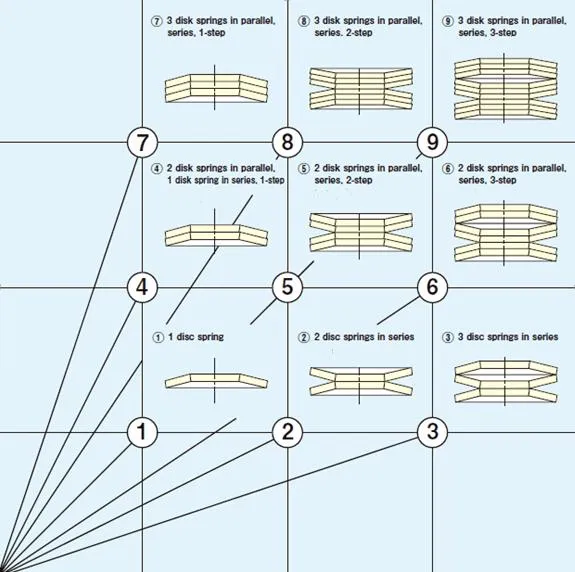

- Ability to provide stack specific load-deflection diagrams
- Small load tolerances possible
- 100% load testing can be used to verify proper stacking

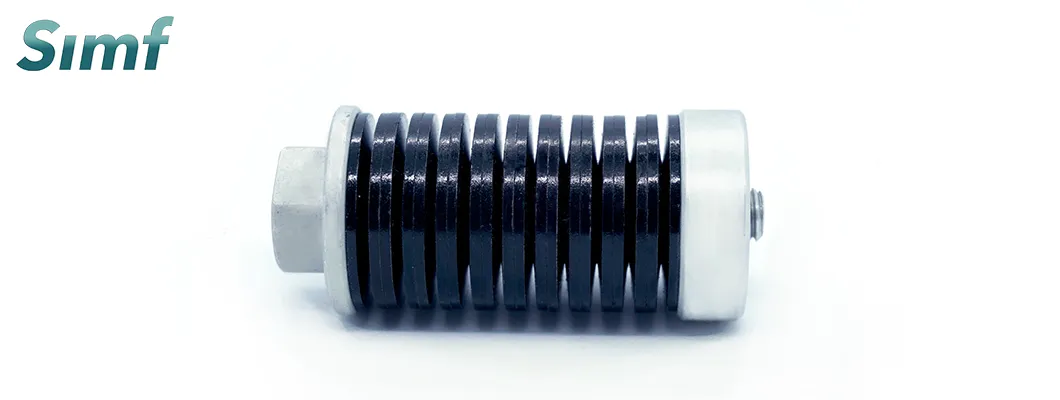

- Assembly is more efficient with preassembled stack
Instructions
Order Information:
To offer you the exact quote sheet,

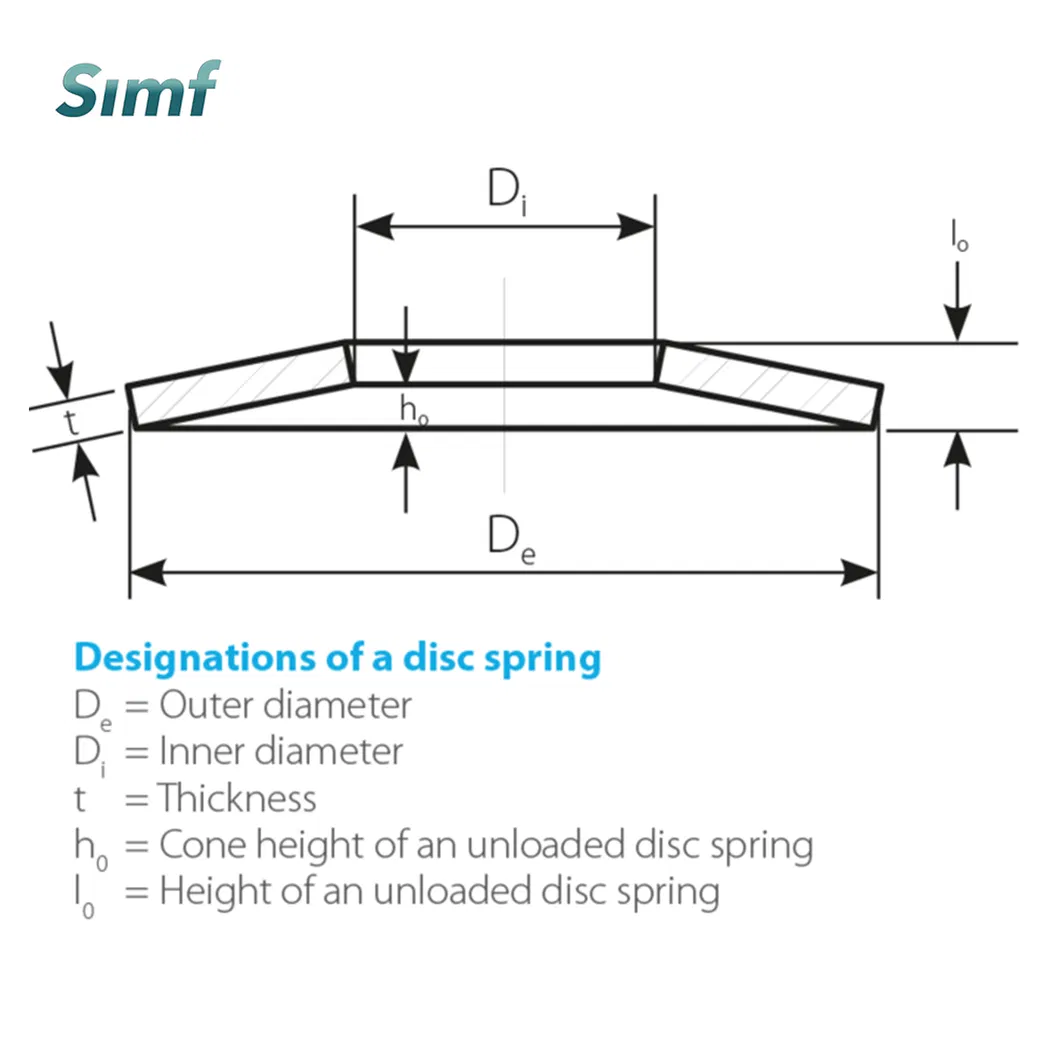

pls kindly noted us the material, size( d, D, t, Ho) and quantity that you need.
FAQ
1.Q: Can you produce the goods as customized design?
A: Of course, we have enough experience to do OEM and ODM, we are welcome you send us your new design, latest style or sample. You can save time, money and own the best service from us.
2.Q: How does your company and factory do regarding quality control?
A: Quality is top priority. Highlight always attach great importance to quality controlling from the very beginning to the very end.
3.Q: Do you have a price list?I need your price list of all your products.
4.Q: The item I'm searching is not on your catalog, is there any solution?
A: We deal with over 10,00 items, our catalog doesn't cover all products. Please send us your photo with detail specification,we'll check for you.
5.Q: Can you provide samples? Are the samples free?
A: Yes, we are glad to provide samples. Normally, we provide 1-2 pcs sample freely for testing or quality checking. If you require many items, or more qty for each item, we'll charge samples.
Our main products are as follows:
Coli spring Die spring Disc spring Lock washers
All above spring we can make according to your spring drawing or spring data,if you want to know more information,pls feel free to contact us.
