U. S Type Turnbuckle Drop Forged Lashing Turnbuckle
Product DescriptionH-Lift U. S. Type Drop Forged Turnbuckles1. Brand: H-LIFT or OEM2. Size: 1/4"X4"~7/8"X18", other size can also be made upon request3. Material: Mild steel, carbon steel, malleable, alloy steel or stainless steel4. Surface: Electro galvanized, self-colored, hot ......
Send Inquiry
Product Description

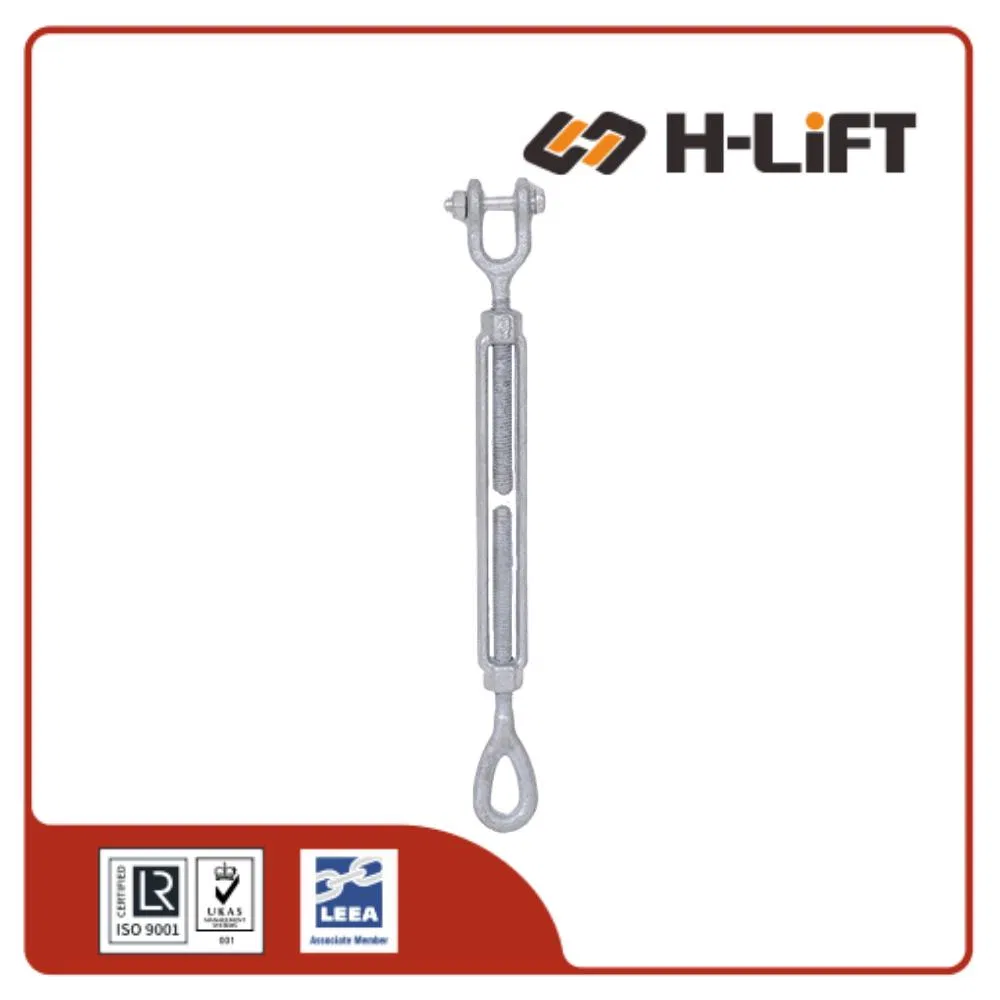

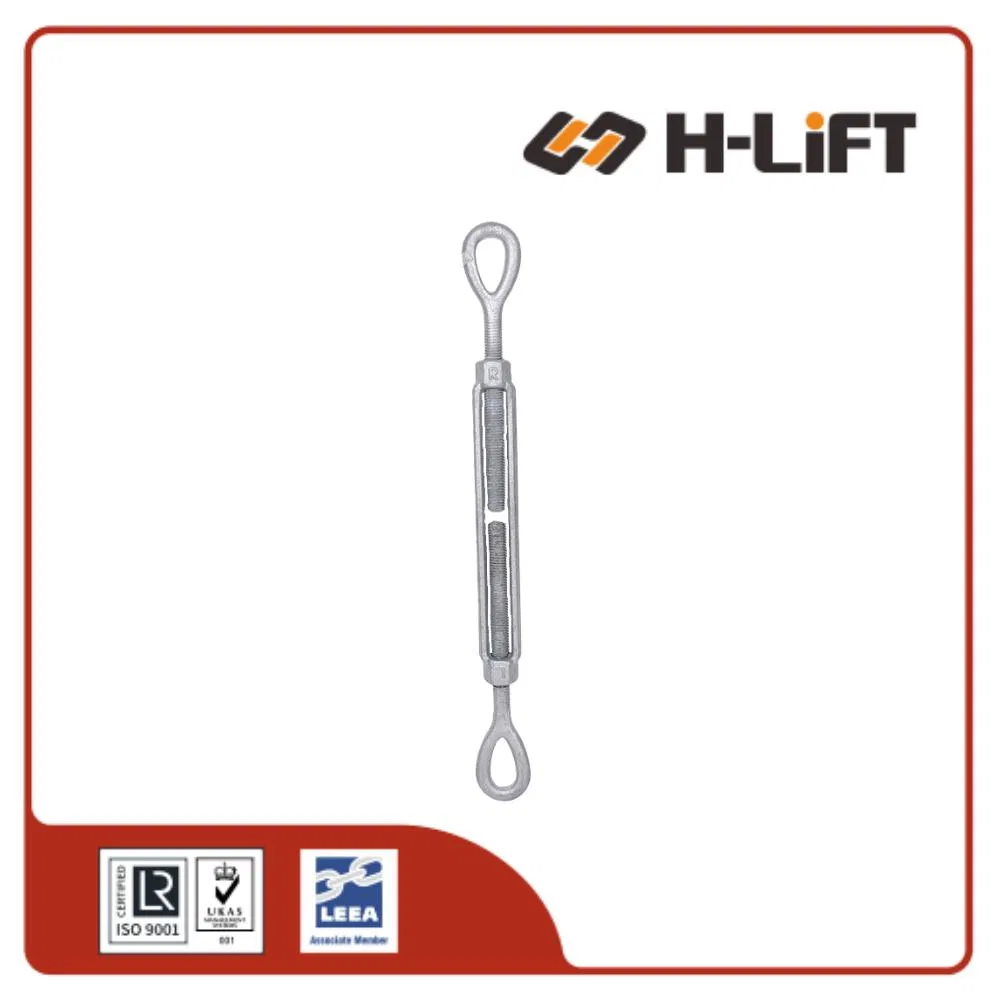

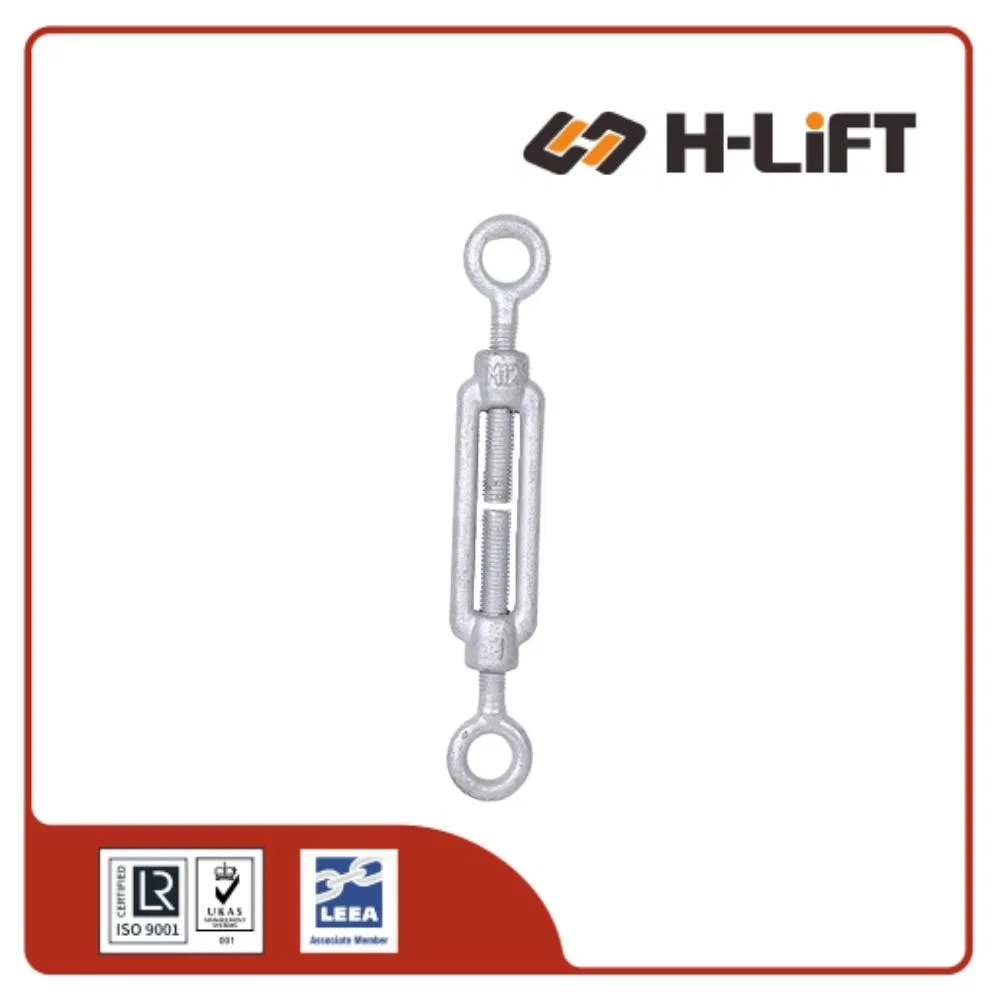

H-Lift U. S. Type Drop Forged Turnbuckles
1. Brand: H-LIFT or OEM
2. Size: 1/4"X4"~7/8"X18", other size can also be made upon request
3. Material: Mild steel, carbon steel, malleable, alloy steel or stainless steel
4. Surface: Electro galvanized, self-colored, hot dip galvanized or painted
5. Treatment: Drop forged
6. Packing: In gunny bags or carton box, then in pallet
7. Special specifications and marks can be made according to customer's requirements
| Item | Size/inch (Dia. & take-up) | W.L.L. (lbs) | Item | Size/inch (Dia. & take-up) | W.L.L. (lbs) | ||
| H&H H&E | E&E J&E J&J Stub End | H&H H&E | E&E J&E J&J Stub End | ||||
| TB106100 | 1/4 x 4 | 400 | 500 | TB125152 | 1 x 6 | 5000 | 10000 |
| TB108113 | 5/16 x 4-1/2 | 700 | 800 | TB125304 | 1 x 12 | 5000 | 10000 |
| TB110152 | 3/8 x 6 | 1000 | 1200 | TB125457 | 1 x 18 | 5000 | 10000 |
| TB113152 | 1/2 x 6 | 1500 | 2200 | TB125609 | 1 x 24 | 5000 | 10000 |
| TB113228 | 1/2 x 9 | 1500 | 2200 | TB132304 | 1-1/4 x 12 | 6500 | 15200 |
| TB113304 | 1/2 x 12 | 1500 | 2200 | TB132457 | 1-1/4 x 18 | 6500 | 15200 |
| TB116152 | 5/8 x 6 | 2250 | 3500 | TB132609 | 1-1/4 x 24 | 6500 | 15200 |
| TB116228 | 5/8 x 9 | 2250 | 3500 | TB138304 | 1-1/2 x 12 | 7500 | 21400 |
| TB116304 | 5/8 x 12 | 2250 | 3500 | TB138457 | 1-1/2 x 18 | 7500 | 21400 |
| TB119152 | 3/4 x 6 | 3000 | 5200 | TB138609 | 1-1/2 x 24 | 7500 | 21400 |
| TB119228 | 3/4 x 9 | 3000 | 5200 | TB144456 | 1-3/4 x 18 | - | 28000 |
| TB119304 | 3/4 x 12 | 3000 | 5200 | TB144609 | 1-3/4 x 24 | - | 28000 |
| TB119457 | 3/4 x 18 | 3000 | 5200 | TB150609 | 2 x 24 | - | 37000 |
| TB122304 | 7/8 x 12 | 4000 | 7200 | TB164609 | 2-1/2 x 24 | - | 60000 |
| TB122457 | 7/8 x 18 | 4000 | 7200 | TB170609 | 2-3/4 x 24 | - | 75000 |
