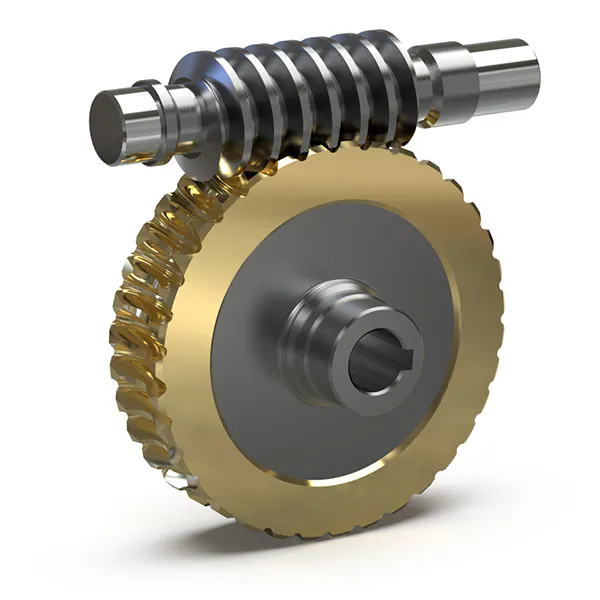

Why Are Precision Gears Widely Used in CNC Machine Tools?
2026-08-17
1. How Does High Accuracy Impact Machining Precision and Surface Finish?
In our factory, we produce Precision Gears with tooth profile deviations below 2 microns, as measured on a Klingelnberg gear tester. This level of accuracy translates directly to the performance of a CNC machine tool. When a spindle or feed drive uses a Precision Gear, the backlash can be reduced to less than 30 arc seconds, which ensures that the cutting tool follows the programmed path with minimal error. For high speed milling of aerospace alloys, even a 5 micron deviation can cause tool chatter or surface roughness. Our Raydafon has supplied Precision Gears to European machine builders who achieve surface finishes of Ra 0.4 µm on hardened steel components. The gear meshing consistency also reduces wear on the guideways, because the drive forces are transmitted smoothly. Many local workshops in Germany and Switzerland rely on our Precision Gears to maintain tolerances over long production runs. Without this gear quality, CNC machines would not be able to hold the micron level tolerances that modern manufacturing demands.
2. Why Does Load Capacity and Torque Density Matter for Heavy Duty Cutting?
CNC machine tools often face interrupted cuts and varying loads. Our Precision Gears are manufactured from case hardened steel (20MnCr5 or equivalent) with a core hardness of 30 HRC and a surface hardness of 58 to 62 HRC after carburizing. This gives them high bending fatigue strength and resistance to pitting. The table below shows the load capacity for our standard Precision Gear modules. The torque density, which is the torque per unit weight, is significantly higher than standard gears because the tooth root is optimized using finite element analysis. For a spindle drive of 30 kW, a Precision Gear of module 3 can transmit over 600 Nm of torque continuously. This allows machine tools to take heavy cuts in steel and titanium. Our Raydafon has tested these gears on a test rig for 20,000 hours under fluctuating loads, with zero tooth breakage.
| Module (mm) | Face width (mm) | Maximum continuous torque (Nm) | Bending safety factor (AGMA) |
| 2.0 | 25 | 280 | 1.8 |
| 3.0 | 30 | 620 | 1.9 |
| 4.0 | 40 | 1200 | 2.0 |
| 5.0 | 50 | 1950 | 2.1 |
| 6.0 | 60 | 2800 | 2.2 |
| Parameter | Precision Gear (Raydafon) | Standard Gear (general purpose) |
| Tooth profile deviation (µm) | < 2.0 | < 8.0 |
| Surface hardness (HRC) | 58 – 62 | 50 – 55 |
| Core hardness (HRC) | 30 – 35 | 25 – 30 |
| Backlash (arc seconds) | < 30 | < 60 |
| Gear grinding finish (Ra, µm) | 0.4 | 1.6 |
The high torque density also means that machine designers can use smaller gearboxes, saving space in the machine structure. This is especially valuable in multi axis machining centers where compactness is essential.
3. How Does Gear Noise Reduction Improve Machine Tool Performance?
Excessive gear noise is not just an annoyance; it can indicate vibration that affects the cutting process. Our Precision Gears are ground using a continuous generating method that produces a helical gear with a surface finish of 0.4 Ra. The tooth meshing frequency is very smooth, resulting in noise levels below 75 dB at full speed. In a CNC lathe, this low vibration translates into better tool life and improved part quality. Our factory uses a gear measuring machine to check the individual pitch deviations, which are kept below 1.5 microns. For high speed spindles running at 15,000 RPM, gear whine is virtually eliminated. This allows operators to work in a quieter environment and to detect other machine issues more easily. Many of our customers in the automotive sector have reported that replacing standard gears with our Precision Gears reduced the overall machine noise by 5 to 8 dB.
4. How Do Precision Gears Contribute to Positioning Repeatability?
Positioning repeatability is the hallmark of a CNC machine tool. The drive train must return to the exact same position after every cycle. Our Precision Gears have extremely low angular transmission error, which is the difference between the commanded and actual output angle. We measure this error using a high resolution encoder on both the input and output shafts. The typical transmission error for our Precision Gear is below 0.5 arc minutes, which corresponds to a linear positioning error of less than 2 microns on a ball screw feed drive. This repeatability is essential for machining complex contours, such as turbine blades or medical implants. Our Raydafon Technology Group Co.,Limited produces Precision Gears with a high degree of uniformity from tooth to tooth, so that the error does not accumulate over multiple revolutions. The gearbox manufacturers who use our gears can achieve a repeatability of ±1 micron in X Y Z axes. This is why Precision Gears are the standard choice for high end 5 axis machines.
Frequently Asked Questions About Precision Gears in CNC Machine Tools
Final Summary
Precision Gears are essential for CNC machine tools because they deliver the high accuracy, load capacity, quiet operation, and positioning repeatability that modern machining demands. They enable machines to produce parts with tighter tolerances and finer surface finishes, while reducing downtime and tool wear. Our factory has specialized in manufacturing Precision Gears for the most demanding applications, from aerospace to medical. Choosing the right gear is a critical decision for any machine builder or maintenance engineer. Raydafon is ready to supply you with gears that meet the highest international standards.
