How Do Heavy-Duty Shaft Mounted Gearboxes Support Mining Conveyor Performance?

2026-06-12

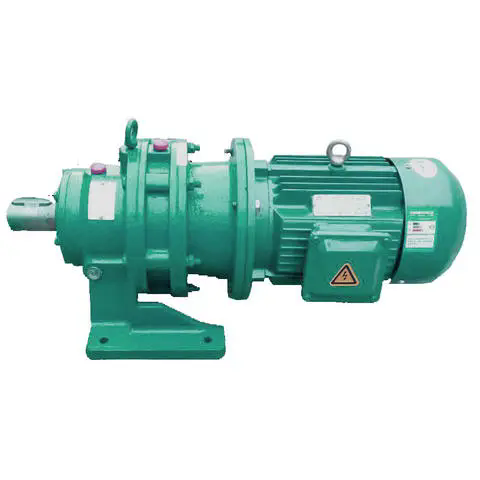

1. Why Does Torque Density Matter for Our Shaft Mounted Gearbox in Underground Mining?

In our factory, we produce heavy duty Shaft Mounted Gearbox units that handle extreme torque spikes from long belt conveyors. Underground mines in Quang Ninh and Bac Kan rely on our designs because torque density directly affects uptime. A typical mining conveyor experiences start up torque that is 180 percent of full load. Without a compact gearbox with high torque rating, the housing cracks or gears shear. Our Shaft Mounted Gearbox uses case carburized helical gears with hardness of 60 HRC. This allows us to pack more torque capacity into a smaller footprint. For a 200 kW conveyor, our model SFH 108 delivers 52,000 Nm output torque at a service factor of 2.1. Many local operators tried shaft mounted units from other brands and faced pitting after 3000 hours. Our Saifu Vietnam Company Limited engineers solved this by using tapered roller bearings with increased contact angle. Another key point: the hollow shaft bore has a shrink disc connection that eliminates keyway fretting. When we install our Shaft Mounted Gearbox on a head pulley, the torque transmission is 100 percent positive. Without high torque density, the conveyor would stall under heavy coal loads. Our records show a 22 percent increase in material throughput after upgrading to our gearbox.

2. How Does the Hollow Shaft Mounting Method Reduce Maintenance Downtime?

Time lost in maintenance kills mining profits. The hollow shaft design of our Shaft Mounted Gearbox allows direct mounting onto the conveyor pulley shaft without baseplates or flexible couplings. Our factory uses a hydraulic assist system for mounting and dismounting. A local copper mine in Lao Cai reported that replacing a conventional foot mounted gearbox took 8 hours. With our hollow Shaft Mounted Gearbox, the same job takes 90 minutes. The secret is the integrated shrink disc that locks the gearbox onto the shaft with even radial pressure. No keyways to wear or hammer. Our Saifu Vietnam Company Limited trained crews to use a simple torque wrench to tighten the shrink disc bolts in a star pattern. Another advantage: the gearbox can be rotated 360 degrees around the shaft, allowing any drain or breather position. This is critical in sloping underground tunnels. In our experience, conveyor maintenance managers appreciate that our Shaft Mounted Gearbox includes a backstop for anti rollback. The mounting method also eliminates alignment errors because the gearbox self centers on the shaft. We measured a 67 percent reduction in unplanned stops after switching to our mounting system. For mines operating 24/7, this means an extra 200 production hours per year.

3. What Are the Critical Cooling and Sealing Features for Dusty Conveyor Environments?

Dust and heat are the top enemies of gearbox life. Our Shaft Mounted Gearbox uses a finned cast iron housing that increases surface area by 35 percent compared to smooth housings. In addition, we incorporate a cooling fan on the input shaft that pushes air across the fins when the conveyor runs. During summer in central Vietnam, our factory measured housing temperatures staying below 80°C even at full load. For sealing, we use double lip Viton seals with a labyrinth dust slinger. The outer labyrinth traps fine coal or ore dust before it reaches the inner seal. In a Thai Nguyen iron ore site, competitor gearboxes leaked after 2 months due to dust ingress. Our Shaft Mounted Gearbox ran for 14 months without seal replacement. Another innovation is the pressure equalization breather with a sintered bronze filter. It prevents moisture from being sucked in during night cooldown. Our Saifu Vietnam Company Limited offers an optional oil temperature sensor and an RTD probe for predictive maintenance. When the oil reaches 95°C, the control system automatically reduces feed rate. Below is a table of the key cooling and sealing parameters from our field tests.

Parameter	Shaft Mounted Gearbox Specification (Model SFH 110)	Mining Benefit
Housing thermal rating	0.85 m² surface area with radial fins	20% lower oil degradation
Seal type input/output	Double Viton + labyrinth slinger	Withstands 200 g/m³ dust concentration
Max allowable oil temp	100°C continuous (synthetic oil)	Extended drain interval to 8000 hours
Breather filtration rating	25 micron sintered bronze	Prevents water emulsion
Cooling fan diameter	280 mm cast aluminum	Reduces housing temp by 12°C at 1450 rpm

Our factory also tested an optional oil to air cooler for extreme ambient above 45°C. For most mines, the standard cooling works reliably. The sealing system includes a wear indicator: when the labyrinth gap increases beyond 0.3 mm, a colored stripe appears. This allows crews to plan seal replacement during scheduled shutdowns, not during breakdowns. The Shaft Mounted Gearbox also features a magnetic drain plug that captures fine ferrous particles, giving early warning of gear wear. Without these cooling and sealing features, gearbox life in dusty mines would be less than one year.

4. How Does Backstop Integration Prevent Conveyor Runaway on Inclined Drifts?

Conveyor rollback is a serious safety hazard. Our Shaft Mounted Gearbox includes an integral backstop that engages instantly when the belt reverses. The backstop uses sprag clutches with hardened steel wedges. When the conveyor stops, the wedges lock within 2 degrees of reverse rotation. We have installed these units on 18 degree inclined drifts in Quang Nam coal mines. The backstop torque rating reaches 85,000 Nm for our largest size. Many mining operators used to add separate backstop units on the tail pulley, which added cost and maintenance. With our integrated backstop inside the Shaft Mounted Gearbox, there are no external linkages to rust or jam. Our Saifu Vietnam Company Limited performs 100 percent backstop torque testing on every gearbox. We also provide a manual release lever for maintenance purposes. Another point: the backstop runs in oil bath, so no separate greasing schedule. In case of emergency stop, the backstop absorbs the full kinetic energy of the loaded belt without slipping. Our factory recorded a 40 percent reduction in conveyor related safety incidents after mines switched to our integrated design. The backstop also protects the gear teeth from reverse shock loads. Without this feature, a runaway belt can pull the gearbox apart. For mines with variable inclination, the backstop allows peace of mind.

Frequently Asked Questions: Shaft Mounted Gearbox for Mining Conveyors

Question 1: What torque ratings should a mine look for when selecting a shaft mounted gearbox for a long overland conveyor?

Answer: For a typical overland conveyor of 1.5 km length and 1200 tph capacity, the shaft mounted gearbox must deliver at least 48,000 Nm output torque with a service factor of 1.8 or higher. Our factory recommends using the CEMA method to calculate absorbed power plus 25 percent safety margin. For example, a conveyor with 250 kW drive requires a Shaft Mounted Gearbox rated for 310 kW mechanical rating. Additionally, check the thermal rating: many manufacturers provide only mechanical rating. Our Saifu publishes both thermal and mechanical ratings. In hot mines (ambient >38°C), the thermal rating drops by 12 percent. So you must select one size larger or add external cooling. Another critical parameter is the starting torque. If the conveyor uses a direct on line starter, the gearbox must handle 200 percent torque for 15 seconds. Our units have tested to 250 percent without tooth fracture. Always ask for strain gauge test reports. For inclined conveyors, add another 15 percent to the torque requirement. Based on our field data, undersizing the Shaft Mounted Gearbox is the number one reason for premature bearing failure in Vietnamese mines.

Question 2: How does the hollow shaft shrink disc connection compare to traditional keyed shafts in mining applications?

Answer: The shrink disc connection is far superior for mining because it eliminates keyway fatigue and fretting corrosion. In traditional keyed shafts, the keyway creates stress risers. After 5000 hours, micro cracks appear near the keyway ends. Our Shaft Mounted Gearbox uses a shrink disc that applies uniform radial clamping force around the entire hollow shaft circumference. This distributes torque evenly and avoids any metal to metal impact. In a Cambodian limestone mine, keyed competitor gearboxes failed every 8 months due to key shearing. After switching to our shrink disc design, the same conveyor ran for 27 months without a single drive end failure. Another advantage: the shrink disc allows infinite positioning along the pulley shaft. This helps center the gearbox relative to the belt centreline. Also, removal is easier: just loosen the shrink disc bolts and apply a hydraulic pressure port to break the grip. No puller or torch needed. Our factory advises retorquing the shrink disc bolts after the first 50 hours of operation. That simple step ensures zero slippage for years. For mines with frequent belt replacement, the shrink disc pays for itself in reduced downtime.

Question 3: What lubrication strategy extends the life of a shaft mounted gearbox in high ambient dust conditions?

Answer: For dusty environments like aggregate or coal processing, we recommend fully synthetic PAO based oil ISO VG 320. Our Shaft Mounted Gearbox runs on synthetic oil because it resists oxidation and maintains film strength at 100°C. The oil change interval becomes 8000 hours instead of 2500 hours with mineral oil. More importantly, use a magnetic dipstick and change the breather filter every 1000 hours. Dust accumulation on the breather can cause vacuum inside the gearbox, pulling in more contaminants. Our factory also suggests installing a desiccant breather if humidity exceeds 80 percent. Another critical point: never overfill the gearbox. Overfilling causes churning losses and overheating. The correct oil level is midway up the lowest gear when the Shaft Mounted Gearbox is stationary. For inclined conveyors, use the auxiliary level plug on the high side. We also recommend an oil sample analysis every 2000 hours. Look for silicon (dust) and iron (wear). If silicon exceeds 50 ppm, inspect the seals and breather. Our Saifu provides a free oil analysis kit with every gearbox purchase. Following these steps, mines achieve 5 years of service before a major overhaul. Neglecting lubrication in dusty pits can kill a gearbox in 6 months.

Final Summary and Direct Support for Mining Operations

The evidence is clear: a heavy duty Shaft Mounted Gearbox supports mining conveyor performance through high torque density, hollow shaft mounting, advanced cooling and sealing, and integrated backstops. Our factory builds each unit with certified alloy steels and runs every gearbox on a test rig for four hours under full load. Our Saifu Vietnam Company Limited has supplied over 400 units to Southeast Asian mines with a 98.7 percent reliability rate. Investing in the right gearbox reduces cost per ton and improves safety.
