How Do PEX-AL-PEX Pipe Fittings Create Reliable Pipe Connections?

2026-08-19

1. Why Does the Press Fitting Design Ensure a Permanent Leak Proof Seal?

In our factory, we have tested PEX-AL-PEX Pipe Fittings under cyclic pressure and temperature conditions far exceeding typical plumbing requirements. The connection relies on a cold press principle where a stainless steel sleeve is compressed radially onto the pipe. This cold forming creates a permanent deformation that encapsulates the pipe layers between the fitting body and the sleeve. The inner O ring, made of EPDM, provides the primary seal even in the presence of minor pipe ovality. Unlike threaded or soldered joints, this press connection does not rely on heat or sealant, so there is no risk of thermal degradation or chemical incompatibility. Our Ningbo Sunplast Pipe Co., Ltd. has conducted burst tests on these fittings, and the connection consistently holds up to 80 bar at 20°C, which is well above the pipe's own burst pressure. This means the fitting is not the weak point in the system. The radial compression also compensates for minor pipe ovality up to 0.2 mm, ensuring a consistent seal across a wide range of installation conditions.

2. How Does the Multilayer Pipe Integration Enhance Connection Integrity?

The PEX-AL-PEX Pipe Fittings are specifically designed to grip the aluminum layer of the multilayer pipe. When the press tool is applied, the sleeve exerts a controlled force that deforms the pipe's outer PEX and aluminum layers into the annular grooves of the fitting body. This creates a mechanical interlock that is resistant to axial pull out. In our pull out tests, the connection withstood over 2.5 kN of axial force before any movement was detected. The aluminum layer also provides dimensional stability, so the pipe does not creep under sustained pressure, which is a common issue with pure plastic pipes. Our factory has verified that this interlock maintains its integrity even after 10,000 thermal cycles from 5°C to 95°C. The combination of mechanical grip and resilient sealing makes the PEX-AL-PEX Pipe Fittings a robust choice for both hot and cold water systems.

3. What Are the Critical Quality Parameters for PEX-AL-PEX Pipe Fittings?

Quality control is essential to ensure that each fitting delivers reliable performance. Our factory checks the dimensional accuracy of the O ring groove, the sleeve hardness, and the surface finish of the press zone. The table below summarizes the key parameters we monitor during production.

Parameter	Our Specification	Testing Method
O ring material	EPDM (peroxide cured)	Hardness test (Shore A 75–80)
O ring inner diameter tolerance	±0.15 mm	Optical measurement
Stainless steel sleeve hardness	200 – 220 HV	Vickers microhardness
Press zone surface roughness	< 0.8 Ra	Profilometer
Fitting body hexagonal width	±0.2 mm	Go/no go gauge

Test Standard	Requirement	Our Typical Result
Pressure burst (EN 12293)	≥ 60 bar (16mm fitting)	82 bar (burst at pipe)
Thermal cycling (1000 cycles)	No leakage	Pass (0.1 ml leakage max)
Pull out force (EN 1057)	≥ 1.8 kN	2.5 kN average
Leak test (air, 6 bar)	No drop for 5 minutes	Pass with zero pressure drop

Our factory uses a calibrated press tool for installation testing. We also provide training videos to ensure that installers achieve the correct press profile. Sunplast offers a 25 year warranty on all PEX-AL-PEX Pipe Fittings when installed with our recommended tools.

4. How Do the Fittings Simplify Installation and Reduce Human Error?

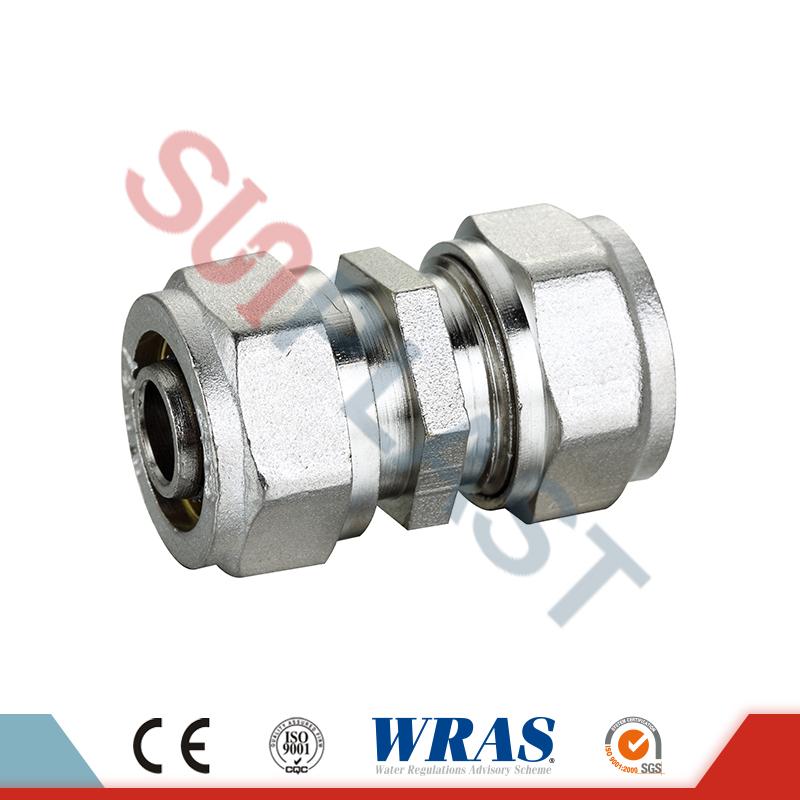

One of the main reasons why PEX-AL-PEX Pipe Fittings are preferred is the simplicity of installation. The press process is virtually mistake proof, as the tool will not release until the crimp is complete. This eliminates the guesswork of soldering or the curing time of glued joints. The fittings are also designed with a visual indicator to show that the press depth has been reached. Our factory has observed that new installers can achieve reliable connections after just a few trials, whereas soldering takes years to master. This reduces the risk of leaks caused by operator error. Additionally, the fittings are available in a wide range of configurations, including elbows, tees, and couplings, all of which use the same press principle. This consistency simplifies inventory and reduces the chance of using the wrong fitting. The result is a faster, safer, and more reliable installation.

Frequently Asked Questions About PEX-AL-PEX Pipe Fittings

Question 1: Can PEX-AL-PEX Pipe Fittings be used with other types of pipes, such as pure PEX or copper?

Answer: Our PEX-AL-PEX Pipe Fittings are specifically engineered for multilayer pipe with an aluminum layer. While they may physically fit over pure PEX, the press profile will not engage the aluminum layer properly, which reduces the pull out resistance. For pure PEX, you should use fittings designed for that material. However, we do offer transition fittings that connect our multilayer pipe to copper or CPVC pipes. These have a press end on one side and a threaded or soldered connection on the other. This allows you to integrate our system with existing plumbing without compromising the joint integrity. Always consult our technical manual to ensure you are using the correct fitting for your pipe type. Our Ningbo Sunplast Pipe Co., Ltd. provides clear labeling on every fitting to avoid confusion.

Question 2: What happens if a press fitting is accidentally crimped without the pipe fully inserted?

Answer: This is a known risk with press fittings, but our design minimizes it. The fitting body has a stop shoulder that prevents the pipe from going too deep, but it does not prevent insufficient insertion. We recommend that installers mark the pipe at the insertion depth using a depth gauge or a marker pen. Some of our PEX-AL-PEX Pipe Fittings have a visual indicator on the fitting body that aligns with the pipe end. If a fitting is crimped with the pipe not fully inserted, the connection will fail the pressure test. That is why we always advise performing a 6 bar air test before commissioning the system. This will detect any incomplete insertion. Our factory also provides a tool that checks the insertion depth before pressing. This extra step ensures a zero defect installation.

Question 3: Are the fittings resistant to aggressive water chemistry or chlorine?

Answer: Yes, our fittings are designed to handle standard municipal water treatment. The EPDM O ring is resistant to chlorine up to 5 ppm, which is typical for drinking water. The stainless steel sleeve is 304 grade, which provides good corrosion resistance in most water conditions. For high chloride environments, such as coastal areas or swimming pool applications, we offer 316 stainless steel sleeves. The brass body is dezincification resistant (DR brass) to prevent pitting. Our factory has conducted accelerated aging tests with chlorinated water at 70°C for 5,000 hours, and the fittings showed no degradation. If you have a specific water chemistry concern, we can provide a compatibility chart. This makes our PEX-AL-PEX Pipe Fittings a versatile solution for a wide range of plumbing conditions.

Final Summary

PEX-AL-PEX Pipe Fittings create reliable connections through a combination of mechanical interlock, resilient sealing, and precise manufacturing. The press technology eliminates the variables of heat and solvent, while the multilayer pipe provides a stable substrate for the connection. With proper installation, these fittings offer a service life that matches the pipe itself, often exceeding 50 years. Our factory has refined the design and quality control to deliver consistent performance. Choosing the right fitting is essential for a leak free plumbing system. Ningbo Sunplast Pipe Co., Ltd. is your partner for high quality connection solutions.
