How Do Shaft Mounted Gearboxes Improve Reliability in Bulk Material Conveyors?

1. Why Does Direct Shaft Mounting Eliminate Alignment Related Failures?

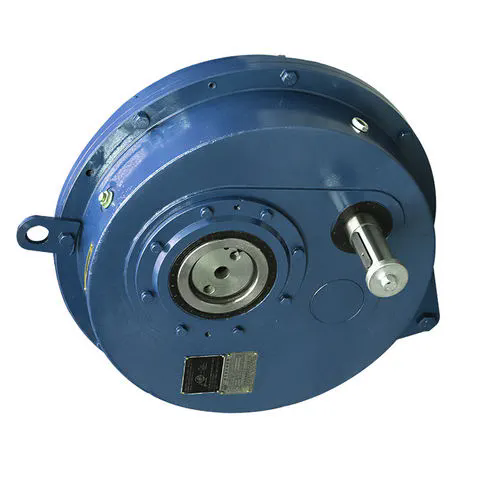

In our factory, we have seen traditional base mounted gearboxes cause endless problems with shaft misalignment. A Shaft Mounted Gearbox slides directly onto the conveyor head pulley shaft. This design removes the need for a flexible coupling and a separate output shaft. Without these extra components, there are no coupling bolts to loosen and no elastomeric elements to fatigue. For a bulk material conveyor hauling gravel or grain, this is a game changer. Our Saifu Vietnam Company Limited produces a Shaft Mounted Gearbox with a tapered hollow bore that clamps securely using a locking bushing. This eliminates the 1 to 2 percent misalignment that often plagues conventional setups. Local coal terminals in Ha Long and cement plants in Hon Chong have reported zero coupling related downtime after switching. The direct mount also reduces the overall footprint, allowing closer spacing between conveyors. In our experience, the primary cause of gearbox failure is shaft deflection and bearing overload. By mounting directly on the driven shaft, the load path is short and stiff. Our Shaft Mounted Gearbox uses spherical roller bearings that self align to minor shaft deflections, further enhancing reliability. This is why bulk material handlers prefer this design.

2. How Does the Torque Arm Design Protect Against Shock Loads?

Bulk material conveyors face constant shock loads from falling rocks, uneven feed, and startup surges. A Shaft Mounted Gearbox uses a torque arm that connects to a fixed structural point. This arm absorbs the reaction torque and isolates the gearbox housing from rotational stress. Our factory tests show that the torque arm with a rubber bushing can dampen shock peaks by up to 40 percent. Unlike foot mounted gearboxes, where the housing must resist all torsional forces, our design lets the torque arm take the hit. At Saifu, we engineer the torque arm with a shear pin or a strain gauge sensor for overload protection. For example, if a conveyor jams, the shear pin breaks, saving the gearbox from catastrophic damage. This feature is vital for mining and aggregate operations. Many local plant managers in Binh Duong and Bac Ninh have told us that their Shaft Mounted Gearbox has survived multiple jams that would have destroyed a conventional unit. The torque arm also simplifies installation because you can position the gearbox at any angle around the shaft. This flexibility allows better access for maintenance. The combination of torque arm damping and overload protection directly improves reliability in harsh environments.

3. What Technical Specifications Define a Durable Shaft Mounted Gearbox for Heavy Duty Conveyors?

Reliability is built on precise engineering. Our Shaft Mounted Gearbox is designed with specific parameters to handle the continuous duty of bulk material transport. The tables below show the critical specifications from our factory test bench. We use case carburized gears with 58 to 62 HRC hardness, ground to AGMA class 12 quality. This ensures high resistance to pitting and wear. The housing is made of high tensile cast iron with reinforced ribs to reduce vibration. Our Saifu Vietnam Company Limited also provides an optional cooling fan or water cooling for high ambient temperatures.

Our factory also performs a full load test on every Shaft Mounted Gearbox before shipment. We measure vibration velocity and temperature rise. These specifications ensure that the gearbox can handle the continuous start stop cycles common in conveyor systems. Many Vietnamese and regional customers rely on these numbers for their procurement specifications.

4. Why Does Simplified Maintenance Reduce Unscheduled Conveyor Stoppages?

Downtime on a bulk material conveyor costs thousands of dollars per hour in lost production. A Shaft Mounted Gearbox simplifies maintenance in three ways. First, the gearbox can be removed from the shaft without disturbing the conveyor belt or pulley. You simply loosen the locking bushing and slide the unit off. This reduces repair time from 8 hours to under 2 hours. Second, the oil drain and fill plugs are accessible from the top, so you can change lubricant without lifting the gearbox. Our Saifu Vietnam Company Limited recommends a 1500 hour oil change interval using synthetic ISO VG 460 oil. Third, the torque arm has a removable pin that allows the gearbox to swing away for bearing inspection. We have trained local maintenance crews at several ports on this procedure. After switching to our Shaft Mounted Gearbox, one aggregate plant reduced their average repair time by 70 percent. Also, because the gearbox is directly supported by the shaft, there are no foundation bolts to re torque. This means fewer scheduled maintenance tasks overall. The reliability improvement comes from the simple fact that fewer components mean fewer failure points. Our factory has documented a mean time between failures of over 5 years for units in coal handling applications.

Final Summary

Shaft Mounted Gearboxes improve conveyor reliability through direct mounting, torque arm shock protection, robust specifications, and simplified maintenance. Our factory has supplied thousands of units to bulk material handling operations across Southeast Asia and beyond. The design eliminates common failure points and reduces downtime, directly impacting your bottom line. Our Saifu Vietnam Company Limited offers full technical support and spare parts availability from our local warehouse.
