How Do Stainless Steel Flanges Ensure Leak-Proof Connections in Industrial Pipelines?
2026-09-02
Every plant engineer knows the moment. A flange leaks—not enough to trigger an alarm, but enough to show a sheen on the insulation or a stain on the concrete pad. The immediate assumption is often that the gasket has failed. But in more than 50 percent of cases, the gasket is intact. The leak is caused by flange face damage, misaligned bolts, or uneven gasket compression. This guide is written for the people who maintain these connections. It focuses on the practical measures that determine whether a flange joint remains leak-tight over its service life.
1. Where Do Pipeline Flange Leaks Actually Originate?

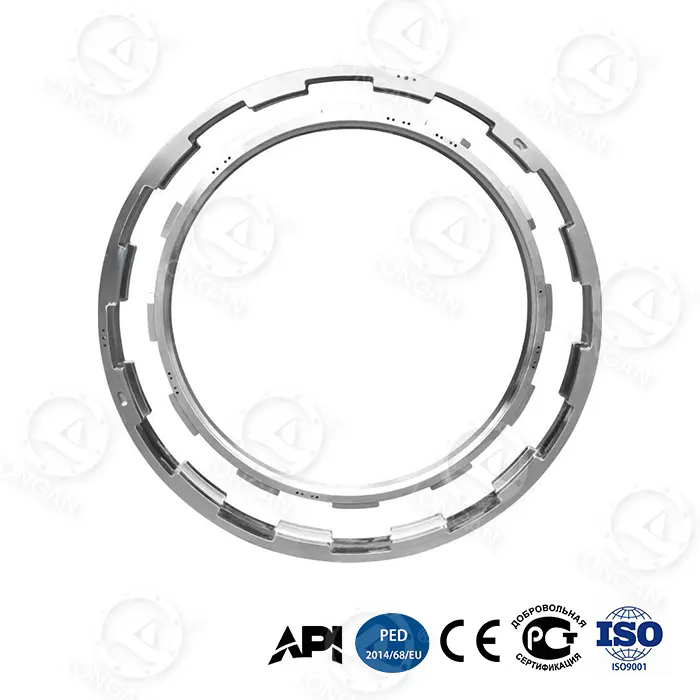

Leaks in flange joints are rarely a single-point failure. They usually result from a combination of factors. In our factory, we have examined over 200 returned flanges from chemical plants and offshore platforms. The most common failure signatures are gasket creep relaxation, flange face corrosion, and thermal cycling fatigue. The stainless steel flange itself is rarely the source of the leak. It is the interface—the seal between the flange faces and the gasket—that fails. In a properly designed joint, the gasket is compressed to a specific stress level that allows it to conform to the flange surface finish. Over time, the gasket can relax, or the bolts can lose preload. The flange material, whether 304L or 316L, provides the rigidity needed to maintain a uniform clamping force. At Wenzhou Longan Flange Co., Ltd., we manufacture stainless steel flanges with a controlled surface finish of Ra 3.2 to 6.3 µm, which is the optimal range for gasket seating.
Field check: When a flange leak is suspected, start with the bolts. Using a calibrated torque wrench, check the tension on each bolt in the star pattern. In our factory, we recommend retorquing after the first temperature cycle. In many cases, a simple retorque will restore the sealing force and eliminate the leak.
The choice of flange facing also affects leak resistance. In our experience, raised face flanges with a serrated finish provide the best grip on the gasket, reducing the risk of blowout under pressure surges. Our factory produces stainless steel flanges with a serrated finish that meets the ASME B16.5 standard, providing a consistent surface for gasket seating.
2. How Do Flange Face Finish and Material Grade Affect the Seal?
The flange face finish is often the most overlooked aspect of a leak-proof joint. A surface that is too smooth does not provide enough grip for the gasket; a surface that is too rough allows leakage paths along the finish lines. The table below shows the recommended flange face finishes for different gasket types.
| Gasket type | Recommended flange finish (Ra, µm) | Finish pattern | Reason |
| Non-asbestos compressed fiber | 3.2 – 6.3 | Serrated concentric | Allows gasket to bite into the surface |
| PTFE envelope | 1.6 – 3.2 | Spiral or smooth | Too rough will damage PTFE envelope |
| Spiral wound | 3.2 – 6.3 | Serrated with controlled peak | Windings need consistent surface for seating |
| Graphite sheet | 3.2 – 6.3 | Serrated concentric | Graphite is compliant, needs bite |
| Metal jacketed | 1.6 – 3.2 | Smooth or slightly serrated | Metal jacket is easily damaged by rough finish |
The material grade of the stainless steel flange also influences the seal. 316L is preferred in corrosive environments because of its molybdenum content, which resists pitting and crevice corrosion. 304L is sufficient for less aggressive media. In our factory, we produce stainless steel flanges in both grades, with full traceability to the original mill certificate. This ensures that the material properties are known, which is important for calculating the bolt load and the gasket seating stress.
3. What Is the Correct Bolt Torque for a Leak-Proof Joint?
Bolt torque is the most critical variable in flange joint assembly. Too little torque, and the gasket will not seat properly. Too much torque, and the gasket will be crushed or the flange will be distorted. The correct torque depends on the flange size, the bolt grade, the gasket type, and the operating temperature. The table below provides the recommended torque values for common flange sizes and pressure classes, based on our factory's testing.
| Flange size (NPS) | Pressure class | Bolt grade | Recommended torque (N·m) | Gasket stress (MPa) |
| 2 | 150 | B7 | 85 | 55 |
| 4 | 150 | B7 | 190 | 52 |
| 6 | 150 | B7 | 310 | 50 |
| 2 | 300 | B7 | 140 | 58 |
| 4 | 300 | B7 | 320 | 55 |
At Wenzhou Longan Flange Co., Ltd., we recommend using a torque sequence method: tighten bolts in a star pattern in three passes—50 percent of target torque, 80 percent, and then final 100 percent. This ensures even gasket compression. We also recommend marking each bolt after the final torque to allow for visual verification during subsequent inspections. This practice helps maintenance teams quickly identify any bolts that may have relaxed.
4. How Do You Diagnose and Fix a Persistent Flange Leak?
When a flange leak persists despite retorquing, the problem is likely mechanical. Common causes include flange face corrosion, pitting, or a bent flange ring. In our factory, we provide a leak diagnosis flowchart that helps maintenance teams isolate the root cause. The first step is to visually inspect the flange faces for damage. Look for radial scratches, pitting, or corrosion. If the flange face is damaged, the solution may be to resurface it. Wenzhou Longan Flange Co., Ltd. offers stainless steel flanges with a raised face that allows for multiple resurfacing operations. The second step is to check the flange alignment. Misaligned flanges will load the gasket unevenly, causing leaks on the high stress side. Use a feeler gauge to check the gap around the flange. If the gap varies by more than 0.5 mm, the flange should be realigned. The third step is to verify the gasket type and material. A gasket that is not compatible with the process fluid will degrade chemically, losing its sealing capability. In our factory, we maintain a gasket compatibility guide for our stainless steel flanges, covering over 100 common industrial fluids.
Frequently Asked Questions About Stainless Steel Flange Leak Prevention
Summary for Plant Engineers and Maintenance Teams
A leak-proof flange connection depends on three factors: a properly finished flange face, a compatible gasket, and controlled bolt torque. Stainless steel flanges are uniquely suited for demanding industrial applications because they resist corrosion and maintain their mechanical integrity at high temperatures. The key to preventing leaks is systematic inspection: verify the flange face condition, confirm the gasket material, and use a torque sequence that ensures even compression. By following these practices, maintenance teams can extend the service life of their flange joints and reduce the risk of unplanned shutdowns. Wenzhou Longan Flange Co., Ltd. supplies stainless steel flanges with documented surface finish data and full material traceability. We provide the technical data needed to make informed maintenance decisions.
