How Do You Properly Install a Flange Insulating Gasket Set for Maximum Efficacy?

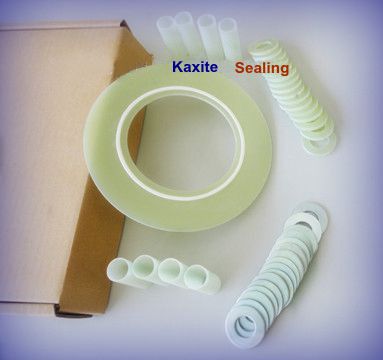

Flange Insulating Gasket Sets are essential components for preventing galvanic corrosion and ensuring safe electrical isolation between flanged connections. At Ningbo Kaxite Sealing Materials Co., Ltd., our team ensures that every gasket set meets the highest industrial standards for insulation resistance and mechanical strength. Our products are manufactured using high-grade epoxy-impregnated materials, reinforced with fiberglass for durability. The dimensions of our Flange Insulating Gasket Sets are precisely engineered to fit standard flange sizes, minimizing the risk of leakage or misalignment.

We understand that our customers rely on reliable isolation, and our factory implements strict quality control to ensure every set performs optimally under pressure and temperature variations.

How Should You Prepare Flanges Before Installing an Insulating Gasket Set?

Proper surface preparation is crucial to achieving maximum efficacy of Flange Insulating Gasket Sets. Our factory recommends cleaning both flange faces thoroughly to remove any rust, debris, or residual lubricant. We apply a non-conductive anti-seize compound on bolt threads to prevent electrical continuity that could compromise insulation. Ensuring that bolt holes are aligned and free from deformation allows our gaskets to seat evenly, which is vital for both sealing and electrical isolation. Our team often advises that our customers verify the flange alignment with precision tools before placing the gasket. This attention to detail ensures our Flange Insulating Gasket Sets perform as intended, providing reliable long-term service without the need for frequent maintenance.

What Is the Correct Sequence for Installing a Flange Insulating Gasket Set?

The installation sequence determines the efficiency and lifespan of the Flange Insulating Gasket Sets. First, place the gasket centered between the flanges, ensuring full contact with the flange faces. Then, insert insulating sleeves into bolt holes and use insulating washers under each nut. Our factory recommends tightening bolts gradually in a crisscross pattern to distribute pressure evenly. Over-torquing can damage the gasket, while under-torquing may lead to leaks or electrical conduction. At Ningbo Kaxite Sealing Materials Co., Ltd., our engineering team provides torque guidelines specific to each model, allowing our customers to install the gasket safely while maintaining insulation integrity. Our commitment to precise instructions ensures our customers achieve maximum efficacy from every set.

How Can Material Selection Affect the Performance of a Flange Insulating Gasket Set?

Material choice is a critical factor that affects durability, chemical resistance, and insulation capability. Our Flange Insulating Gasket Sets use laminated epoxy resin reinforced with high-strength fiberglass. This combination provides excellent dielectric strength, resistance to temperature fluctuations, and corrosion protection. We have observed that using substandard materials often results in premature gasket degradation and reduced insulation resistance. Our factory tests each batch of material under simulated operational conditions to verify performance. By choosing our products, our clients ensure long-term reliability and reduced maintenance costs.

What Are Common Mistakes to Avoid When Installing Flange Insulating Gasket Sets?

Incorrect installation can lead to leaks, reduced insulation, or early failure. Common mistakes include: misaligned flanges, improper bolt torque, failure to use insulating sleeves and washers, and using damaged or worn gaskets. Our factory strongly emphasizes that our customers inspect each gasket prior to installation and replace any defective components. Additionally, ensuring bolts are tightened evenly prevents uneven compression, which is one of the most frequent causes of gasket failure. Our team provides technical support to help our clients avoid these pitfalls, ensuring our Flange Insulating Gasket Sets deliver reliable performance.

FAQ

Q1: How can I ensure the gasket maintains electrical isolation under high pressure?
A1: To maintain isolation, verify that all flange surfaces are clean and flat, use insulating sleeves for bolts, and tighten nuts evenly in a crisscross pattern following the torque specifications provided by our factory. Avoid over-compressing the gasket to prevent cracks that reduce dielectric strength.

Q2: What is the recommended maintenance schedule for installed Flange Insulating Gasket Sets?
A2: We recommend inspecting gaskets every 6 months or after major operational cycles. Check for signs of wear, corrosion, or compression set. Replacing worn gaskets promptly ensures continued insulation and prevents costly equipment downtime.

Q3: Can Flange Insulating Gasket Sets be used in extreme temperatures?
A3: Yes, our Flange Insulating Gasket Sets are designed to operate in a wide temperature range, from -50°C to 180°C depending on the model. Using materials such as epoxy-fiberglass laminates ensures they maintain dielectric strength and mechanical integrity even under fluctuating thermal conditions.

How Do Our Customers Maximize the Lifespan of Their Flange Insulating Gasket Sets?

Our factory provides clear guidelines on proper storage, handling, and installation techniques. Store gaskets flat in a cool, dry environment to avoid deformation. During installation, ensure flange faces are smooth and aligned, and follow the torque specifications exactly. Our engineering team often recommends applying a thin non-conductive lubricant on sleeves to facilitate installation without compromising insulation. By following our procedures, our clients benefit from longer-lasting Flange Insulating Gasket Sets, reduced maintenance costs, and improved operational safety. Kaxite Sealing prides itself on offering technical support to guide every step, ensuring that our products perform reliably throughout their service life.

Conclusion

Proper installation of Flange Insulating Gasket Sets is essential to guarantee electrical isolation, prevent corrosion, and maintain safe and efficient operations. At Ningbo Kaxite Sealing Materials Co., Ltd., our products are designed with precision, high-quality materials, and extensive testing to ensure maximum efficacy. By following proper surface preparation, correct installation sequences, and careful material selection, our customers can achieve optimal performance and longevity. We encourage you to contact our technical team to discuss your specific requirements and receive guidance on selecting the right Flange Insulating Gasket Sets for your applications. Ensure reliable isolation and enhanced equipment safety today with our professional solutions.
