How Does a 2 Axis P Type Positioner Improve Robotic Welding Efficiency?

In modern robotic welding, positioning accuracy, flexibility, and stable workpiece handling are just as important as the welding robot itself. A robot may have a wide working range, but difficult workpiece geometries can still create inaccessible welding angles, uneven weld pools, and unnecessary manual repositioning. This is where a 2 Axis P Type Positioner becomes an important part of an automated welding system. By combining rotation and tilting movements, it can present different surfaces of a workpiece to the welding torch and help maintain a more suitable welding position throughout the operation. The dual-axis concept is widely used for components that require welding on multiple sides or at different angles.

For manufacturers looking to improve welding consistency while handling customized workpieces, Wenzhou XARP Industrial Robot Co., Ltd. provides 2 Axis P Type Positioner solutions designed for integration with robotic welding applications. One of its key advantages is the ability to support boat-type customization, allowing the positioning structure, worktable, fixtures, and related configuration to be adapted according to the shape and production requirements of the customer's workpiece.

What Is a 2 Axis P Type Positioner?

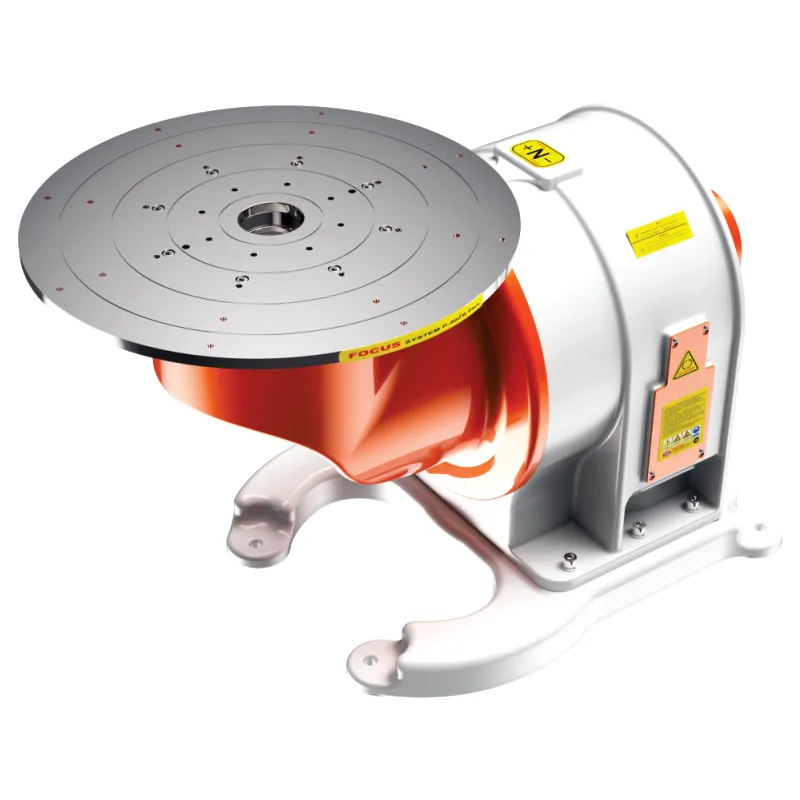

A 2 Axis P Type Positioner is a robotic positioning device that uses two controlled axes to rotate and tilt a workpiece. Instead of keeping the component in one fixed orientation, the positioner changes its angle so that the robot can approach different welding seams more effectively.

In a typical robotic welding application, one axis provides rotational movement while the other provides tilting movement. The coordinated motion gives the workpiece considerably greater positioning flexibility than a single-axis turntable. This makes the equipment particularly useful for compact assemblies, irregular components, brackets, frames, machinery parts, and other products requiring welding from several directions.

The XARP design emphasizes a sturdy iron frame combined with coordinated two-axis movement. During operation, the worktable can rotate and flip the workpiece to help bring weld seams into a favorable position, including the commonly desired "boat position" for welding.

Key Functions at a Glance

Why Is Dual-Axis Positioning Important for Welding?

Welding quality depends heavily on torch accessibility and workpiece orientation. When a joint is positioned at an inconvenient angle, the robot may need to use a more complicated torch path. This can affect travel speed, torch angle, shielding conditions, and weld-pool control.

A two-axis positioner helps solve this problem by moving the workpiece rather than forcing the robot to perform every adjustment with its arm. The positioner can continuously change the component's orientation, allowing the welding torch to approach joints from a more favorable direction.

This approach can provide several practical benefits:

• Improved weld accessibility: Multiple surfaces can be brought into the robot's effective working zone.

• More consistent welding: Better positioning helps maintain a stable torch angle and welding path.

• Reduced manual repositioning: Operators spend less time turning or resetting components.

• Higher automation potential: Positioner movement can be coordinated with the robot program.

• Better production repeatability: The same programmed positioning sequence can be repeated for subsequent workpieces.

• Greater product flexibility: One workstation can accommodate multiple component configurations.

Dual-axis P-type systems are particularly suitable when a component has welds on multiple faces and requires both rotation and angular adjustment.

How Does the 2 Axis P Type Positioner Work?

The working principle is relatively straightforward but highly valuable for robotic automation. First, the workpiece is secured onto the positioner's worktable using an appropriate fixture. The robot controller or integrated control system then coordinates the positioner's two axes according to the welding program.

During welding, the positioner can:

1. Load and securely hold the workpiece.

2. Rotate the component around its primary axis.

3. Tilt the component to change the welding angle.

4. Present each weld seam to the robot.

5. Maintain a suitable orientation during welding.

6. Return to a programmed loading or unloading position.

The combined movement of the two axes enables the workpiece to reach various orientations rather than relying only on the robot arm's movement. This is especially useful for complex components where a fixed table would create inaccessible areas.

When synchronized properly with the robot, the positioner becomes more than a supporting device—it becomes an additional motion system within the robotic welding cell.

What Makes Boat-Type Customization a Major Advantage?

For many industrial customers, standard equipment is not enough. Workpieces may differ in length, width, height, center of gravity, mounting points, or welding requirements. This is particularly important for boat-shaped and vessel-related components, where conventional flat worktables may not provide the required support or orientation.

The ability to support boat-type customization allows the positioner to be configured around the actual production application rather than forcing the customer to redesign the workpiece around a standard machine.

With Wenzhou XARP Industrial Robot Co., Ltd., customization can be considered from several aspects:

1. Customized Worktable Structure

The working platform can be designed according to the dimensions and geometry of the customer's workpiece. This helps improve fixture compatibility and positioning stability.

2. Customized Fixture Arrangement

Different products require different clamping solutions. Customized fixture layouts can help secure irregular or boat-shaped components while leaving sufficient access for the welding torch.

3. Customized Rotation and Tilting Requirements

The required movement range depends on the workpiece geometry and welding sequence. A customized two-axis configuration can be developed around the required working angles.

4. Customized Load Requirements

Payload is not simply a matter of total workpiece weight. Center of gravity and eccentric loading also influence positioner performance. Therefore, customized engineering should consider the complete loading condition rather than weight alone.

5. Customized Robot Integration

The positioner can be incorporated into a robotic welding cell so that robot motion and positioner movement work together as one automated process.

This flexibility is particularly valuable for shipbuilding-related components, marine equipment, metal structures, customized fabrication, and other applications where workpiece geometry cannot be standardized.

What Results Can Manufacturers Expect?

When correctly selected and integrated, a 2 Axis P Type Positioner can significantly improve the practical performance of a robotic welding workstation.

For example, consider a workpiece requiring welds on its front, side, top, and underside surfaces. Without a positioner, the robot may have to approach each joint from difficult angles, while an operator may need to manually reposition the workpiece between operations.

With a two-axis positioner, the component can be rotated and tilted automatically. The robot therefore has more opportunities to maintain a favorable torch orientation while completing multiple welding sections in sequence.

The expected effects include:

Better accessibility → smoother welding paths → fewer manual adjustments → improved repeatability → higher automation efficiency

The actual results naturally depend on workpiece design, welding process, robot model, fixtures, payload, programming, and production conditions. Nevertheless, the dual-axis concept provides a strong foundation for flexible robotic welding.

2 Axis P Type Positioner vs. Single-Axis Positioner

For simple circular or flat components, a single-axis solution may be sufficient. However, when welding involves multiple faces, irregular geometries, or demanding orientation changes, a two-axis system can provide a more practical solution. Industry positioner guides similarly identify dual-axis P-type systems as suitable for irregular assemblies and multi-plane welding.

How to Select the Right Configuration?

Before purchasing a 2 Axis P Type Positioner, manufacturers should evaluate several technical factors:

• Workpiece weight and dimensions

• Center of gravity

• Required rotation and tilting range

• Required positioning accuracy

• Fixture design

• Welding torch accessibility

• Robot payload and reach

• Production cycle time

• Required automation level

• Special customization requirements

• Boat-shaped or vessel-related workpiece geometry

A well-designed system should not only carry the workpiece but also provide the required movement without creating excessive eccentric loads or restricting robot access.

For this reason, customization can be more valuable than selecting a standard model based solely on nominal payload.

Where Can It Be Applied?

The 2 Axis P Type Positioner can be considered for a broad range of robotic welding applications, including:

• Metal fabrication

• Machinery manufacturing

• Automotive components

• Agricultural machinery

• Structural assemblies

• Marine and boat-related components

• Vessel equipment

• Custom steel structures

• Industrial frames

• Multi-face welded assemblies

Its greatest value appears when the production process requires repeated positioning changes and when manual workpiece repositioning would reduce efficiency.

Why Choose Wenzhou XARP Industrial Robot Co., Ltd.?

For customers seeking more than an off-the-shelf positioning table, Wenzhou XARP Industrial Robot Co., Ltd. focuses on robotic automation solutions that combine mechanical positioning with practical welding requirements.

The 2 Axis P Type Positioner is designed around the principle of flexible two-axis movement, stable workpiece handling, and robotic welding accessibility. More importantly, the ability to support boat-type customization gives customers greater freedom to develop equipment around their actual workpiece instead of adapting production requirements to a fixed machine structure.

From worktable dimensions and fixture arrangements to movement requirements and robot integration, a customized solution can help create a more suitable automated welding workstation.

Conclusion

A 2 Axis P Type Positioner is an important component for robotic welding applications that demand flexible workpiece orientation. By combining rotation and tilting, it helps expose difficult weld seams, reduce manual repositioning, improve welding accessibility, and create more consistent automated production.

For manufacturers handling customized, irregular, multi-face, or boat-shaped workpieces, the ability to customize the positioner is especially important. Boat-type customization can provide a practical way to match the equipment to unique workpiece structures, fixture requirements, and welding processes.

If you are planning a robotic welding project and need a 2 Axis P Type Positioner tailored to your workpiece, Wenzhou XARP Industrial Robot Co., Ltd. can help you evaluate the required positioning structure and customization options. Contact us today to discuss your workpiece dimensions, payload, welding requirements, and boat-type customization needs, and develop a positioning solution designed for your production line.
