How Does a Crankcase Pressure Regulator Protect Refrigeration Compressors?
2026-09-08
In modern refrigeration systems, compressor protection is essential for maintaining stable operation, reducing unexpected downtime, and extending equipment service life. A Crankcase Pressure Regulator is a key pressure-control component installed in the suction line before the compressor. Its primary purpose is to limit excessive suction pressure entering the compressor, especially during startup, after defrosting, or following a long shutdown. This helps prevent motor overload and supports more controlled compressor operation.
For refrigeration equipment used on different vessel types, however, a standard valve may not always provide the best solution. Marine refrigeration systems can have different installation spaces, piping layouts, cooling loads, vibration conditions, and compressor configurations. This is where vessel-type customization becomes particularly valuable. Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. focuses on refrigeration automatic control components and provides solutions that can be adapted to different application requirements.
What Is a Crankcase Pressure Regulator?

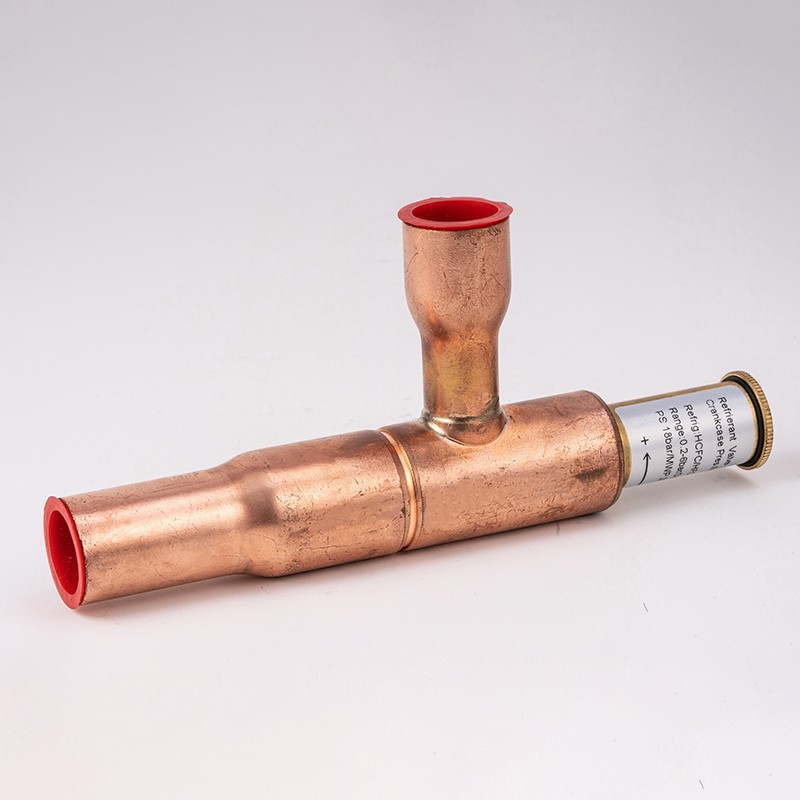

A Crankcase Pressure Regulator (CPR) is a mechanical pressure-regulating valve generally installed between the evaporator and compressor on the suction line. It regulates downstream pressure and restricts excessive suction pressure from reaching the compressor.
When suction pressure on the compressor side rises above the preset value, the regulator restricts refrigerant flow. As the pressure falls back toward the desired level, the valve opens progressively. This pressure-control principle allows the compressor to operate within its allowable suction-pressure range.
The component is particularly useful in situations such as:
- Compressor startup after a long shutdown
- Refrigeration system restart after defrosting
- High evaporator pressure during pull-down
- Sudden changes in refrigeration load
- Low-temperature refrigeration applications
- Marine refrigeration systems with variable operating conditions
Why Is a Crankcase Pressure Regulator Important?
A compressor can experience excessive load when suction pressure becomes too high. During a hot pull-down after defrosting, for example, evaporator pressure can rise significantly. If this high pressure reaches the compressor without sufficient control, the compressor motor may draw excessive current and become overloaded.
A properly selected Crankcase Pressure Regulator provides a controlled pressure barrier between the evaporator and compressor.
Its major functions include:
-
Protecting the compressor motor
It limits excessive suction pressure and helps prevent overload during demanding operating conditions. -
Stabilizing compressor startup
By controlling the pressure entering the compressor, the regulator supports a smoother restart after shutdown or defrost. -
Reducing mechanical and electrical stress
Controlled suction pressure can reduce unnecessary stress on compressor components and the motor. -
Supporting reliable refrigeration operation
Stable pressure control contributes to consistent system performance under changing loads. -
Improving equipment service life
Preventing repeated overload conditions can help reduce premature compressor failures.
How Does a Crankcase Pressure Regulator Work?
The working principle is relatively straightforward. The regulator senses pressure downstream, on the compressor side of the suction line. When downstream pressure exceeds the set value, the valve moves toward a more closed position. When the pressure drops below the setting, the valve opens to allow greater refrigerant flow.
The basic operating sequence can be summarized as:
High suction pressure → Valve restricts flow → Compressor pressure is controlled → Compressor overload risk is reduced
This makes correct installation particularly important. The regulator should normally be positioned in the suction line close to the compressor, with no unnecessary branch connections between the regulator outlet and compressor that could interfere with accurate pressure sensing.
Where Can It Be Used?
A Crankcase Pressure Regulator can be applied to a variety of refrigeration systems, including commercial, industrial, cold-storage, and marine refrigeration equipment.
For vessels, the component can be especially useful in:
| Vessel/Application | Typical Requirement | CPR Benefit |
|---|---|---|
| Fishing vessels | Stable cold storage | Compressor overload protection |
| Cargo vessels | Continuous refrigeration | Reliable pressure control |
| Passenger ships | Variable refrigeration loads | Stable compressor operation |
| Refrigerated vessels | Low-temperature cooling | Protection during startup |
| Offshore vessels | Compact equipment layouts | Flexible installation options |
| Customized marine systems | Special piping configurations | Vessel-specific valve solutions |
Why Is Vessel-Type Customization an Advantage?
Marine refrigeration equipment is rarely identical from one vessel to another. A fishing vessel may prioritize compact cold-storage refrigeration, while a cargo vessel may require continuous operation over long periods. Passenger ships can have multiple refrigeration zones, and offshore equipment may face strict limitations in installation space.
Therefore, selecting a Crankcase Pressure Regulator solely according to standard specifications may not be sufficient.
Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. can provide vessel-type customization according to the actual application. This allows customers to discuss requirements such as:
- Vessel type and refrigeration application
- Compressor model and allowable suction pressure
- Refrigerant and operating conditions
- Required pressure range
- Connection size and connection method
- Available installation space
- Suction-line configuration
- Specific marine equipment requirements
This customization capability can make the regulator easier to integrate into different marine refrigeration systems instead of forcing customers to redesign an existing installation around a standard component.
What Should Buyers Consider When Selecting a CPR?
Choosing the correct regulator requires more than simply matching the pipe diameter. Important technical parameters include refrigerant, evaporator capacity, operating pressure, maximum allowable compressor suction pressure, pressure drop, and system operating conditions.
A practical selection checklist includes:
Pressure: Is the adjustment range suitable for the compressor?
Capacity: Can the regulator handle the required refrigeration capacity?
Connection: Does the inlet and outlet connection match the existing piping?
Installation: Is the valve suitable for the available marine installation space?
Application: Is it intended for the specific refrigeration and vessel environment?
Customization: Can the manufacturer modify the solution according to vessel requirements?
Crankcase Pressure Regulator vs. a Standard Pressure-Control Approach
A CPR is specifically designed to control the pressure reaching the compressor. This distinguishes it from pressure-control devices intended primarily for evaporator pressure, capacity regulation, or other parts of the refrigeration circuit.
| Feature | Crankcase Pressure Regulator | General Pressure-Control Valve |
|---|---|---|
| Main purpose | Protect compressor from excessive suction pressure | Various pressure-control functions |
| Installation | Suction line before compressor | Depends on application |
| Compressor overload protection | Primary function | May not be primary function |
| Startup protection | Strong relevance | Application dependent |
| Marine customization | Can be engineered for vessel requirements | Depends on supplier |
| Suitable for changing loads | Yes, when correctly selected | Depends on design |
Why Choose Ningbo Sanheng?
For OEMs, refrigeration equipment manufacturers, marine engineering companies, and distributors, the value of a pressure regulator goes beyond the valve itself. The right supplier should understand both refrigeration control principles and practical equipment integration.
Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. combines product manufacturing experience with application-oriented support. Its Crankcase Pressure Regulator solutions can be considered for different refrigeration systems while offering an important advantage for marine projects: support for vessel-type customization.
Instead of using the same configuration for every project, customers can communicate their vessel model, refrigeration requirements, compressor specifications, connection requirements, and installation limitations. This helps create a more application-oriented solution for different marine refrigeration systems.
Final Thoughts
A Crankcase Pressure Regulator is a small but important component in compressor protection. By limiting excessive suction pressure, it can help reduce motor overload during startup, defrost recovery, and high-load operating conditions. Proper selection, setting, and installation are essential for achieving reliable performance.
For marine applications, customization is even more important because vessel designs, refrigeration loads, compressor configurations, and installation environments can vary considerably. Ningbo Sanheng Refrigeration Automatic Control Components Co., Ltd. provides a practical option for customers looking for reliable pressure-control components with vessel-type customization support.
If you are looking for a Crankcase Pressure Regulator for a fishing vessel, cargo ship, passenger vessel, offshore project, or customized marine refrigeration system, contact us to discuss your compressor specifications, pressure requirements, connection dimensions, and vessel application. Ningbo Sanheng can help you develop a suitable pressure-control solution for your refrigeration project.
