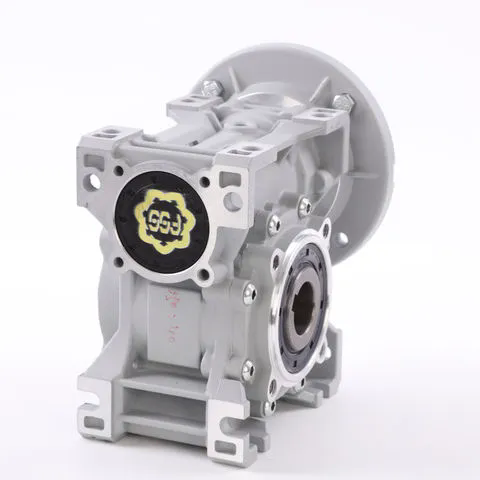

How Does a Worm Gearbox Prevent Reverse Rotation Safely?
2026-09-17
1. What Is the Physics Behind Self-Locking in a Worm Gearbox?
The self-locking property of a Worm Gearbox is determined by the relationship between the lead angle of the worm and the friction angle between the worm and the worm wheel. When the lead angle is smaller than the friction angle, the gearbox cannot be back-driven. The friction angle is the arctangent of the friction coefficient. For a steel worm and a bronze worm wheel with proper lubrication, the friction coefficient is typically 0.05 to 0.10, which corresponds to a friction angle of 2.9 to 5.7 degrees. This means that a Worm Gearbox with a lead angle below 2.9 degrees will be self-locking under static conditions. However, vibration can reduce the effective friction coefficient and cause the gearbox to back-drive even when the lead angle is below the static friction angle. This is why self-locking should never be the only safety mechanism in a critical application.
Self-locking condition: Lead angle < arctan(friction coefficient). For a typical bronze worm wheel with mineral oil lubrication, the friction coefficient is approximately 0.07, giving a friction angle of 4 degrees. A worm with a lead angle of 3 degrees will be self-locking under static conditions.
Saifu Vietnam Company Limited manufactures Worm Gearbox units with lead angles from 1 degree to 25 degrees. Our factory tests every self-locking design on a back-driving test rig to verify that it holds the rated load without rotation. We also provide the friction coefficient data for the specific materials and lubrication used in each gearbox.
2. What Factors Can Compromise Self-Locking in Real-World Applications?
Self-locking is not a permanent property. It can be compromised by four factors. The first is vibration. Vibration reduces the effective friction coefficient and can cause the worm to rotate slowly in the reverse direction. The second is lubrication. If the gearbox is over-lubricated or if the lubricant has a low viscosity, the friction coefficient decreases, and the self-locking margin is reduced. The third is wear. As the worm and worm wheel wear, the lead angle effectively increases, which reduces the self-locking capability. The fourth is temperature. High temperature reduces the viscosity of the lubricant, which reduces the friction coefficient. The table below shows the effect of these factors on the self-locking margin.
| Factor | Effect on friction coefficient | Effect on self-locking margin | Mitigation |
| Vibration (10 g RMS) | -15% | Reduced by 30% | Use a smaller lead angle; add a brake |
| Over-lubrication | -20% | Reduced by 40% | Follow the lubrication specification |
| Wear (after 5,000 hours) | -10% | Reduced by 20% | Monitor backlash; replace worn parts |
| High temperature (80°C) | -25% | Reduced by 50% | Use a high-viscosity lubricant |
In our factory, we design Worm Gearbox units with a self-locking margin of at least 1.5 under the worst-case operating conditions. This means that the lead angle is at least 1.5 times smaller than the friction angle. For applications with high vibration or temperature, we recommend a lead angle of 2 degrees or less. We also recommend the use of a secondary brake for all critical holding applications.
3. What Are the Redundant Safety Mechanisms for Preventing Reverse Rotation?
For applications where reverse rotation could cause injury or significant property damage, a single self-locking mechanism is not sufficient. A redundant safety system should include at least two independent mechanisms. The first is the self-locking Worm Gearbox itself. The second is a mechanical brake, such as a spring-applied, electrically released brake. The brake is mounted on the input shaft of the gearbox and engages when the power is removed. The third is a backstop, which is a one-way clutch that allows rotation in the forward direction but prevents rotation in the reverse direction. The table below compares these mechanisms.
| Mechanism | Principle | Response time | Holding capacity | Typical application |
| Self-locking worm gear | Lead angle < friction angle | Instantaneous (static) | Rated torque | Light-duty holding |
| Spring-applied brake | Spring force engages friction pads | 50 – 200 ms | 1.5x rated torque | Hoists, lifts, conveyors |
| Backstop clutch | One-way sprag or roller clutch | Instantaneous | 2x rated torque | Inclined conveyors |
| Mechanical lock | Pin or pawl engages a slot | Manual or automatic | Positive lock | Maintenance and repair |
Saifu Vietnam Company Limited manufactures Worm Gearbox units with integrated brake mounting flanges and backstop provisions. Our factory can supply the gearbox with a factory-installed brake or provide the mounting interface for a customer-supplied brake. We also offer a backstop option for conveyor applications.
4. How Should You Verify the Safety of a Reverse Rotation Prevention System?
Verification of a reverse rotation prevention system should include three tests. The first is a static holding test. The gearbox is loaded to the rated torque, and the input shaft is monitored for rotation. The rotation should be zero for a self-locking gearbox. The second is a dynamic back-driving test. The gearbox is subjected to a reverse torque equal to 1.5 times the rated torque, and the brake response is measured. The brake should engage within the specified time and hold the load without slipping. The third is a vibration test. The gearbox is subjected to vibration at the expected level while holding the rated load. The input shaft should not rotate. In our factory, we perform all three tests on every self-locking Worm Gearbox before shipment. We also provide a test report that documents the results.
Frequently Asked Questions About Worm Gearbox Reverse Rotation Prevention
Summary for Mechanical Engineers
A Worm Gearbox prevents reverse rotation through the self-locking effect, which occurs when the lead angle is smaller than the friction angle. However, self-locking is not a permanent guarantee. It can be compromised by vibration, wear, lubrication, and temperature. For critical applications, a redundant safety system that includes a self-locking gearbox, a spring-applied brake, and a backstop clutch is the recommended approach. Verification through static, dynamic, and vibration testing ensures that the system performs as designed. Saifu Vietnam Company Limited has been manufacturing Worm Gearbox units for over 15 years and supplies to lifting, conveying, and gate drive applications worldwide.
Saifu Vietnam Company Limited manufactures Worm Gearbox units with self-locking lead angles, integrated brake mounts, and backstop options. We provide full test reports and maintenance documentation for all of our products.
