How Does CCO Cladding Plate Improve Wear Protection and Support Custom Ship Applications?
2026-09-04

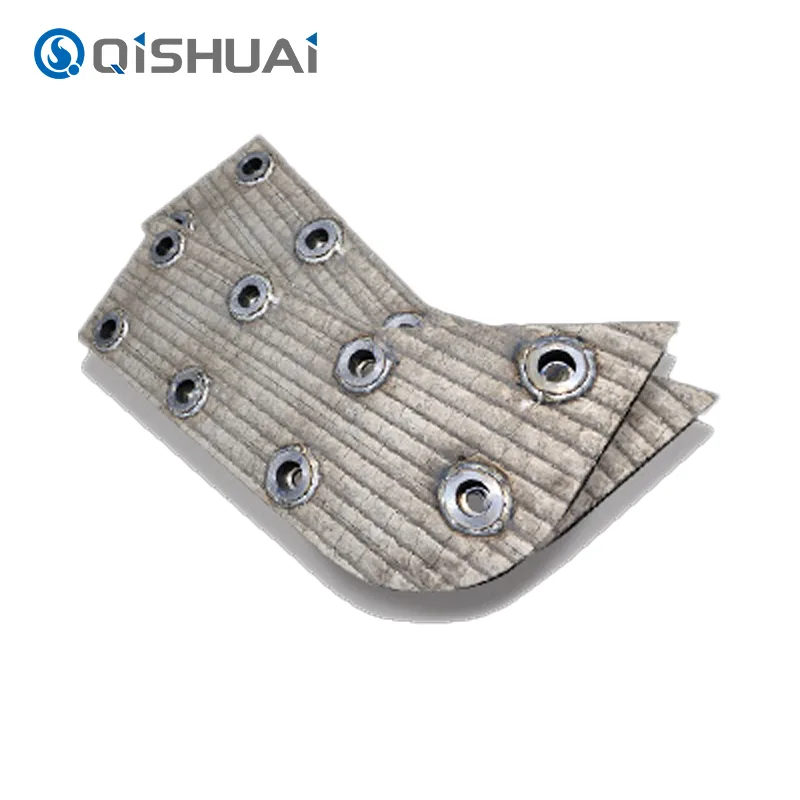

CCO Cladding Plate, also known as Chromium Carbide Overlay Plate, is designed for equipment and structures exposed to severe abrasion, impact, erosion, and material friction. By metallurgically bonding a hard chromium-carbide-rich overlay to a tough steel backing plate, it combines surface wear resistance with structural strength. This makes it a practical solution for mining, cement, steel, power generation, bulk material handling, and dredging applications. More importantly, for projects with complex dimensions or curved structures, Shandong Qishuai Wear Resistant Equipment Co., Ltd. provides customized CCO Cladding Plate solutions, including support for different ship types and ship-specific configurations, helping customers achieve better fitting, protection, and service life.
What Is CCO Cladding Plate?
CCO Cladding Plate is a composite wear-resistant material generally consisting of a mild-steel backing plate and a high-chromium, high-carbon alloy overlay. During the cladding process, the wear-resistant alloy is fused onto the base steel, forming a strong metallurgical bond.
The overlay contains hard chromium carbides that provide resistance against aggressive sliding abrasion. Meanwhile, the steel substrate contributes toughness, weldability, and structural support. This combination allows CCO Cladding Plate to perform where ordinary steel plates may wear rapidly.
Typical technical characteristics can include:
| Feature | Typical Benefit |
|---|---|
| Chromium carbide overlay | Excellent abrasion resistance |
| Steel backing plate | Structural strength and toughness |
| High surface hardness | Reduced wear and material loss |
| Weldable substrate | Easier fabrication and installation |
| Custom thickness | Adaptation to different wear conditions |
| Cut-to-size processing | Better fitting and material utilization |
| Formable configurations | Suitable for complex components |
Actual hardness, chemistry, thickness, and performance should be selected according to the working environment and application requirements.
Why Is CCO Cladding Plate Important?
Industrial equipment often handles abrasive materials such as ore, coal, clinker, sand, gravel, and mineral slurry. Continuous contact can gradually remove the working surface, resulting in thinner components, maintenance interruptions, and increased operating costs.
CCO Cladding Plate addresses this challenge by placing a highly wear-resistant layer exactly where abrasion occurs. Depending on the grade and application, CCO plates can be used for severe sliding abrasion and selected impact conditions. Industry examples include chutes, hoppers, crushers, conveyor components, pipes, screens, and dredging equipment.
For customers, the practical value is not simply hardness. A properly engineered CCO solution can help:
- Extend the service life of wear components
- Reduce the frequency of replacement
- Minimize equipment downtime
- Protect the underlying steel structure
- Improve maintenance efficiency
- Reduce long-term wear-part consumption
How Does CCO Cladding Plate Work in Different Applications?
The effectiveness of a CCO Cladding Plate depends on selecting the right overlay for the actual wear mechanism.
For example, sliding abrasion from mineral particles requires strong abrasion resistance, while applications involving repeated impact may require a different balance between hardness and toughness. Different CCO grades can therefore be developed for general abrasion, higher abrasion with impact, or specialized operating conditions.
Common Applications
- Mining equipment – Chutes, hoppers, crusher liners, screens, buckets, and transfer points.
- Cement plants – Feed chutes, separators, clinker handling systems, and material transfer equipment.
- Steel plants – Wear liners, material handling components, and high-abrasion areas.
- Power plants – Coal handling, ash handling, hoppers, and conveying systems.
- Dredging equipment – Pipes, elbows, pumps, and other components exposed to abrasive slurry.
- Marine and ship-related equipment – Customized wear-resistant panels and components for specific ship structures and operating environments.
How Does Ship-Type Customization Add Value?
One of the major advantages of working with Shandong Qishuai Wear Resistant Equipment Co., Ltd. is the ability to develop CCO Cladding Plate solutions around the customer's specific ship type instead of relying only on standard flat plates.
Different ships can have substantially different structural layouts, operating environments, material-handling systems, and wear zones. A dredger, bulk carrier, mining support vessel, or other specialized vessel may therefore require different plate dimensions, thicknesses, profiles, mounting arrangements, and wear-resistance requirements.
Ship-type customization can include:
- Customized plate dimensions
- Customized thickness combinations
- Curved or formed wear-resistant components
- Cut-to-shape plates based on drawings
- Customized holes and installation arrangements
- Wear protection for high-contact areas
- Solutions matched to different ship types
- Application-specific material and overlay selection
This flexibility is particularly valuable when the customer needs wear protection integrated into an existing vessel structure rather than simply purchasing a standard sheet.
What Results Can Customers Expect?
When the CCO Cladding Plate is correctly selected and installed, the most visible result is improved resistance to surface wear. The hard overlay takes the primary abrasive action while the steel backing provides mechanical support.
For equipment operators, this can translate into fewer wear-related replacements and more predictable maintenance planning. CCO plates are also available in fabricated forms, allowing them to be cut, formed, welded, or otherwise processed for specific applications.
CCO Cladding Plate vs. Conventional Wear Steel
| Comparison | CCO Cladding Plate | Conventional Wear Steel |
|---|---|---|
| Wear-resistant surface | Chromium-carbide overlay | Uniform steel material |
| Severe abrasion resistance | Excellent for suitable applications | Depends on grade |
| Custom fabrication | Available | Generally available |
| Complex wear protection | Highly adaptable | May require greater thickness |
| Component replacement | Potentially reduced | May be more frequent in severe wear |
| Ship-specific solutions | Can be customized | Depends on fabrication requirements |
The right choice should always be based on actual abrasion, impact, temperature, material characteristics, and structural requirements rather than hardness alone.
Why Choose Shandong Qishuai Wear Resistant Equipment Co., Ltd.?
For buyers looking for a CCO Cladding Plate supplier, product quality is only one consideration. Engineering support, customization capability, fabrication accuracy, and application understanding are equally important.
Shandong Qishuai Wear Resistant Equipment Co., Ltd. focuses on wear-resistant solutions and provides CCO plate products for demanding industrial applications. Its customization capability makes it suitable for projects requiring non-standard dimensions and application-specific wear protection.
For marine projects in particular, the ability to discuss ship type, operating conditions, wear location, dimensions, and installation requirements before production can help create a more practical solution than selecting a generic plate from a standard catalog.
What Should Buyers Consider Before Ordering?
Before purchasing CCO Cladding Plate, buyers should provide as much application information as possible:
- Material being handled
- Abrasion and impact conditions
- Working temperature
- Required plate thickness
- Base plate requirements
- Dimensions and tolerances
- Installation method
- Ship type, if used in a marine application
- Drawings or existing component dimensions
- Expected service conditions
This information helps the supplier recommend an appropriate CCO structure rather than simply selecting a plate according to price.
FAQ About CCO Cladding Plate
What does CCO stand for?
CCO stands for Chromium Carbide Overlay. It generally refers to a wear-resistant composite plate consisting of a steel backing and a chromium-carbide-rich overlay.
Is CCO Cladding Plate suitable for ships?
Yes. With appropriate engineering and fabrication, CCO Cladding Plate can be customized for marine and ship-related wear applications. Ship-type customization is particularly useful when dimensions, curves, installation positions, or operating conditions differ from standard industrial applications.
Can CCO plates be customized?
Yes. Depending on the supplier's production and fabrication capabilities, customization can include dimensions, thickness, cutting, forming, holes, and other configurations.
Is CCO Cladding Plate only used in mining?
No. Although mining is an important application, CCO plates are also used in cement, steel, power generation, ports, dredging, bulk material handling, and other industries where abrasion is a major concern.
Conclusion
CCO Cladding Plate offers a practical combination of a tough steel backing and a highly wear-resistant chromium carbide surface, making it a strong choice for demanding abrasion applications. Its value becomes even greater when the plate is engineered around the customer's actual working conditions.
For marine projects, support for customized ship types can make a significant difference. Instead of forcing a standard plate into a non-standard structure, customers can work with Shandong Qishuai Wear Resistant Equipment Co., Ltd. to develop wear-resistant components according to ship type, dimensions, operating environment, and installation requirements.
If you are looking for a reliable CCO Cladding Plate solution for mining equipment, industrial machinery, dredging systems, or customized ship applications, contact us with your drawings, dimensions, ship type, and working conditions. Shandong Qishuai Wear Resistant Equipment Co., Ltd. can help you explore a suitable wear-resistant solution for your specific project.
