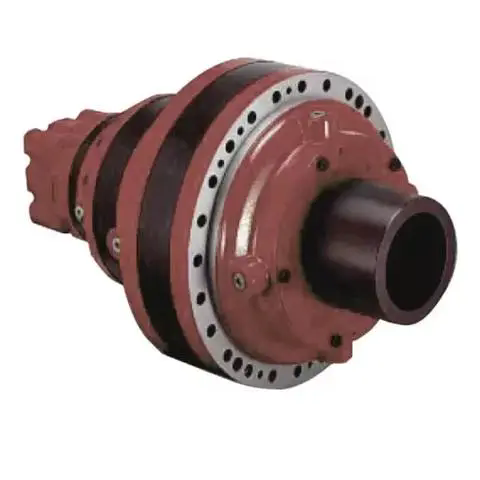

How Does Gear Ratio Affect Planetary Gearbox Performance?

1. How Does Ratio Affect Torque Output and Speed?

The fundamental relationship is defined by the gear ratio formula: output torque equals input torque multiplied by the ratio, and output speed equals input speed divided by the ratio. This is the starting point, but it is only the beginning. In a Planetary Gearbox, the ratio is determined by the number of teeth on the ring gear and the sun gear. A ratio of 10:1 means that for every 10 revolutions of the input shaft, the output shaft turns once, and the torque is multiplied by a factor of approximately 10. However, in our factory, we have observed that the actual torque delivery is slightly lower than the theoretical value due to friction losses. For a high ratio Planetary Gearbox, say 25:1, the internal forces are significantly larger because the planet gears must carry more load. This requires heavier bearings and stronger housings. Conversely, a low ratio of 3:1 has lower internal forces but may not provide enough torque for heavy loads. The choice is a balancing act between the required torque and the available space and budget.

2. How Does Gear Ratio Influence Efficiency and Heat Generation?

Efficiency is not constant across ratios. In our factory tests, we have found that a Planetary Gearbox with a ratio between 5:1 and 10:1 typically achieves the highest efficiency, around 96 to 97 percent for a single stage design. As the ratio increases beyond 15:1, the efficiency drops because more gear meshing stages are required. A two stage Planetary Gearbox with a total ratio of 30:1 will have an efficiency of 90 to 92 percent. The lost energy is converted into heat. A low efficiency means more heat, which requires additional cooling and can reduce the service life of the lubricant. The table below shows the efficiency and thermal characteristics for different ratio ranges based on our factory's dyno testing.

This data is critical for applications like conveyors or winches where continuous operation is expected. Choosing a ratio that pushes the Planetary Gearbox into the low efficiency zone will result in higher operating costs and more frequent oil changes. We always recommend customers to operate within the 5:1 to 12:1 range unless there is a specific torque requirement that justifies the lower efficiency.

3. How Does Ratio Choice Affect Bearing Life and Gear Tooth Stress?

The ratio has a direct impact on the load distribution among the planet gears. In a Planetary Gearbox, the sun gear drives multiple planet gears simultaneously. For a high ratio design, the planet gears are smaller in diameter, which means they rotate faster and experience higher centrifugal forces. The bearings in the planet gears must withstand both radial and axial loads. In our factory, we use dynamic load rating calculations to determine the bearing life for each ratio. For a 25:1 Planetary Gearbox, the planet bearing life is typically 30 to 40 percent shorter than a 10:1 unit at the same input power. This is because the higher ratio requires the planet gears to transmit more torque through a smaller contact area. The table below compares the key stress parameters for different ratios based on our engineering models.

These numbers show that a higher ratio does not just change output speed—it requires a more robust housing, larger bearings, and a heavier overall package. For mobile equipment like cranes or forklifts, the weight penalty can be a significant factor. Our Saifu Vietnam Company Limited offers custom design options where we can optimize the ratio for a given weight target, but we always advise our customers to consider the trade offs carefully.

4. How Does Ratio Selection Affect Backlash and Positioning Accuracy?

For servo applications and robotics, the gear ratio directly influences the positioning resolution. A higher ratio reduces the reflected inertia from the load back to the motor, which improves control stability. However, it also increases the backlash measured at the output shaft. Backlash is the angular play between the input and output when the direction of rotation is reversed. A typical single stage Planetary Gearbox has a backlash of 3 to 5 arc minutes. For a high ratio two stage unit, the backlash can accumulate to 8 to 12 arc minutes. This may be unacceptable for precision positioning applications. In our factory, we offer a precision ground gear option that reduces backlash to 1 arc minute per stage, but this comes at a higher cost. The ratio selection must align with the required accuracy. For applications like CNC rotary tables, a lower ratio with higher resolution motor is often preferred. For applications like conveyor drives, where accuracy is less critical, a higher ratio is acceptable. We often work with our customers to simulate the positioning error based on the selected ratio and the motor encoder resolution.

Final Summary

The gear ratio of a Planetary Gearbox affects every aspect of performance: torque, speed, efficiency, heat generation, bearing life, weight, and positioning accuracy. There is no single "best" ratio—only the right ratio for your specific application. The key is to understand the trade offs and to select a ratio that balances your priorities. Our factory has helped thousands of engineers make this decision correctly. Saifu Vietnam Company Limited is committed to providing you with the technical data and support you need to make an informed choice.
