What Are Arc Magnets and Why Are They Essential for Modern Motor Applications?

Arc Magnets play a crucial role in today's advanced industrial and commercial technologies. Designed with a curved shape that matches the geometry of cylindrical devices, Arc Magnets are widely used in electric motors, generators, magnetic couplings, sensors, and various automation systems. Their unique design allows for optimized magnetic field distribution, making them significantly more efficient than standard block magnets in rotating equipment. As industries continue to demand higher efficiency, reliability, and energy savings, Arc Magnets have become an indispensable component in modern engineering solutions.

Understanding Arc Magnets

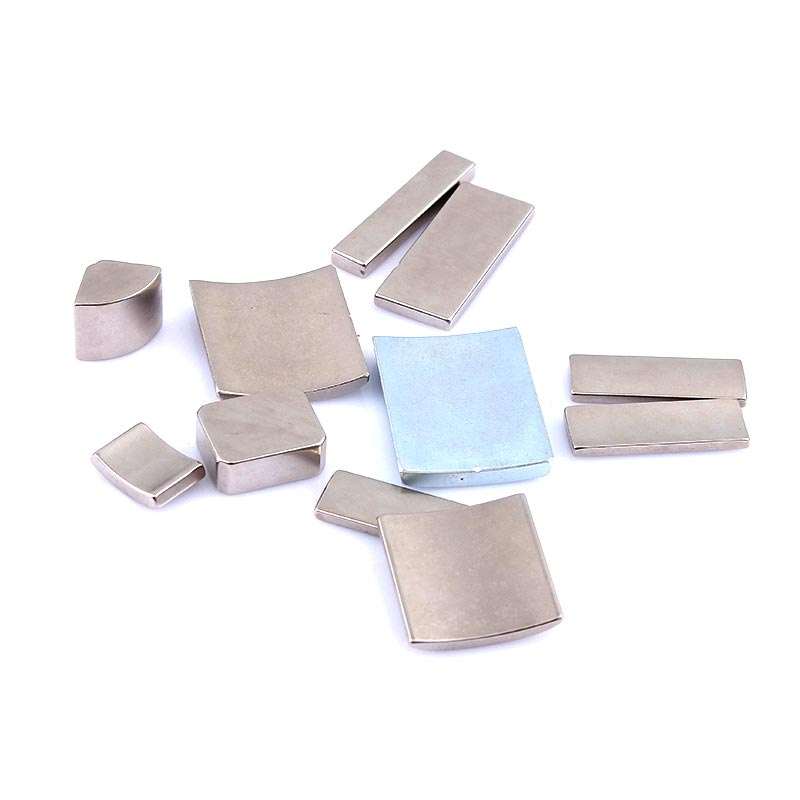

Arc Magnets, sometimes referred to as segment magnets or curved magnets, are specially manufactured magnetic components featuring a curved or arc-shaped profile. They are typically assembled into circular arrangements to create complete magnetic rings for motors and generators.

The most common materials used in Arc Magnets include:

• Neodymium (NdFeB)

• Ferrite (Ceramic)

• Samarium Cobalt (SmCo)

• Alnico

Each material offers different magnetic properties, temperature resistance, and cost advantages depending on the application requirements.

Basic Characteristics of Arc Magnets

Why Are Arc Magnets Important?

The curved geometry of Arc Magnets provides a magnetic field that closely matches the rotation path of motors and generators. This design reduces magnetic loss and improves overall system efficiency.

Key Benefits

1. Enhanced Magnetic Performance

Arc Magnets create a more uniform magnetic field around the rotor, resulting in smoother operation and increased energy conversion efficiency.

2. Improved Motor Efficiency

Electric motors equipped with Arc Magnets typically consume less energy while delivering higher torque output.

3. Compact Design

Because of their high magnetic strength, especially when made from neodymium materials, Arc Magnets allow engineers to design smaller and lighter devices without sacrificing performance.

4. Long Service Life

High-quality Arc Magnets maintain their magnetic properties for many years, ensuring reliable operation in demanding environments.

Common Applications of Arc Magnets

Arc Magnets are found in a wide range of industries and products.

Electric Motors

Electric motors are one of the largest application areas for Arc Magnets. They are commonly used in:

• Electric vehicles

• Industrial automation equipment

• Household appliances

• Power tools

• Robotics

Wind Turbine Generators

Renewable energy systems rely heavily on high-performance Arc Magnets to maximize power generation efficiency.

Magnetic Couplings

Arc Magnets enable contactless torque transmission in pumps and industrial machinery, reducing wear and maintenance requirements.

Medical Equipment

Precision medical devices often use Arc Magnets because of their stable magnetic performance and compact size.

Consumer Electronics

Applications include:

• Cooling fans

• Speakers

• Hard disk drives

• Smart home devices

Arc Magnets vs Block Magnets

Many engineers compare Arc Magnets with traditional block magnets when selecting magnetic components.

For rotating equipment, Arc Magnets generally provide superior performance and efficiency.

How to Choose the Right Arc Magnets

Selecting the appropriate Arc Magnets requires evaluating several critical factors.

Material Selection

Different materials offer unique advantages:

Neodymium Arc Magnets

• Strongest magnetic force

• Compact size

• Ideal for high-performance motors

Ferrite Arc Magnets

• Cost-effective

• Corrosion resistant

• Suitable for large-volume applications

Samarium Cobalt Arc Magnets

• Excellent temperature stability

• Superior corrosion resistance

• Suitable for aerospace and military industries

Operating Temperature

Applications exposed to high temperatures require materials with stable magnetic properties.

Surface Coating

Common coatings include:

• Nickel (Ni-Cu-Ni)

• Epoxy

• Zinc

• Gold

• Phosphating

Proper coating enhances corrosion resistance and extends service life.

Dimensional Accuracy

High-precision Arc Magnets ensure optimal magnetic field consistency and assembly performance.

Manufacturing Process of Arc Magnets

The production of Arc Magnets involves multiple precision manufacturing steps:

1. Raw material preparation

2. Powder processing

3. Pressing and shaping

4. Sintering

5. Machining

6. Surface treatment

7. Magnetization

8. Quality inspection

Strict quality control throughout the process ensures consistent magnetic properties and dimensional accuracy.

Why Partner with Xiamen Zhaobao Magnet Co., Ltd.?

When sourcing premium Arc Magnets, selecting an experienced manufacturer is essential. Xiamen Zhaobao Magnet Co., Ltd. specializes in the development and production of high-performance magnetic materials and customized magnetic solutions for global customers.

Advantages of Xiamen Zhaobao Magnet Co., Ltd.

• Extensive manufacturing experience

• Advanced production equipment

• Custom Arc Magnets solutions

• Strict quality management system

• Competitive pricing

• Fast delivery capabilities

• Professional technical support

Whether you require Arc Magnets for electric motors, renewable energy systems, industrial automation, or specialized engineering projects, Xiamen Zhaobao Magnet Co., Ltd. can provide tailored solutions that meet demanding performance requirements.

Future Trends of Arc Magnets

As industries continue to move toward electrification, automation, and sustainable energy technologies, demand for high-performance Arc Magnets is expected to grow significantly.

Key development trends include:

• Higher magnetic energy products

• Improved temperature resistance

• Enhanced corrosion protection

• Precision manufacturing technologies

• Custom-designed magnetic assemblies

• Increased use in electric vehicles and renewable energy systems

These advancements will further strengthen the role of Arc Magnets in next-generation technologies.

Conclusion

Arc Magnets have become essential components in modern motors, generators, and advanced industrial systems. Their curved geometry provides superior magnetic field distribution, improved efficiency, compact design advantages, and long-term reliability. Whether used in electric vehicles, wind turbines, automation equipment, or consumer electronics, Arc Magnets continue to drive innovation across multiple industries.

If you are looking for reliable, high-quality Arc Magnets tailored to your specific application requirements, Xiamen Zhaobao Magnet Co., Ltd. offers professional manufacturing expertise, customized solutions, and dependable global service. Contact us today to discuss your project and discover how our advanced Arc Magnets can enhance your product performance and business success.
