What Are the Design Considerations When Selecting a Gear Coupling?
2025-10-20
When choosing a Gear Coupling for industrial applications, understanding its design principles and performance requirements is essential to ensure durability, precision, and efficiency. At Raydafon Technology Group Co.,Limited, we have years of expertise in manufacturing and supplying high-quality gear couplings designed to meet demanding mechanical transmission needs. This article provides a comprehensive guide to help you understand the critical factors to consider before making your selection.
Understanding the Function of Gear Couplings

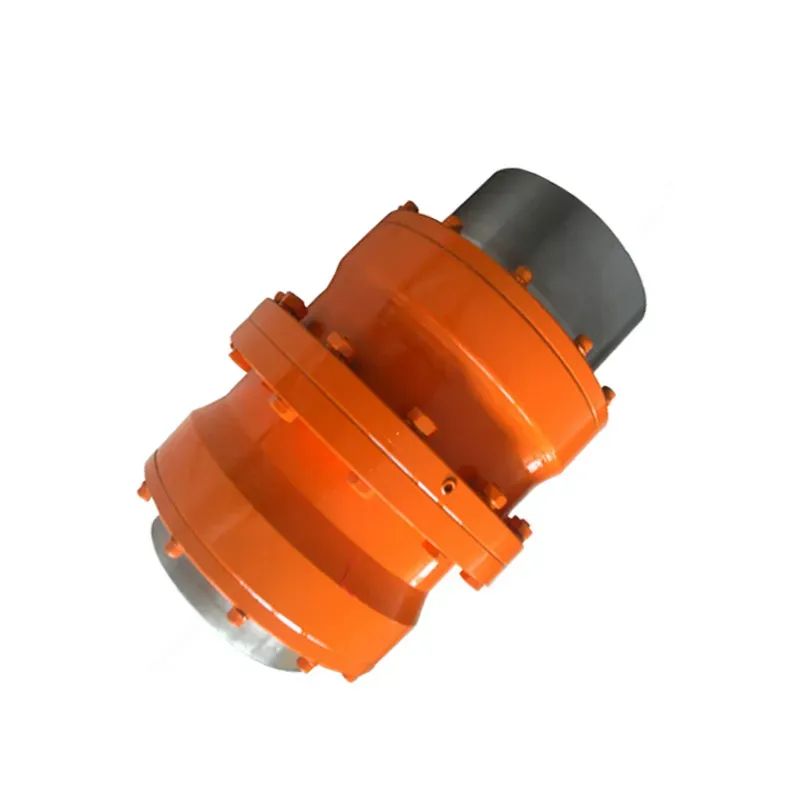

A Gear Coupling is a mechanical device used to connect two shafts, allowing torque transmission while accommodating misalignment between them. It typically consists of two hubs with external teeth and a sleeve with internal teeth. Our factory specializes in producing high-precision couplings that ensure smooth torque transmission even under high load and temperature conditions. By focusing on robust materials and precision machining, Raydafon gear couplings are engineered to deliver stability and long-term performance across multiple industrial sectors.
Key Design Considerations When Selecting a Gear Coupling
Before purchasing a Gear Coupling, it’s important to assess several technical parameters that directly affect its operation and lifespan. These include torque capacity, shaft size, misalignment tolerance, material selection, and environmental factors. Below is a detailed table summarizing these considerations along with our factory specifications.
| Design Parameter | Description | Raydafon Specification |
| Torque Capacity | The maximum torque the coupling can transmit without failure. | Up to 125,000 Nm depending on model |
| Shaft Diameter Range | Determines compatibility with different motor and driven shafts. | 25 mm – 400 mm |
| Angular Misalignment | Allows shafts to operate even if not perfectly aligned. | Up to 1.5° per coupling |
| Axial Misalignment | Handles small variations in axial displacement between shafts. | ±1.0 mm |
| Material | Influences durability, corrosion resistance, and weight. | Alloy steel / carbon steel with surface hardening |
| Surface Treatment | Prevents rust and enhances wear resistance. | Black oxide / phosphate / custom coating |
| Lubrication | Ensures long-lasting smooth operation and reduces wear. | Grease-filled, sealed design |
| Operating Temperature | Specifies the safe working temperature range for the coupling. | -40°C to +120°C |
| Industry Applications | Typical environments where gear couplings are used. | Steel mills, mining, power plants, cement, and marine |
Our factory places great emphasis on precision engineering and quality testing to ensure that every Gear Coupling meets international performance standards. From torque testing to balance analysis, we monitor each step carefully to guarantee stable operation under challenging conditions.
Material and Surface Treatment Choices
Material selection is one of the most critical design considerations when choosing a Gear Coupling. Different materials provide different mechanical strengths and environmental resistance. For example, carbon steel offers a cost-effective option for general industrial use, while alloy steel provides superior strength for heavy-duty applications. At Raydafon Technology Group Co.,Limited, our gear couplings are treated with specialized coatings to enhance wear resistance and prevent corrosion, ensuring long service life even in high-humidity or abrasive environments. We continue to improve our material technology through ongoing innovation and quality control.
Performance and Maintenance Aspects
In our production process, the focus is not only on power transmission efficiency but also on easy maintenance. Our factory’s gear couplings are designed with convenient lubrication points and high-precision gear alignment, which minimizes vibration and noise during operation. Regular inspection and lubrication can significantly extend coupling life. Raydafon gear couplings come pre-lubricated, allowing faster installation and reduced downtime in your facility.
Customization and Application Flexibility
Every industrial setup has unique torque, speed, and alignment requirements. That’s why our engineering team provides customized solutions for different shaft configurations and load conditions. Whether you need a compact coupling for limited space or a heavy-duty design for large torque applications, our factory is fully equipped to deliver tailored gear coupling systems that match your specifications. Raydafon Technology Group Co.,Limited also supports OEM and ODM services, helping customers build a more efficient and reliable mechanical transmission system.
Common FAQs about Gear Coupling Selection
1. What are the design considerations when selecting a gear coupling?
The main considerations include torque capacity, shaft size, material type, misalignment tolerance, and environmental operating conditions. Selecting the correct combination ensures mechanical efficiency, safety, and extended service life.
2. How can I determine the right gear coupling size for my equipment?
To choose the correct size, calculate the maximum transmitted torque, check the shaft diameters, and consider the degree of angular or axial misalignment. Our factory’s engineers can provide detailed selection guidance based on your machine specifications.
3. What are the benefits of using Raydafon gear couplings?
Raydafon gear couplings are known for their high torque transmission, precise alignment, and durability. With superior materials and advanced manufacturing processes, our products minimize maintenance costs and extend equipment life in demanding industrial environments.
Conclusion
Choosing the right Gear Coupling requires balancing multiple factors, including torque requirements, shaft compatibility, and environmental conditions. With decades of engineering experience, Raydafon Technology Group Co.,Limited delivers reliable coupling solutions designed for high performance and durability. Our gear couplings are trusted by industries worldwide for their stability, accuracy, and longevity. If you are looking for a dependable partner in power transmission technology, Raydafon is your ideal choice.
