What Are the Safety Features of a Vacuum Circuit Breaker?
2025-09-15
A Vacuum Circuit Breaker (VCB) is a critical electrical protection device that interrupts current flow during faults, ensuring system safety and equipment protection. Its superior safety features make it indispensable in modern power distribution networks, especially in medium-voltage applications. At its core, a VCB utilizes a vacuum as the arc-quenching medium within a sealed interrupter chamber, which provides exceptional dielectric strength and rapidly extinguishes arcs when contacts open.
Primary Safety Features of Vacuum Circuit Breakers
The safety of a Vacuum Circuit Breaker stems from its innovative design and operational principles:
1. Sealed Vacuum Interrupter: The heart of the VCB is its sealed vacuum interrupter. This chamber is devoid of air and other gases, preventing oxidation and corrosion of internal contacts. More importantly, it ensures that when contacts separate during a fault, the arc that forms is extinguished within milliseconds due to the rapid diffusion of electrons in the vacuum. This sealed environment is maintenance-free and isolates the arc from the external atmosphere, significantly reducing fire hazards.
2. Rapid Arc Quenching: The vacuum medium has exceptional dielectric recovery strength, allowing it to extinguish arcs at the first current zero crossing. This swift interruption minimizes the duration of fault currents, protecting downstream equipment like transformers and motors from extensive thermal and magnetic stress damage.
3. Minimal Maintenance and High Reliability: Unlike other breakers that may require frequent maintenance of gas levels or oil, the sealed vacuum interrupter requires no such upkeep. This design eliminates risks associated with gas leaks (e.g., SF6, a potent greenhouse gas) or oil degradation, ensuring consistent protection and reducing human exposure to hazards during maintenance.
4. Robust Insulation and Construction: Our VCBs feature high-quality insulation materials and solid-sealing technology. This design provides excellent resistance to harsh environmental conditions, including dust, moisture, and chemical contaminants, preventing tracking and insulation failures that could compromise safety.

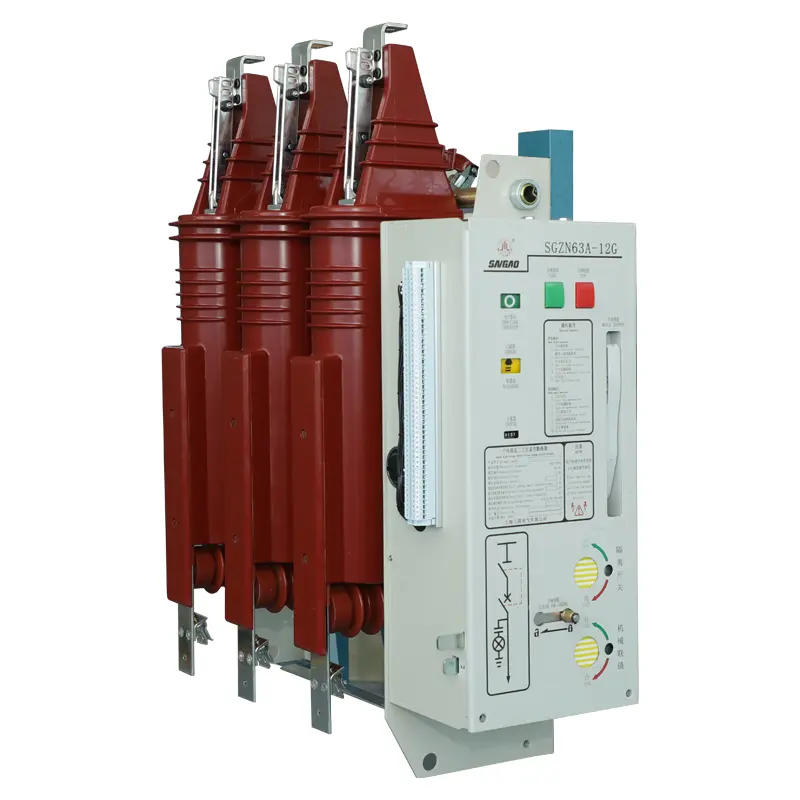

Technical Parameters of Our SanGao Vacuum Circuit Breakers
Our factory designs SanGao VCBs to meet rigorous international standards, ensuring both performance and safety. Below are key specifications for our standard model range.
| Parameter | Value | Notes |
| Rated Voltage | 12kV - 40.5kV | Suitable for most medium-voltage applications |
| Rated Current | 630A - 4000A | Custom ratings available |
| Short-Circuit Breaking Current | 25kA - 50kA | High fault current interruption capacity |
| Mechanical Life | 10,000 - 30,000 operations | Long-lasting durability with minimal wear |
| Dielectric Strength | Withstands lightning impulse | Excellent insulation properties |
| Standards Compliance | GB, IEC, ANSI | Certified for global safety and performance |
Frequently Asked Questions (FAQs)
Q1: What makes a vacuum circuit breaker safer than other types?
A Vacuum Circuit Breaker is often considered safer due to its sealed vacuum interrupter, which eliminates the need for oil or SF6 gas. This prevents risks associated with oil leaks, fires, or SF6 gas emissions (a potent greenhouse gas). Additionally, the vacuum provides extremely fast arc extinction, containing and quenching the electrical arc internally, which enhances protection for both personnel and equipment.
Q2: How does the vacuum interrupter enhance safety during a fault?
When a fault occurs and the contacts inside the vacuum interrupter separate, an electric arc is formed. The vacuum environment has minimal gas molecules, causing the arc to extinguish rapidly—typically within the first current zero crossing. This rapid quenching prevents the arc from sustaining and causing damage, contains the arc energy entirely within the sealed chamber, and isolates the faulted circuit quickly to maintain overall system stability.
Why Choose Us?
At SanGao, we are committed to engineering Vacuum Circuit Breaker solutions that prioritize uncompromising safety, reliability, and environmental sustainability. Our products undergo rigorous testing to ensure they meet the highest international standards. For more information on how our safety-focused VCBs can protect your electrical infrastructure, contact Zhejiang SanGao Electric Co., Ltd. today. Let us help you build a safer, more reliable power system.
