What is a Mechanical Lug?
2025-10-13
A Mechanical Lug is a vital component used in electrical and power distribution systems to securely connect cables and conductors. It ensures efficient current transfer and stable connections, even under demanding conditions. In our factory, we manufacture high-quality mechanical lugs designed for reliable electrical performance and long-term durability. Understanding its design, materials, and functions is essential for selecting the right product for your specific application.
Understanding the Function of Mechanical Lugs
Mechanical Lugs are used to terminate electrical conductors to equipment, cables, or bus bars without the need for soldering or welding. They are typically installed using set screws that mechanically secure the conductor. This type of connection provides excellent mechanical strength and electrical conductivity, allowing easy installation and maintenance. At Wenzhou Kangshuai Electronic Co., Ltd., our mechanical lugs are engineered to meet international standards and are suitable for various industrial, commercial, and residential applications.
Types of Mechanical Lugs
There are different types of Mechanical Lugs depending on the installation and conductor type. The most common types include:

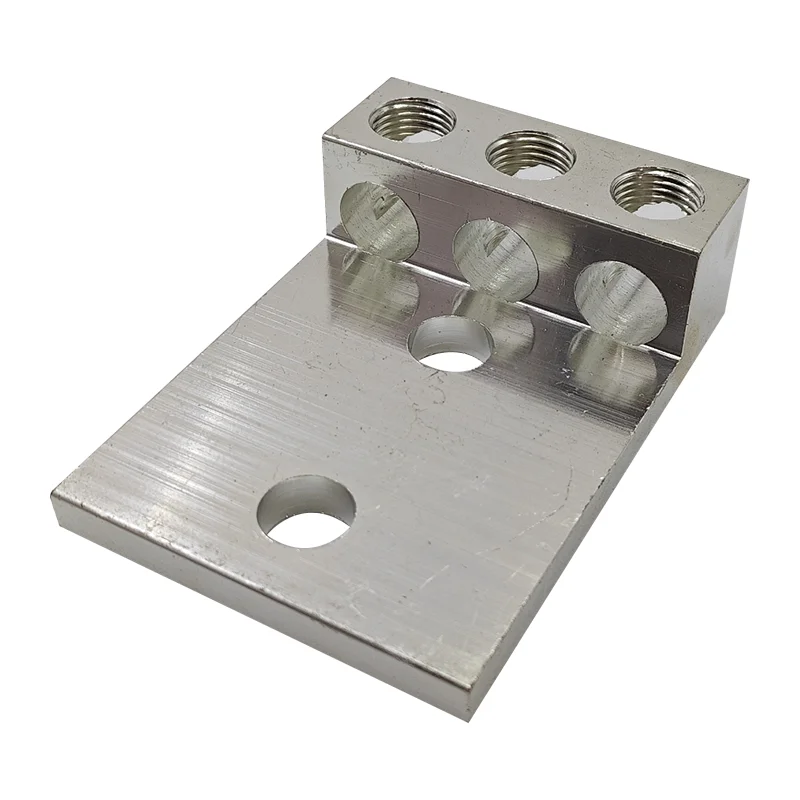

2. Two Hole Lugs – Provide enhanced stability and secure connections under vibration or high load.
3. Reducing Lugs – Allow the connection of smaller conductors to larger terminals.
4. Dual Rated Lugs – Suitable for both copper and aluminum conductors, ensuring flexibility in use.
Our product range includes all these variations, enabling our customers to find exactly what fits their needs. The design of each lug ensures maximum electrical contact and minimal resistance loss.
Product Specifications
Below is a detailed specification table of our mechanical lug products manufactured by Wenzhou Kangshuai Electronic Co., Ltd. Every product is made under strict quality control and meets UL and IEC safety standards.
| Product Name | Mechanical Lug |
| Material | High-strength aluminum alloy / copper |
| Surface Treatment | Tin-plated for corrosion resistance |
| Conductor Range | 2.5mm² – 500mm² |
| Rated Voltage | Up to 1000V |
| Rated Current | Up to 600A |
| Operating Temperature | -40°C to +125°C |
| Mounting Type | Single hole / double hole / reducing |
| Application | Electrical panels, switchgear, transformers, control cabinets |
| Standards | UL, CE, RoHS compliant |
Each lug from our factory is carefully tested to ensure consistent performance under high load conditions. Our advanced production lines enable precise machining and plating, ensuring tight tolerances and excellent surface finish.
Applications of Mechanical Lugs
Mechanical Lugs play a critical role in ensuring stable electrical connections. They are widely used in power distribution systems, renewable energy installations, and industrial control panels. Our factory produces lugs that are ideal for heavy-duty applications, including substations, switchboards, and backup power systems. The use of premium-grade materials ensures durability and reliable performance in both indoor and outdoor environments.
Our mechanical lugs are designed to handle harsh environments and maintain electrical integrity under temperature fluctuations. This makes them suitable for high-performance industrial projects and long-term installations where safety and reliability are top priorities.
Advantages of Choosing Our Mechanical Lugs
Choosing Wenzhou Kangshuai Electronic Co., Ltd. as your supplier guarantees several advantages. Our products are engineered for easy installation, ensuring time efficiency for field technicians. The mechanical design allows for reusability, reducing long-term maintenance costs. Additionally, each lug is tin-plated to resist oxidation and corrosion, maintaining high conductivity throughout its lifespan.
Our strict quality inspection process ensures every batch meets performance expectations. With our in-house R&D team and advanced testing facilities, our factory continuously improves mechanical and electrical characteristics to meet the demands of evolving industries.
How to Select the Right Mechanical Lug
When selecting a Mechanical Lug, it’s important to consider the conductor material, size, and installation environment. The correct selection ensures secure connections and avoids overheating or mechanical stress. Our engineering team provides technical support to help customers identify the ideal lug configuration based on their electrical system specifications. Factors such as conductor strand class, torque requirement, and mounting conditions should always be evaluated carefully.
FAQs About “What is a Mechanical Lug?”
Q1: What is the main purpose of a Mechanical Lug?
A Mechanical Lug provides a secure mechanical and electrical connection between conductors and electrical equipment. It allows easy installation without crimping or soldering, ensuring consistent performance and strong conductivity.
Q2: Can Mechanical Lugs be reused after installation?
Yes, most mechanical lugs can be reused if they remain in good condition. However, it’s essential to check the screw threads and surfaces before reuse to ensure there’s no corrosion or deformation that may affect conductivity or safety.
Q3: What materials are commonly used to manufacture Mechanical Lugs?
Mechanical Lugs are typically made from high-conductivity aluminum or copper. Aluminum lugs are lightweight and cost-effective, while copper lugs offer superior conductivity and are preferred for heavy-duty applications. Our products use premium materials for optimal balance between strength, durability, and cost.
Conclusion
In summary, a mechanical lug is an indispensable electrical connector designed to ensure strong, safe, and long-lasting connections. Our commitment to quality and precision manufacturing has made Wenzhou Kangshuai Electronic Co., Ltd. a trusted name in the industry. With our extensive product range, modern factory facilities, and professional team, we continue to deliver reliable solutions that meet global standards and satisfy diverse customer needs.
