What is a Tube Sheet? Design, Materials & Applications
2025-08-06
Introduction to Tube Sheets

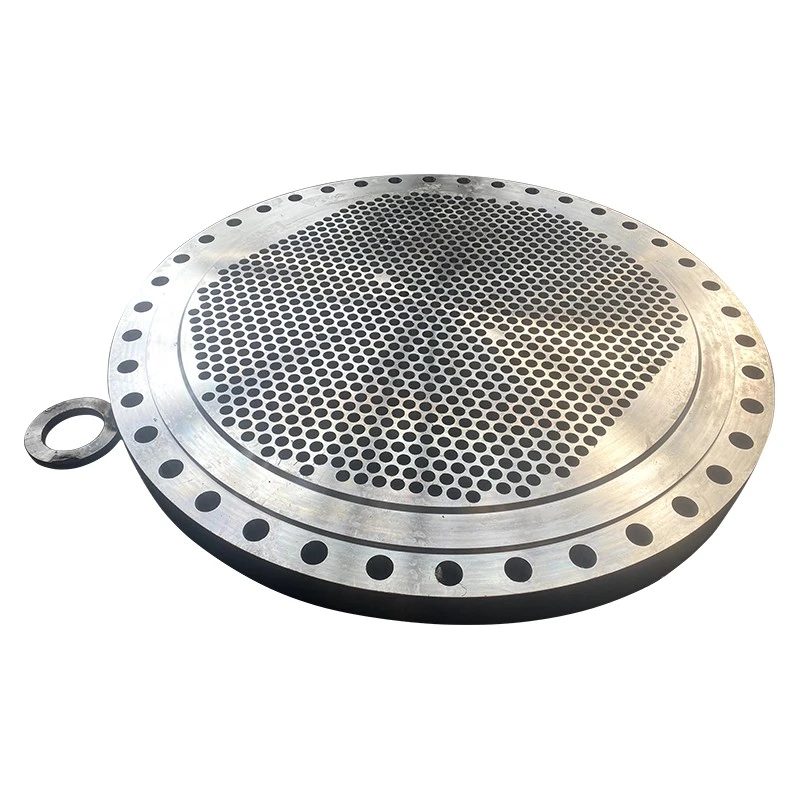

A tube sheet is a critical component in shell-and-tube heat exchangers, boilers, and condensers that securely holds tubes in place while maintaining pressure boundaries. At SN Valve, we manufacture precision-engineered tube sheets using advanced materials and machining techniques for optimal thermal performance and durability in demanding industrial applications.
This comprehensive guide covers:
✔ Fundamentals of tube sheet design
✔ Material selection criteria
✔ SN Valve's manufacturing specifications
✔ Industry applications
✔ FAQ on common technical questions
Tube Sheet Design Fundamentals
Key Design Considerations
| Parameter | Importance | SN Valve Standard |
|---|---|---|
| Hole Pattern | Affects flow distribution | Triangular/rotated square |
| Ligament Efficiency | Structural integrity | Min. 40% material between holes |
| Thickness | Pressure containment | 20-150mm (customizable) |
| Tolerance | Tube fit precision | ±0.05mm hole diameter |
Standard Configurations
-
Fixed tube sheets (integral with shell)
-
Floating tube sheets (allow thermal expansion)
-
U-tube sheets (for U-bend exchangers)
Tube Sheet Materials Comparison
Material Selection Guide
| Material | Max Temp | Corrosion Resistance | Pressure Rating | Best For |
|---|---|---|---|---|
| Carbon Steel | 400°C | Moderate | 3000psi | Oil & gas |
| Stainless 316 | 800°C | Excellent | 2500psi | Chemical |
| Titanium | 600°C | Superior | 2000psi | Seawater |
| Nickel Alloy | 1000°C | Extreme | 3500psi | Refining |
SN Valve Product Specifications
| Model | Material | Thickness | Hole Dia. | Tubesheet OD | Surface Finish |
|---|---|---|---|---|---|
| SN-TS20 | CS ASTM A516 | 25-50mm | 12-50mm | ≤3000mm | Ra 3.2μm |
| SN-TS30 | SS316 | 30-80mm | 10-38mm | ≤2500mm | Ra 1.6μm |
| SN-TS50 | Duplex 2205 | 40-120mm | 15-60mm | ≤3500mm | Ra 0.8μm |
Manufacturing Processes
Precision Machining Capabilities
✔ Deep hole drilling (L/D ratio up to 20:1)
✔ CNC boring (±0.02mm positional accuracy)
✔ Explosion-bonded cladding (for bimetallic sheets)
✔ Stress relieving (post-weld heat treatment)
Quality Control
-
100% UT testing for material integrity
-
Laser measurement of hole patterns
-
Hydrostatic testing at 1.5x design pressure
Industry Applications
Power Generation
-
Condenser tube sheets
-
Feedwater heaters
Oil & Gas
-
Heat exchanger bundles
-
Fired heater components
Chemical Processing
-
Reactor tube sheets
-
Waste heat recovery units
FAQ: Tube Sheet Fundamentals
Q: How to select the right tube sheet material for corrosive service?
A: Consider these factors:
-
Fluid composition (pH, chlorides, sulfides)
-
Temperature/pressure extremes
-
Galvanic compatibility with tubes
-
Cost-effectiveness over equipment lifespan
SN Valve recommends:
-
Seawater: Titanium Grade 2
-
Acids: Hastelloy C276
-
Steam: SA-266 Carbon Steel
Why Choose SN Valve Tube Sheets?
✔ 40+ years of specialized manufacturing
✔ ASME U Stamp certified production
✔ Custom designs for retrofit applications
✔ On-site measurement services available
Get Your Precision Tube Sheet Solution
For technical drawings or material recommendations:
📞 Phone: +86-577-85886898
📱 Mobile: +86-13306772198
📧 Email: [email protected]
As SN Valve's lead engineer with 25 years in pressure vessel components, I guarantee our tube sheets deliver leak-free performance even in extreme conditions. Contact us today for your project requirements!
