What Is the Difference Between a Single and Double Universal Coupling?

In industrial power-transmission systems, the universal coupling plays a critical role in connecting shafts that operate under angular misalignment, torque fluctuations, or demanding motion requirements. Within this category, the single type and the double type serve different engineering purposes, and understanding their distinctions helps buyers make efficient, safe, and cost-effective decisions. Raydafon Technology Group Co., Limited has focused on high-precision coupling solutions for years, and our factory provides durable configurations designed for long-term mechanical stability. In the following sections, this article explains the structural and functional differences, application priorities, and performance parameters of each type while integrating the key decision factors engineers rely on.

Overview of Single Universal Coupling

A single Universal Coupling (often called a single U-joint) consists of one cross-shaped element with needle bearings positioned within two yokes. It allows angular displacement between two shafts while transmitting torque smoothly. Our factory frequently uses this design for equipment requiring moderate flexibility and compact dimensions. Raydafon Technology Group Co., Limited supplies this configuration for conveyors, pumps, mixers, compressors, and general mechanical linkages where shaft offset is present but minimal. Because of its straightforward structure, it offers lower rotational inertia, simple maintenance procedures, and excellent durability under moderate working loads. Our engineering team often recommends the single type when angles remain within a controlled range and when space limitations are strict.

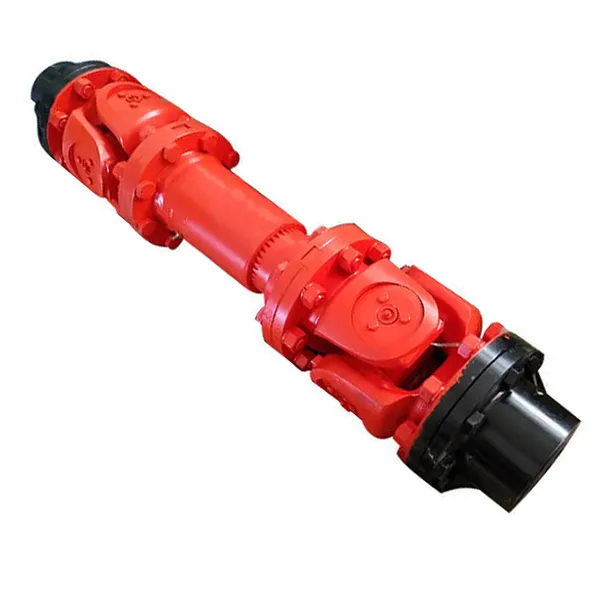

Overview of Double Universal Coupling

A Double Universal Coupling integrates two single joints connected by an intermediate shaft. This structure enables greater angular compensation, smoother rotational output, and improved performance under more demanding operating conditions. Raydafon Technology Group Co., Limited produces double-joint versions suitable for automation systems, heavy-duty rolling machinery, robotics, testing equipment, and material-handling lines that require high misalignment tolerance. The intermediate shaft absorbs sudden angular changes and reduces nonuniform rotational output. Our R&D team applies precision machining to maintain tight tolerances, ensuring stable torque transmission even under complex movement patterns. Double types are chosen when machinery must maintain consistent speed ratios despite large angular shifts or when continuous dynamic motion is expected.

Key Differences Between Single and Double Universal Coupling

The differences between these two configurations directly relate to structural complexity, allowable misalignment, torque transmission quality, and application suitability. To support technical selection, our factory provides clearly defined parameters based on operational requirements. Raydafon Technology Group Co., Limited emphasizes that buyers should consider angular capacity, working speed, load frequency, and installation space before choosing the appropriate Universal Coupling.

How to Select the Right Universal Coupling for Your Application

Selection depends on operating conditions such as angle variation, required torque, rotational speed, and expected service life. Our engineering team at Raydafon Technology Group Co., Limited guides users through torque calculations, speed limits, and shaft alignment assessments to ensure stable performance. When required angular displacement remains minimal, the single type provides sufficient efficiency. When machines operate under continuous oscillation or large misalignment, the double type becomes the correct choice. Other considerations include lubrication requirements, environmental conditions, load cycles, and fatigue strength. Our factory continuously improves material quality and manufacturing precision to extend lifecycle performance in both configurations.

Product Parameters Provided by Our Factory

The following reference specifications represent the common technical range delivered by Raydafon Technology Group Co., Limited for the Universal Coupling series. These parameters help users identify the correct configuration for their equipment while maintaining operational safety standards. Our team can also provide customized dimensions, enhanced-strength materials, and precision balancing for high-speed applications.

Application Advantages Highlighted by Our Factory

Raydafon Technology Group Co., Limited focuses on precision-engineered Universal Coupling solutions with enhanced stability, high wear resistance, and long-term reliability. Our machining system ensures precise bearing fits, balanced rotation, and controlled tolerance levels. The single type allows cost-effective performance for general mechanical systems, while the double type supports complex multi-angle operations without sacrificing torque transmission quality. With our manufacturing experience, buyers receive consistent output quality, customizable features, and dependable after-sales support for global industrial clients.

FAQ — What Is the Difference Between a Single and Double Universal Coupling?

Q1: Why does a double Universal Coupling provide smoother torque transmission?

A double version uses two joint assemblies connected by an intermediate shaft, allowing rotational irregularities from the first joint to be balanced by the second. This results in more uniform speed output and better compensation under large angular deviations.

Q2: When should I select a single Universal Coupling instead of a double one?

Select the single type when your equipment requires compact structure, moderate angular offset, lower cost, and simplified maintenance. It is ideal for general machinery where alignment does not vary dramatically.

Q3: Does the double Universal Coupling increase maintenance requirements?

Yes. Because it includes additional bearings and moving components, maintenance is slightly higher. However, when properly lubricated and used within rated parameters, the lifespan remains highly reliable and stable.

Conclusion

Single and double Universal Coupling designs meet different levels of mechanical demand. By understanding structural differences, angular capabilities, and operational expectations, buyers can select the most effective option for their machinery. Raydafon Technology Group Co., Limited and our factory continue to develop durable, accurate, and high-performance solutions tailored for global industrial applications. With the right configuration, equipment benefits from stable torque delivery, minimized vibration, and improved service life, ensuring long-term operational efficiency.
