What Length Carriage Bolts Work Best for 4x4 Posts
2025-11-05
When customers ask me about the right hardware for securing 4x4 posts, one of the most common questions I get is about Carriage Bolts—specifically, the correct length to use. Having worked in hardware and fastener manufacturing for years, I’ve seen countless projects succeed or fail simply because of bolt size choices. At Gangtong Zheli, we’ve helped thousands of builders and DIYers find the perfect fit for their structural projects, and today I’d like to share some insights that can make your work stronger and safer.
Why Does the Length of a Carriage Bolt Matter for 4x4 Posts
Choosing the right length isn’t just about looks—it directly affects how securely the post is fastened. A Carriage Bolt that’s too short won’t bite enough wood for a strong hold, while one that’s too long can create unnecessary gaps or protrude dangerously.
To fasten a standard 4x4 post (which actually measures 3.5" × 3.5"), you’ll generally want a bolt long enough to pass through the post, the material it’s connecting to (like a beam or bracket), plus the washer and nut thickness.
What Are the Recommended Carriage Bolt Lengths for 4x4 Posts
The following table provides a general reference based on common applications we see from our customers:
| Application Type | Post Thickness | Attached Material | Recommended Bolt Length | Bolt Diameter |
|---|---|---|---|---|
| 4x4 to 2x4 connection | 3.5" | 1.5" wood board | 6"–6.5" | 3/8" or 1/2" |
| 4x4 to metal bracket | 3.5" | 0.25" bracket | 5"–5.5" | 3/8" |
| 4x4 to 4x4 post (double post) | 3.5" | 3.5" | 8"–9" | 1/2" |
| 4x4 to concrete or base plate | 3.5" | varies | 5"–6" | 1/2" |
These measurements allow enough length for washers and nuts while ensuring a flush, professional finish.
How Can I Choose the Right Material and Coating for Outdoor Use
When using Carriage Bolts outdoors, corrosion resistance becomes critical. From my experience at Gangtong Zheli, here are the most reliable material options:
-
Hot-Dip Galvanized Steel – Best for exterior wood structures such as decks and fences.
-
Stainless Steel (304/316) – Ideal for coastal or humid environments with long-term rust protection.
-
Zinc-Plated Steel – Suitable for indoor projects or light outdoor use.
Tip: For 4x4 posts exposed to rain or moisture, always choose hot-dip galvanized or stainless-steel bolts to extend the life of your structure.
What Are the Key Product Specifications Offered by Gangtong Zheli
At Gangtong Zheli, we manufacture and supply a full range of Carriage Bolts that meet international standards (DIN, ANSI, ISO). Here’s a quick look at our specifications:
| Specification | Details |
|---|---|
| Diameter Range | M6 – M20 (1/4" – 3/4") |
| Length Range | 25mm – 300mm (1" – 12") |
| Material Options | Carbon Steel, Stainless Steel, Alloy Steel |
| Surface Finish | Zinc-Plated, Black Oxide, Hot-Dip Galvanized |
| Strength Grade | 4.8, 8.8, 10.9 |
| Thread Type | Full or Partial Thread |

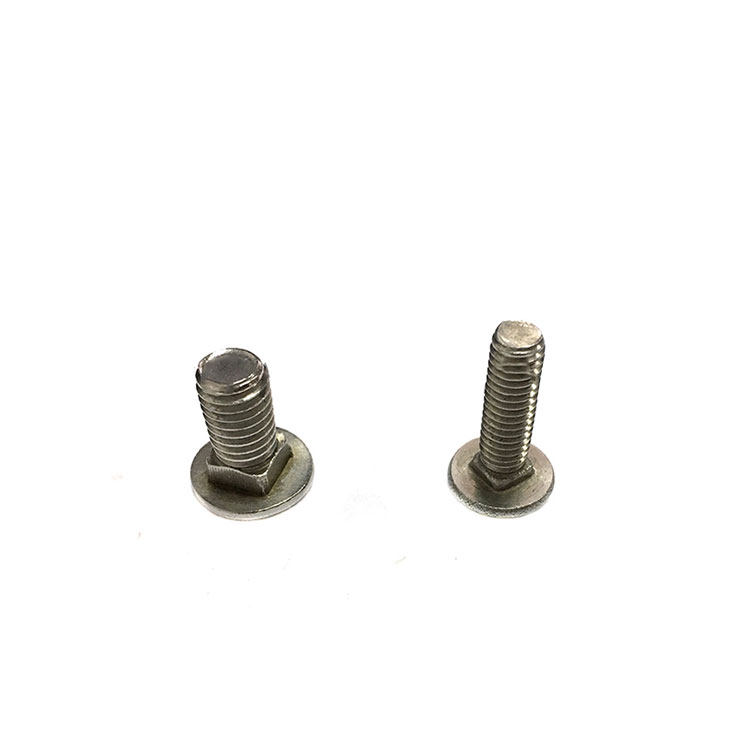

| Head Type | Round Head with Square Neck |
Every batch of bolts is tested for tensile strength, hardness, and corrosion resistance before leaving our factory.
How Do I Ensure Proper Installation of Carriage Bolts in 4x4 Posts
Here’s the step-by-step process I recommend to my customers:
-
Drill a clean pilot hole slightly larger than the bolt diameter.
-
Insert the bolt through the hole—make sure the square neck locks tightly into the wood.
-
Add a washer and nut on the opposite end to distribute pressure evenly.
-
Tighten gradually using a wrench while ensuring the bolt head stays flush.
-
Check alignment—the post should stay perfectly vertical and firm.
Following this method prevents wood splitting and ensures long-term durability.
Why Do Professionals Prefer Gangtong Zheli Carriage Bolts
Many of our long-term clients choose Gangtong Zheli because we combine industrial precision with customer-focused flexibility. Whether you’re ordering standard-size Carriage Bolts or need custom lengths for 4x4 post applications, we provide fast delivery, OEM service, and strict quality control.
Our products are widely used in deck construction, fencing, playground equipment, and heavy wood frameworks, trusted by builders worldwide for their strength and consistency.
Ready to Find the Perfect Carriage Bolts for Your 4x4 Project
If you’re planning your next build and want reliable, high-quality Carriage Bolts, we’d love to help. Reach out to our team at Gangtong Zheli today — we can recommend the exact size, material, and coating for your application.
👉 Contact us now to get a quick quote or send your inquiry — our experts are ready to support your project from start to finish.
