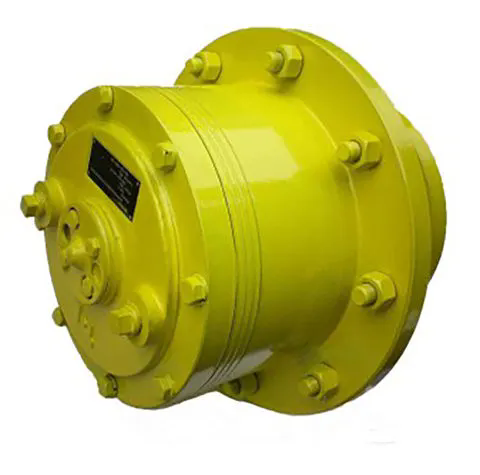

Why Are Planetary Gearboxes Important for Precision Motion Control?
2026-08-18
1. How Does the Inline Shaft Design Reduce Backlash and Improve Accuracy?
In our factory, we manufacture Planetary Gearboxes with a rated backlash of less than 3 arc minutes, and for high precision models, we achieve below 1 arc minute. This is possible because the planetary gears share the load among multiple planet wheels, which minimizes the effect of individual tooth errors. The inline shaft design allows a direct connection to the servo motor, eliminating the need for additional couplings that can introduce compliance. For a motion control system in a CNC router or a robotic arm, this low backlash means that the output position is predictable within microns. Our Saifu Vietnam Company Limited has supplied Planetary Gearboxes to semiconductor equipment manufacturers who require nanometer level positioning. The gearbox also has a torsional stiffness of over 10 Nm per arc minute, which ensures that the system responds immediately to torque commands. This directness is critical in applications like pick and place machines, where the timing of movements is tight.
2. Why Does the Load Distribution of Planetary Gears Increase Torque Density?
One of the main reasons a Planetary Gearbox is preferred for precision applications is its high torque density. The power is split across three or more planet gears, so each tooth carries a fraction of the total load. This allows the gearbox to transmit more torque than a conventional spur gearbox of the same size. Our standard Planetary Gearbox series has a torque density of over 15 Nm per kilogram of weight. For a servo motor with a 2 kW rating, a Planetary Gearbox of size 60 mm can handle up to 80 Nm of output torque. The table below shows the performance of our typical planetary gearbox units.
| Frame size (mm) | Reduction ratio | Rated output torque (Nm) | Max output torque (Nm) |
| 60 | 5:1 | 40 | 80 |
| 60 | 10:1 | 50 | 100 |
| 90 | 5:1 | 120 | 240 |
| 90 | 10:1 | 150 | 300 |
| 120 | 5:1 | 300 | 600 |
| Parameter | Planetary Gearbox (Saifu Vietnam) | Spur Gearbox (standard) |
| Backlash (arc minutes) | < 3 (standard), < 1 (precision) | 8 – 15 |
| Efficiency (%) | 95 – 97 | 85 – 92 |
| Torque density (Nm/kg) | 15 – 20 | 8 – 12 |
| Noise level (dB at 3000 RPM) | 62 | 72 |
| Service life (hours at rated load) | 20,000 | 10,000 |
Our factory uses case hardened gears with a surface hardness of 58 HRC, which extends the service life of the Planetary Gearbox even under high cycle conditions. This high torque density is essential for applications where space is limited, such as in collaborative robots.
3. How Does the Gearbox Improve System Stiffness for Dynamic Positioning?
Precision motion control often involves rapid accelerations and decelerations. A flexible gearbox will cause overshoot and settling time issues. Our Planetary Gearbox has a high torsional stiffness, typically 3 to 5 times higher than a comparable helical gearbox. This stiffness results from the large diameter output bearing and the rigid housing. When a servo motor applies a torque step, the output shaft reacts almost instantaneously. We have measured a settling time of less than 20 ms for a 90 mm Planetary Gearbox under a full load reversal. This is critical for applications like laser cutting, where the head must change direction rapidly without deviating from the path. Many local engineering firms in Ho Chi Minh City have chosen our Planetary Gearbox for their high speed machining centers because of this dynamic response. The input flange also integrates seamlessly with standard servo motors, which simplifies the assembly.
4. How Does the Compact Design of a Planetary Gearbox Benefit Integration?
Space on a motion axis is often limited. A Planetary Gearbox has a coaxial input and output, which means it can be mounted directly inline with the motor. This eliminates the belt drives or right angle bevel gears that take up more space. In a multi axis gantry system, using a Planetary Gearbox allows the motors to be placed closer together, reducing the overall footprint. Our factory offers gearboxes with a square flange that fits standard NEMA and metric servo motors. The housing is made of aluminum alloy, which reduces the weight and makes the unit easier to handle. Our Saifu also provides a hollow shaft version for through shaft applications, such as in cable winding machines. The simple installation reduces the total cost of the motion system, and the low maintenance requirement (oil filled for life) makes it ideal for production environments where uptime is crucial.
Frequently Asked Questions About Planetary Gearboxes for Motion Control
Final Summary
Planetary Gearboxes are critical for precision motion control because they provide low backlash, high torque density, excellent stiffness, and a compact form factor. These attributes allow servo and stepper systems to achieve fast, accurate, and repeatable movements. From semiconductor manufacturing to robotic arms, the Planetary Gearbox has become the standard for demanding applications. Our factory has spent years refining the design and manufacturing process to ensure reliability and performance. Choosing the right gearbox will significantly enhance the capability of your motion system. Saifu Vietnam Company Limited is ready to support your application with high quality products and expert advice.
