Why Must Flange Insulation Kits Include Both Gaskets and Sleeves?

In industrial piping and pipeline systems, managing electrical current flow is as vital as containing the medium itself. Stray currents, if left unchecked, can lead to catastrophic corrosion known as electrolytic corrosion, severely compromising system integrity and safety. This is where a specialized component becomes non-negotiable: the Flange Insulating Gasket Set. But a truly effective solution is not about a single part it is a complete system. This brings us to the core question: Why must flange insulation kits include both gaskets and sleeves? The answer lies in creating a continuous, unbroken barrier against electrical conductivity. Isolating only the faces with gaskets leaves a path for current through the bolting, rendering the insulation ineffective. Sleeves and washers are essential to break this circuit, ensuring complete isolation. At our factory, Ningbo Kaxite Sealing Materials Co., Ltd., we engineer our Flange Insulating Gasket Sets with this holistic principle at their foundation.

The Science Behind Complete Insulation: Gaskets AND Sleeves

A flange connection is a complex assembly where metal-to-metal contact occurs at multiple points: the flange faces, the bolts, and the nuts. An insulating gasket alone only addresses the contact between the flange faces. Electrical current, seeking all available paths, will simply travel through the bolts, bypassing the gasket entirely. This makes the insulation effort futile. Our approach ensures every potential conductive path is systematically blocked.

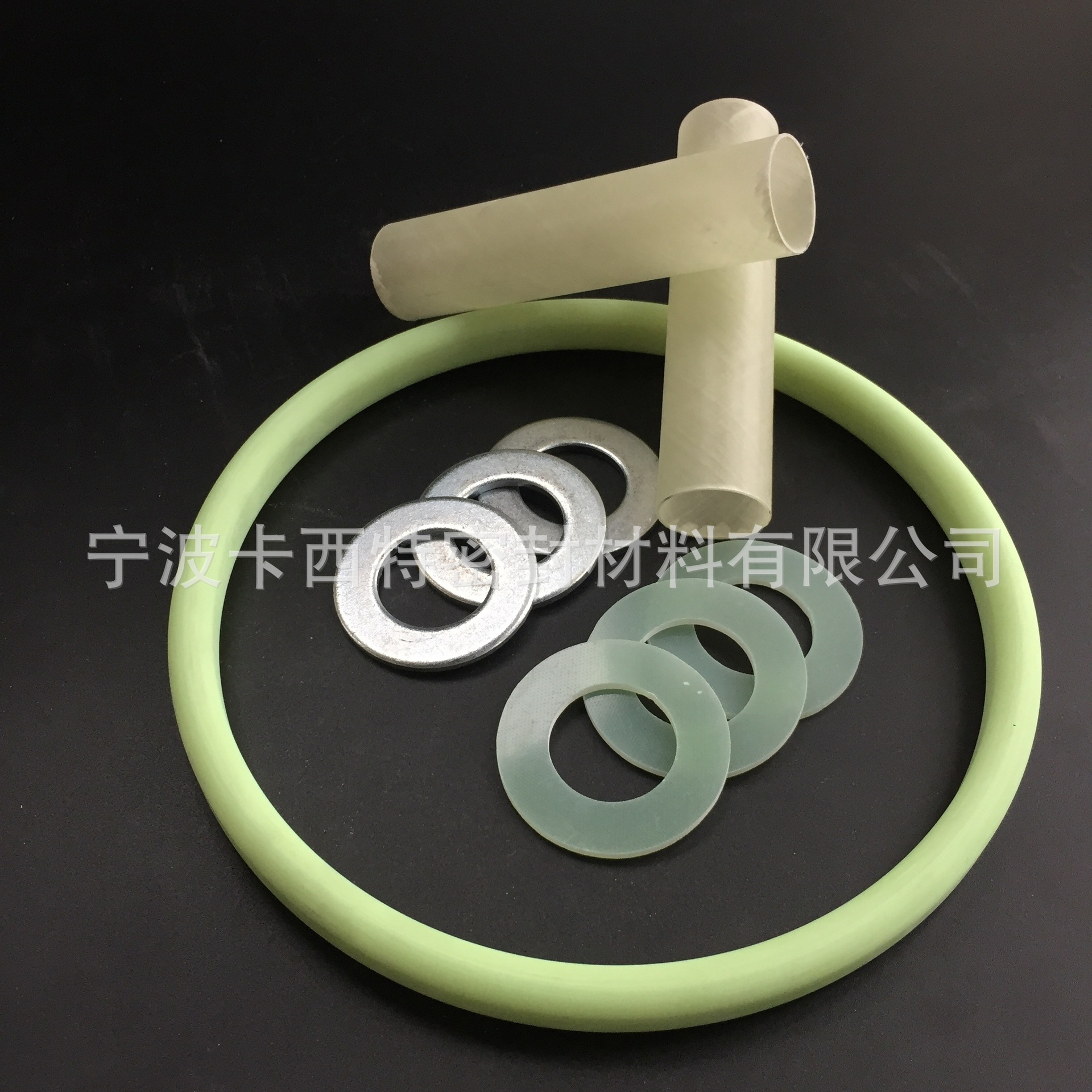

The insulating gasket creates the primary barrier between the two flange faces. Meanwhile, insulating sleeves are installed around each bolt, preventing it from touching the metal of the bolt holes. Combined with insulating washers under the bolt head and nut, this system ensures the entire bolted joint is electrically isolated. The metal bolt is suspended within an insulating sheath, never contacting the flanges. This complete isolation is the only reliable method to prevent galvanic corrosion and protect sensitive equipment like pumps and valves. This integrated design is what defines a proper Flange Insulating Gasket Set from Ningbo Kaxite Sealing Materials Co., Ltd.

Detailed Product Specifications of Our Flange Insulating Gasket Sets

Our commitment at Ningbo Kaxite Sealing Materials Co., Ltd. is to provide not just components, but fully engineered solutions. Each Flange Insulating Gasket Set is meticulously designed to meet specific pressure, temperature, and chemical resistance requirements. We utilize high-performance materials to ensure longevity and reliability in the most demanding environments. The following table outlines the standard construction and specifications of our typical kit, which can be customized to your project needs.

Our factory controls the manufacturing of every component, ensuring perfect compatibility and performance. The materials chosen for our Flange Insulating Gasket Sets offer exceptional stability across a wide temperature range, from cryogenic applications to high-heat services.

Key Benefits of Using a Complete Insulation Kit

Investing in a comprehensive Flange Insulating Gasket Set delivers multifaceted returns. Firstly, it provides definitive protection against galvanic corrosion, dramatically extending the service life of pipelines and connected assets. This directly translates to reduced maintenance costs, emergency shutdowns, and replacement expenses. Secondly, it enhances safety by mitigating fire risks associated with sparking at flange joints in hazardous areas. Thirdly, it ensures operational continuity and system reliability. By specifying our complete kits, engineers guarantee that cathodic protection systems function as intended, and stray currents are effectively managed. Our design also simplifies installation, as all precisely matched components are supplied in one package, eliminating sourcing errors.

FAQ: Common Questions on Flange Insulation Kits

Q1: Can I use just an insulating gasket without the sleeves and washers?

No, using only an insulating gasket is highly ineffective and essentially defeats the purpose. Without insulating sleeves and washers, the metal bolts create a direct electrical bridge between the two flanges, allowing stray current to flow freely. This will lead to accelerated corrosion at the joint. Complete isolation requires breaking all metallic contact paths, which is only achieved by using the full Flange Insulating Gasket Set.

Q2: How do I select the right material for the insulating components?

Material selection depends on your specific service conditions. Key factors are the temperature, pressure, and chemical media of your pipeline. PTFE is excellent for wide chemical resistance and moderate temperatures. For higher temperatures and pressures, a reinforced epoxy laminate or encapsulated design is preferable. Our technical team at Ningbo Kaxite Sealing Materials Co., Ltd. can assist you in selecting the optimal material combination for your Flange Insulating Gasket Set based on our extensive application experience.

Q3: Are these kits reusable after disassembly for maintenance?

Generally, insulating gaskets and polymeric sleeves/washers are considered single-use components. During torquing, these components compress and mold to the flange surface and bolt. Reusing them can compromise the seal and the integrity of the electrical insulation. We always recommend installing new components during reassembly to ensure guaranteed performance. Our kits are designed to be cost-effective, making replacement the safest and most reliable practice.

Conclusion: The Non-Negotiable Need for a Complete Kit

In conclusion, the inclusion of both gaskets and sleeves in a flange insulation kit is not an option it is an engineering necessity. Partial insulation is functionally equivalent to no insulation when it comes to combating electrolytic corrosion. The seamless, 360-degree barrier provided by a properly designed Flange Insulating Gasket Set is the only proven method to ensure long-term system protection and safety. Our dedication at our factory is to deliver this complete protection reliably. For engineers and specifiers seeking assurance against costly corrosion failures, specifying a full kit from a trusted manufacturer like Ningbo Kaxite Sealing Materials Co., Ltd. is a critical decision. It represents a small investment that safeguards much larger assets, ensuring operational integrity and peace of mind for years to come.
