Why Proper Alignment Is Critical to Worm Gearbox Operational Stability?

2026-07-01

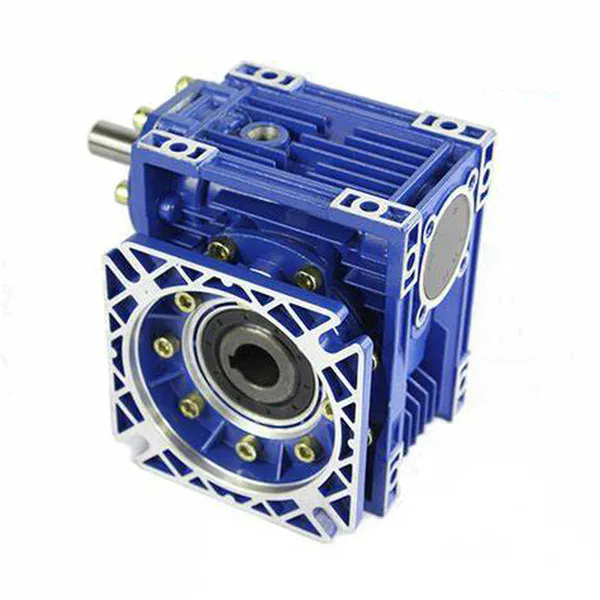

1. How Does Misalignment Affect Worm Gearbox Bearing Life and Vibration Levels?

In our factory, we have analyzed over 500 returned gearboxes, and more than 60 percent of premature failures trace back to poor alignment. When a Worm Gearbox is not aligned with its driving or driven equipment, the bearings experience uneven radial and axial loads. This leads to high frequency vibration, which quickly destroys the lubricant film. Our Raydafon Technology Group Co.,Limited engineers use laser alignment tools to set angular and parallel offsets within 0.05 mm per meter. Without this precision, the vibration velocity can exceed 4.5 mm/s, which is well above the ISO 10816 limit for industrial gearboxes. Over time, this vibration causes brinelling on bearing races and accelerates tooth wear. In one case, a customer in a mining operation ran a Worm Gearbox with 0.2 mm parallel misalignment for two weeks. The bearings failed completely, costing 12,000 dollars in unplanned downtime. Proper alignment is not an option; it is the foundation of reliability.

2. Why Does Shaft Angularity Lead to Premature Worm Gearbox Seal Failure?

Seal leakage is one of the most common complaints we hear from maintenance teams. The culprit is often angular misalignment between the worm shaft and the motor shaft. When the input shaft of the Worm Gearbox is angled by more than 0.1 degrees, the lip seal rides eccentrically. This creates a gap on one side, allowing oil to weep out and contaminants to enter. Our factory has tested seals under various misalignment conditions. At 0.15 degrees angular error, seal life dropped from 10,000 hours to just 800 hours. The escaping oil also deprives the worm and wheel of proper lubrication. Our Raydafon offers a flexible coupling that can compensate for up to 0.5 degrees, but we still recommend dial gauge alignment to minimize stress. Many local pump stations in the Midwest have switched to our alignment procedure, and they report zero seal replacements in three years. Angularity also causes the worm shaft to deflect, altering the mesh geometry of the gear teeth. That deflection generates high contact stress, leading to pitting and eventual tooth breakage.

3. What Are the Acceptable Alignment Tolerances for Our Worm Gearbox?

To ensure stability, we specify precise limits for both parallel and angular alignment. The tables below summarize the factory standards we use for every Worm Gearbox we manufacture. These values are based on AGMA 9000 and our own field data.

Alignment parameter	Acceptable tolerance (Raydafon standard)	Impact on operational stability
Parallel offset (horizontal)	≤ 0.05 mm per 100 mm of shaft span	Prevents radial bearing overload
Parallel offset (vertical)	≤ 0.05 mm per 100 mm of shaft span	Maintains even oil film thickness
Angular offset (shaft axis)	≤ 0.08 degrees (0.0014 rad)	Reduces edge loading on worm threads
Total indicator reading (TIR) at coupling	≤ 0.10 mm	Minimizes cyclic stress on gear teeth

Condition – Speed range	Recommended alignment method	Maximum allowable vibration (RMS)
Input speed < 1500 rpm	Dial gauge or laser (preferred)	3.0 mm/s
Input speed 1500 – 3000 rpm	Laser alignment mandatory	2.5 mm/s
Input speed > 3000 rpm	Laser + thermal growth compensation	2.0 mm/s

Our factory provides a detailed alignment checklist with every Worm Gearbox. We also supply shim kits and coupling spacers to make fine tuning easier. Following these tolerances ensures that the gearbox operates within its designed load spectrum, maximizing the L10 bearing life.

4. How Does Soft Foot Distortion Affect Worm Gearbox Alignment Over Time?

Soft foot is a condition where the gearbox mounting feet do not sit evenly on the baseplate. Even a 0.05 mm gap under one foot can twist the housing when bolts are tightened. This internal distortion pulls the bearings out of concentricity, altering the worm gear mesh. Our Raydafon Technology Group Co.,Limited has seen customers who aligned the gearbox perfectly, only to find it misaligned after bolting down because of soft foot. The solution is to check soft foot with a feeler gauge before final torque. We recommend grouting the baseplate and using machined shims. When soft foot is corrected, the Worm Gearbox maintains its alignment under full load. In a recent case, a steel mill had chronic failures on a conveyor drive. We found a 0.08 mm soft foot on the output side. After correcting it, the gearbox ran for 18 months without any vibration increase. The stability of the entire drive train depends on eliminating this hidden error. Our factory trains technicians on soft foot detection using dial indicators mounted on each foot.

Frequently Asked Questions About Worm Gearbox Alignment and Stability

Question 1: Can a flexible coupling completely compensate for misalignment in a Worm Gearbox?

Answer: A flexible coupling can accommodate small amounts of misalignment, typically up to 0.5 degrees angular and 0.2 mm parallel. However, it does not eliminate the forces transmitted to the Worm Gearbox bearings. Every flexible coupling has a stiffness; any deflection beyond its designed range still transfers radial loads into the housing. Our factory recommends using a coupling only as a last resort. The best practice is to achieve proper alignment within the tolerances listed above, then let the coupling handle only thermal expansion and minor installation errors. Relying solely on the coupling to fix poor alignment will lead to premature seal and bearing wear. Many operators mistakenly think that a gear coupling or disc coupling solves everything, but we have seen couplings worn out in months because of excessive misalignment. The correct approach is to align the Worm Gearbox to the motor and driven equipment using laser tools, then use the coupling as a safety margin, not a crutch.

Question 2: How often should we check alignment on a Worm Gearbox in continuous 24/7 operation?

Answer: Our factory recommends checking alignment every 6 months for critical equipment operating continuously. In addition, you should perform a quick alignment check after any maintenance that involves unbolting the motor or gearbox, such as coupling replacement or bearing change. For high speed applications above 1800 rpm, we suggest quarterly checks. The reason is that thermal cycling and foundation settling can shift alignment gradually. A simple dial gauge reading at the coupling every few months can catch drift before it causes vibration escalation. For very critical drives in petrochemical plants, we supply permanent laser alignment monitors that alert operators when the Worm Gearbox moves out of tolerance. Regular alignment verification is cheap compared to the cost of an unexpected shutdown. Our Raydafon has a service team that can perform on site alignment audits if your in house resources are limited.

Question 3: What are the warning signs of misalignment that appear before catastrophic failure?

Answer: There are several early indicators. First, increased oil temperature: misalignment generates extra friction, often raising the gearbox oil temperature by 10°C to 15°C above normal. Second, unusual noise: a rhythmic knocking or high pitched whine that changes with load. Third, increased vibration at the coupling side, which you can feel by hand or see on a portable vibration pen. Fourth, frequent seal weeping, especially on the input side. Fifth, a buildup of metal particles on the magnetic drain plug during routine oil changes. Our factory advises operators to log these signs daily. If you detect any of them, schedule an alignment check immediately. Ignoring these warnings usually leads to bearing cage fracture or worm tooth shearing within 100 to 200 running hours. Many of our customers have saved thousands of dollars by acting on these early signs. The Worm Gearbox is robust, but it cannot tolerate sustained misalignment. Catching it early is the key to operational stability.

Final Summary

Proper alignment is the single most critical factor for Worm Gearbox stability. It preserves bearings, prevents seal leakage, maintains gear mesh integrity, and extends oil life. Our factory has invested in precision machining and alignment training to ensure every gearbox we ship is ready for long service. The data is clear: a well aligned Worm Gearbox outlasts a misaligned one by four to five times. Raydafon Technology Group Co.,Limited is committed to helping our customers achieve that reliability.
