China Grade 100 Connecting Link / Connector

Product Description

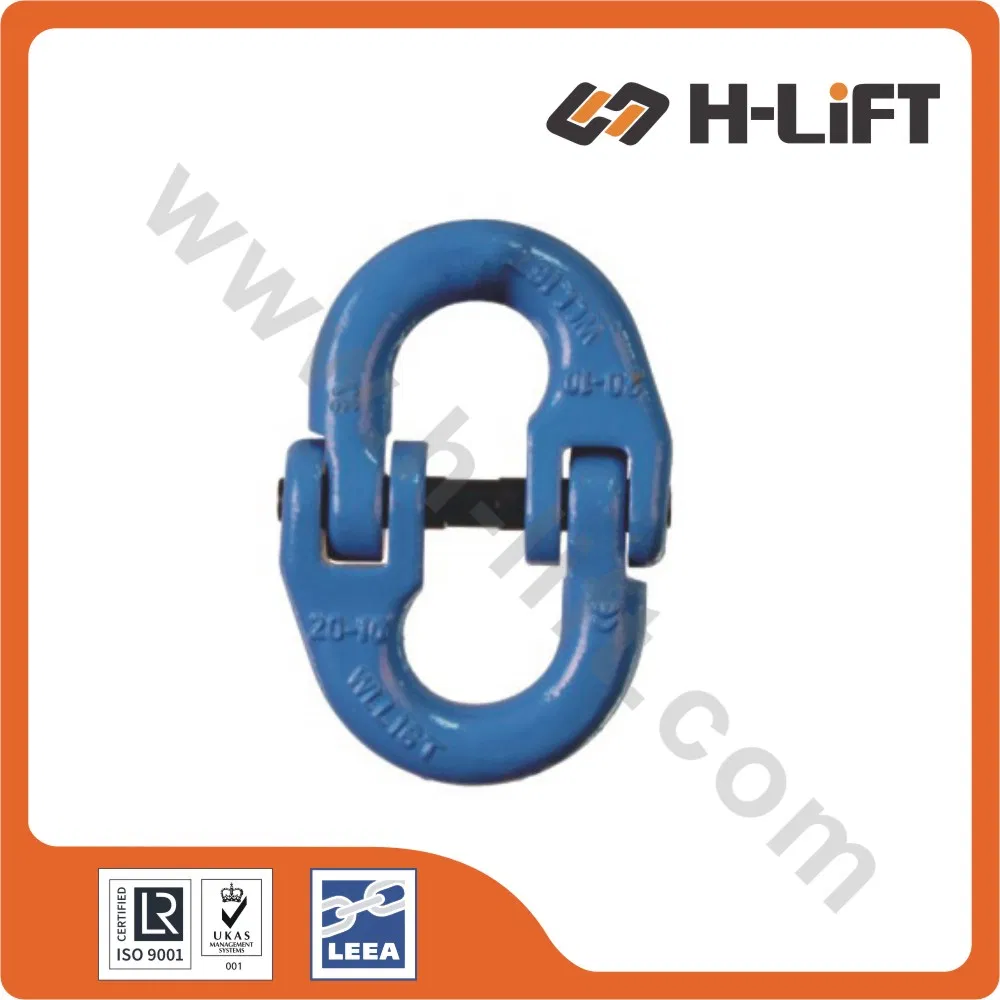

Grade 100 Connecting Link / Connector / Coupling Link

1. To EN1677
2. Materials: Forged Alloy steel (quenched and tempered)
3. Surface treatment: Color-painted, self-colored,
4. B. L= 4 times of WLL
5. Full tracebility
6. Proof tested to 2 ½ Times working load limit
7. Packing: Packed in cartons with plastic bags inside on iron pallets

Item	Chain Size(mm)	WLL(ton)	D(mm)	A(mm)	K(mm)	L(mm)	Weight(kg)
10-CNL-06	6	1.4	7	14	44.5	60	0.11
10-CNL-08	8	2.5	10	18.5	61.5	82.5	0.18
10-CNL-10	10	4	12.6	23	72	97.2	0.34
10-CNL-13	13	6.7	16.5	28	92	125	0.68
10-CNL-16	16	10	20	33.5	1.7	147	1.22
10-CNL-20	20	16	25	42	122	172	2.13
10-CNL-22	22	19	27	48	136	191	3
10-CNL-26	26	26.5	32	61	164	229	5.2
10-CNL-32	32	39.3	40	80	194	279	9.55

Company information:

SINCE 2002
H-Lift, an ISO 9001 certified firm by Lloyd's Register and a member of LEEA(Lifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.
